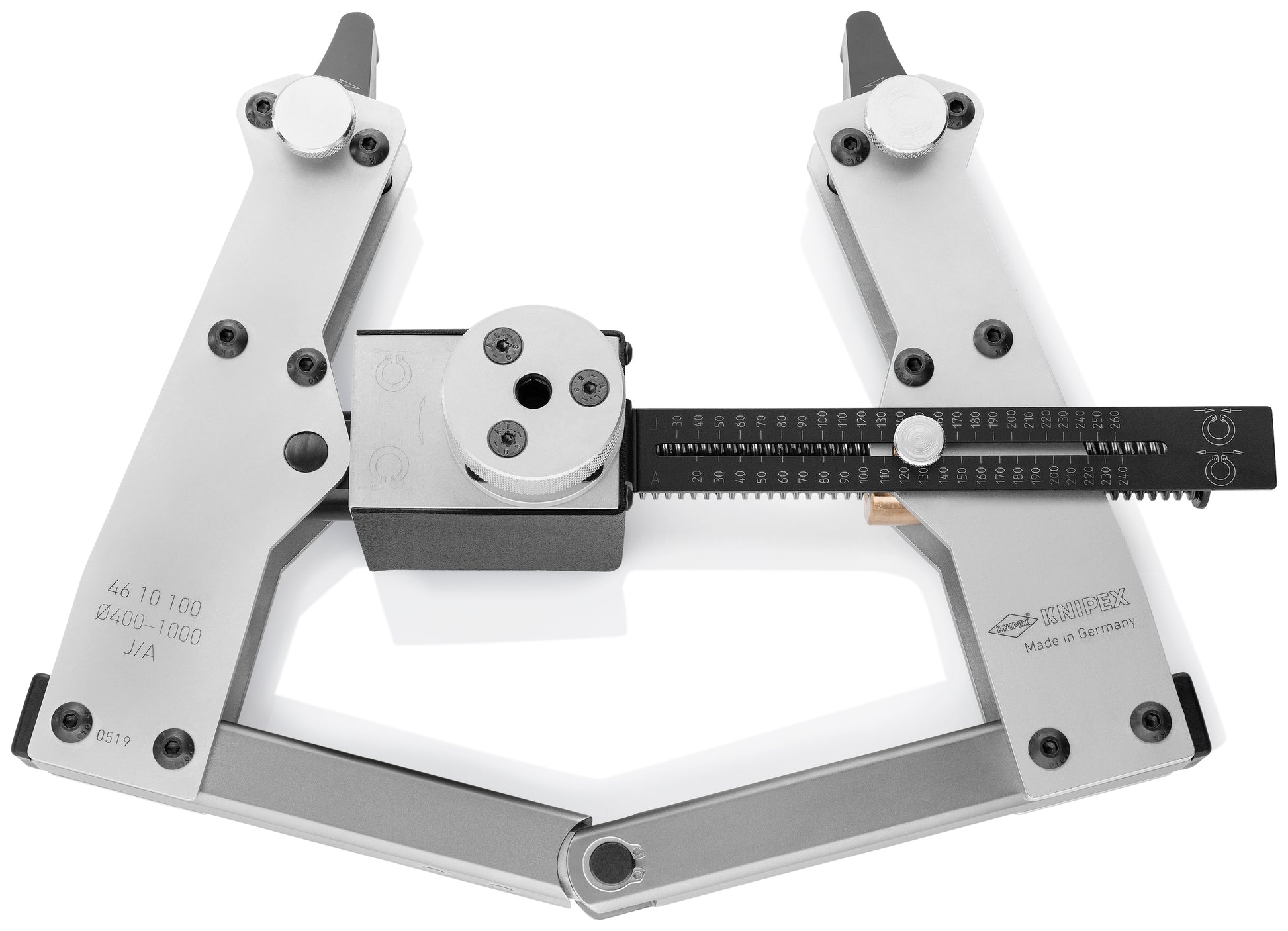

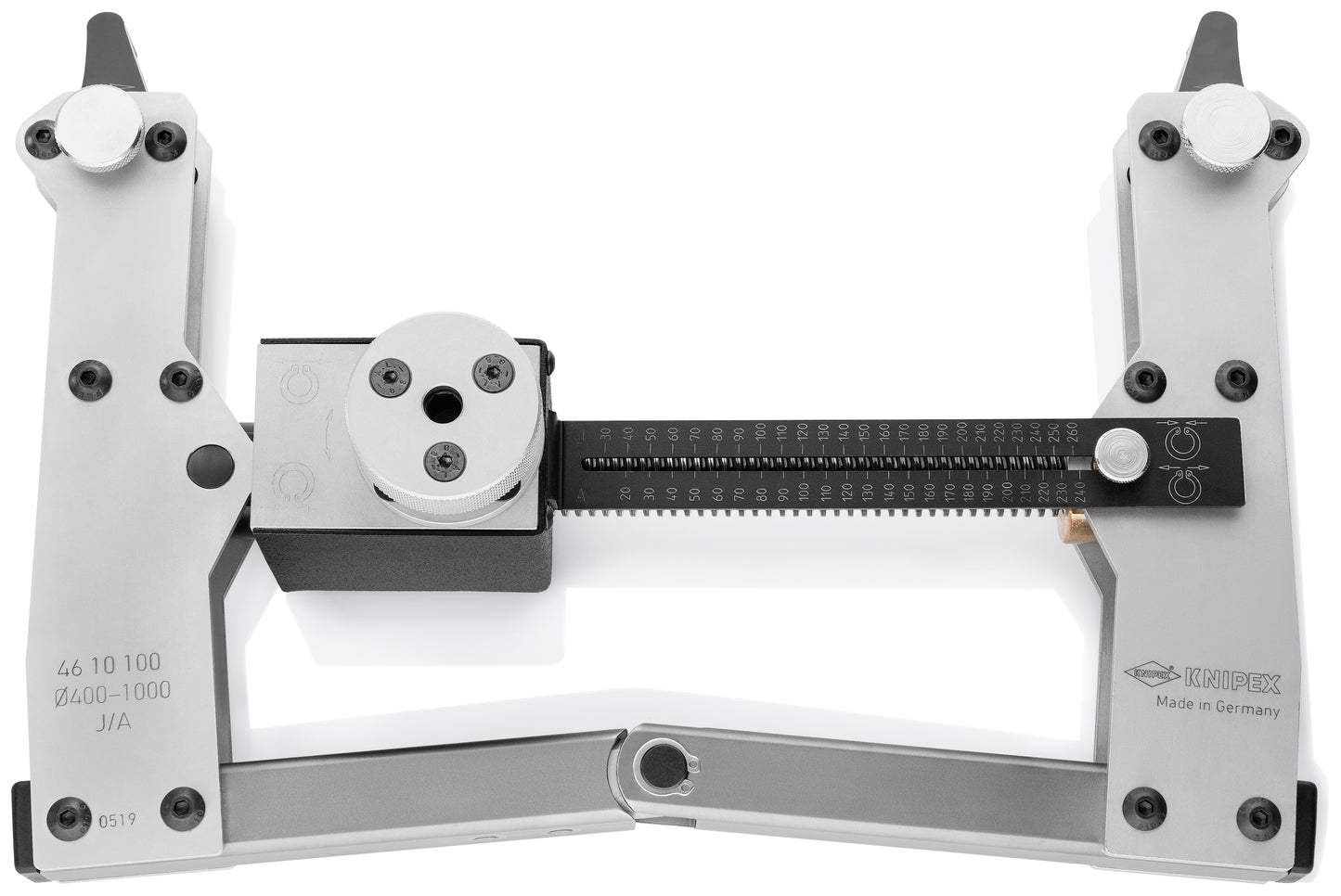

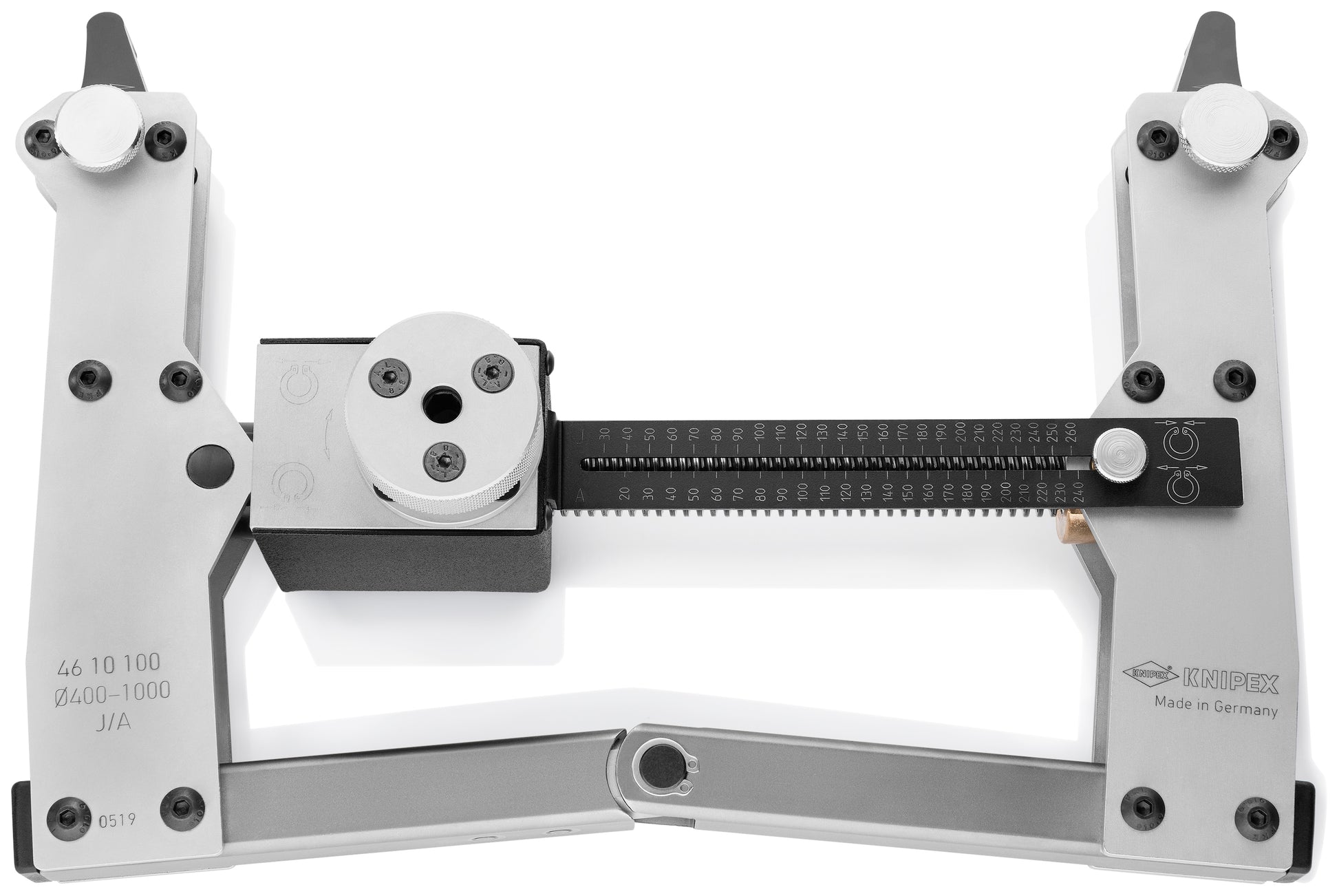

Knipex 46 10 100 Circlip Tool for Internal and External Circlips

Universal usage for large circlips with nominal diameters of 16" to 39 3/8" (400 - 1000 mm)

Features

• Reliable opening and closing of the circlips and holding by self-locking precision spindle drive
• For fitting and removing circlips in one operation
• Circlips are securely held due to short, direct attachment

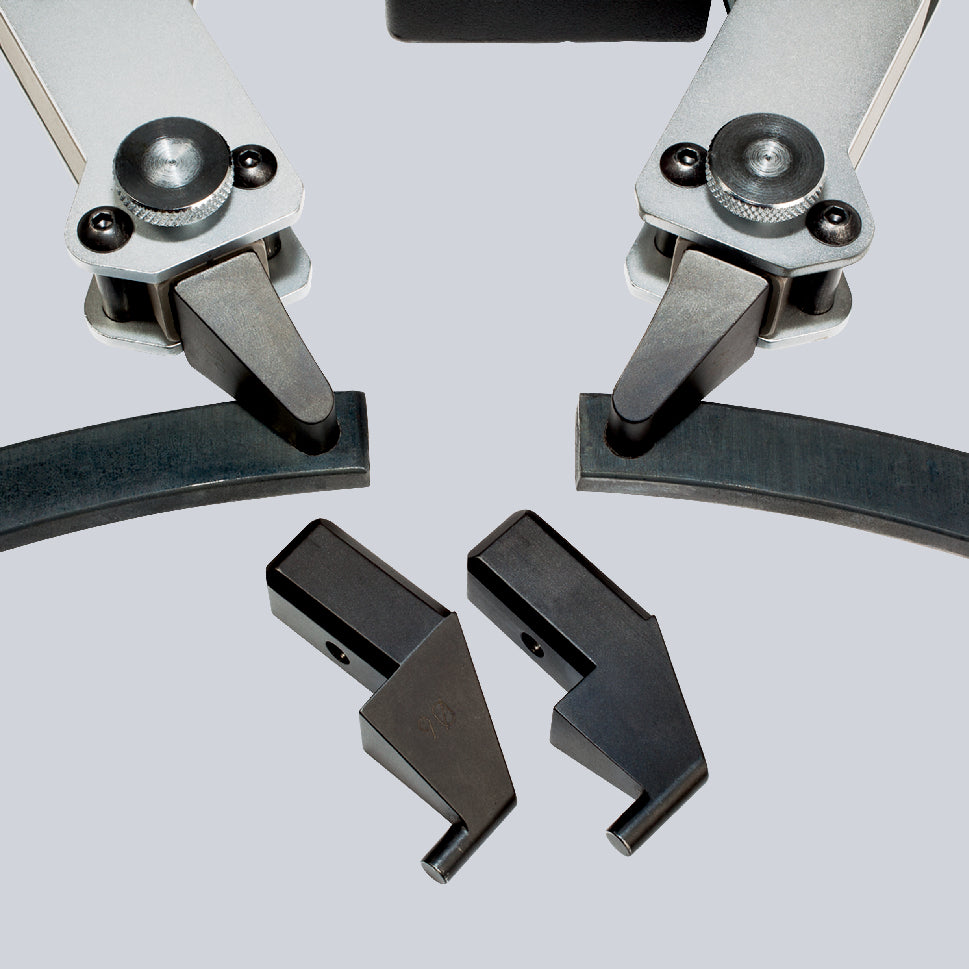

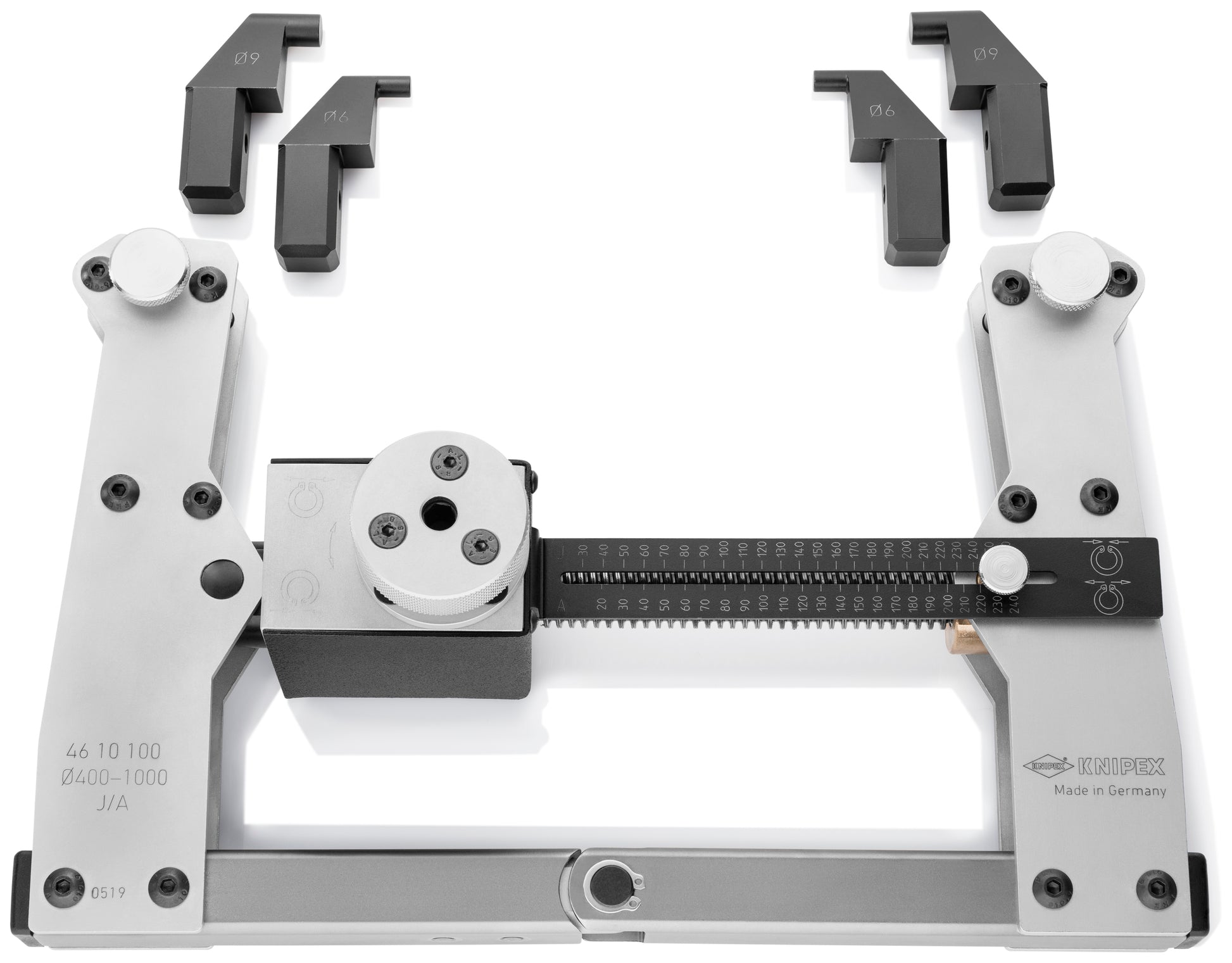

• Replaceable tips with 15/64" (6 mm) and 23/64" (9 mm) diameters, for perfect adaptation to the actuation bores in the circlips

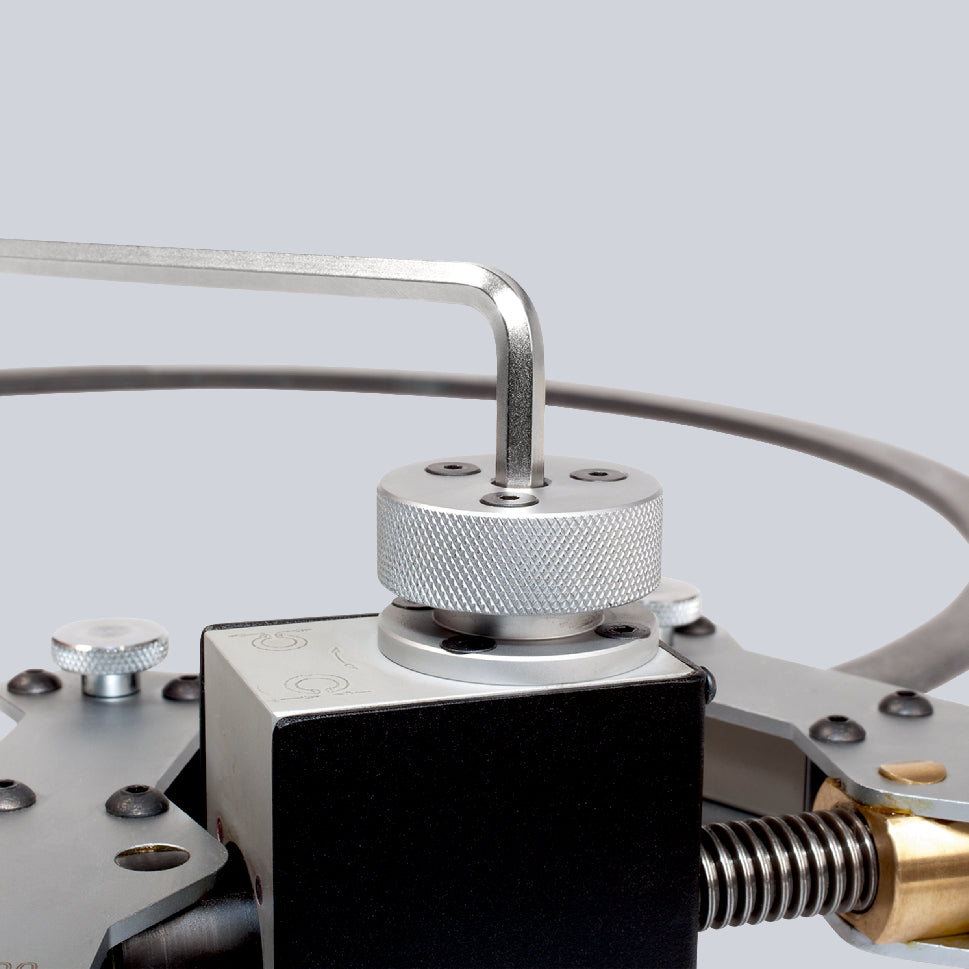

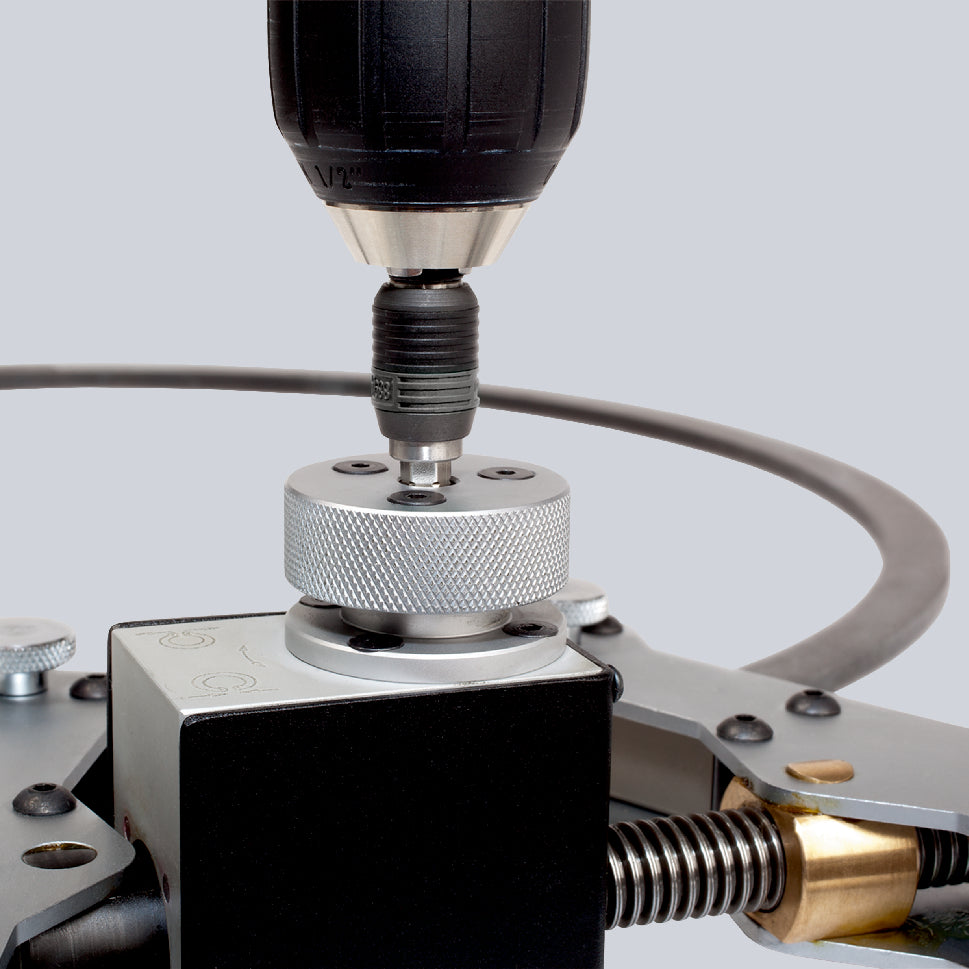

• Optional operation with hexagonal key, ratchet wrench or cordless screwdriver
• Areas of application e.g. wind turbines, tidal power stations, generator construction, hydropower stations, large machine construction (rolling mills, presses), shipbuilding, aerospace - wherever very high forces and torques are transmitted with large shafts and bearings
• Tip material: chrome vanadium electric steel

Specifications

• Manufacturer Part Number: 46 10 100
• Material Type: Chrome vanadium steel, forged, oil-hardened
• 1000V Insulated: No
• Tethered Enabled: false
• Color: Silver
• Nominal Length: 10 3/4"
• Tool Nominal Length: 10.75"
• Tool Length: 10.9"
• Tool Width: 6.8"
• Tool Height: 3.25"
• Tool Weight: 2152 g (4.745 lb)
• Circlip - Internal Bore Size - inches: 15 3/4" to 39 3/8"
• Circlip - External Shaft Size - inches: 16" to 39 3/8"
• UPC: 843221019532
