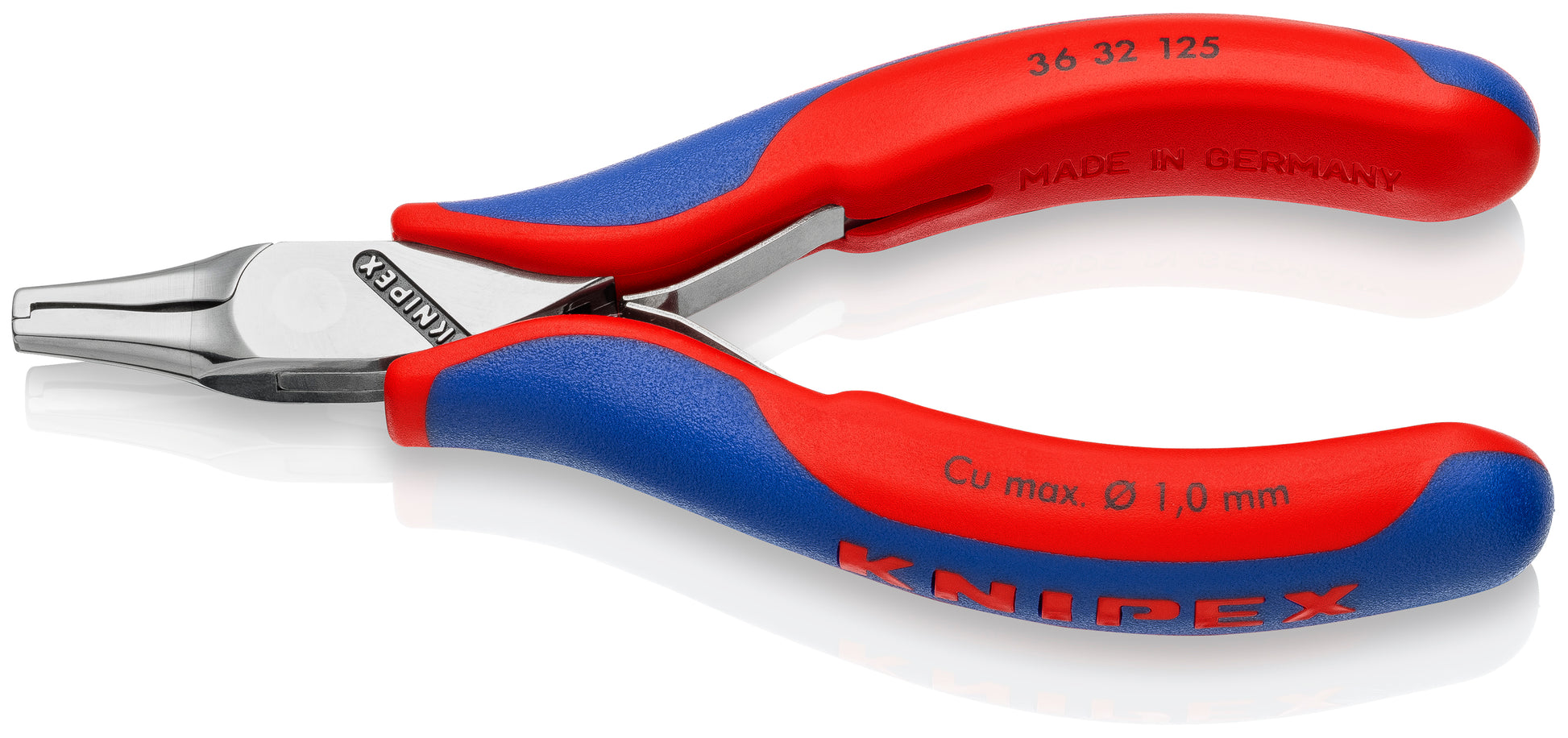

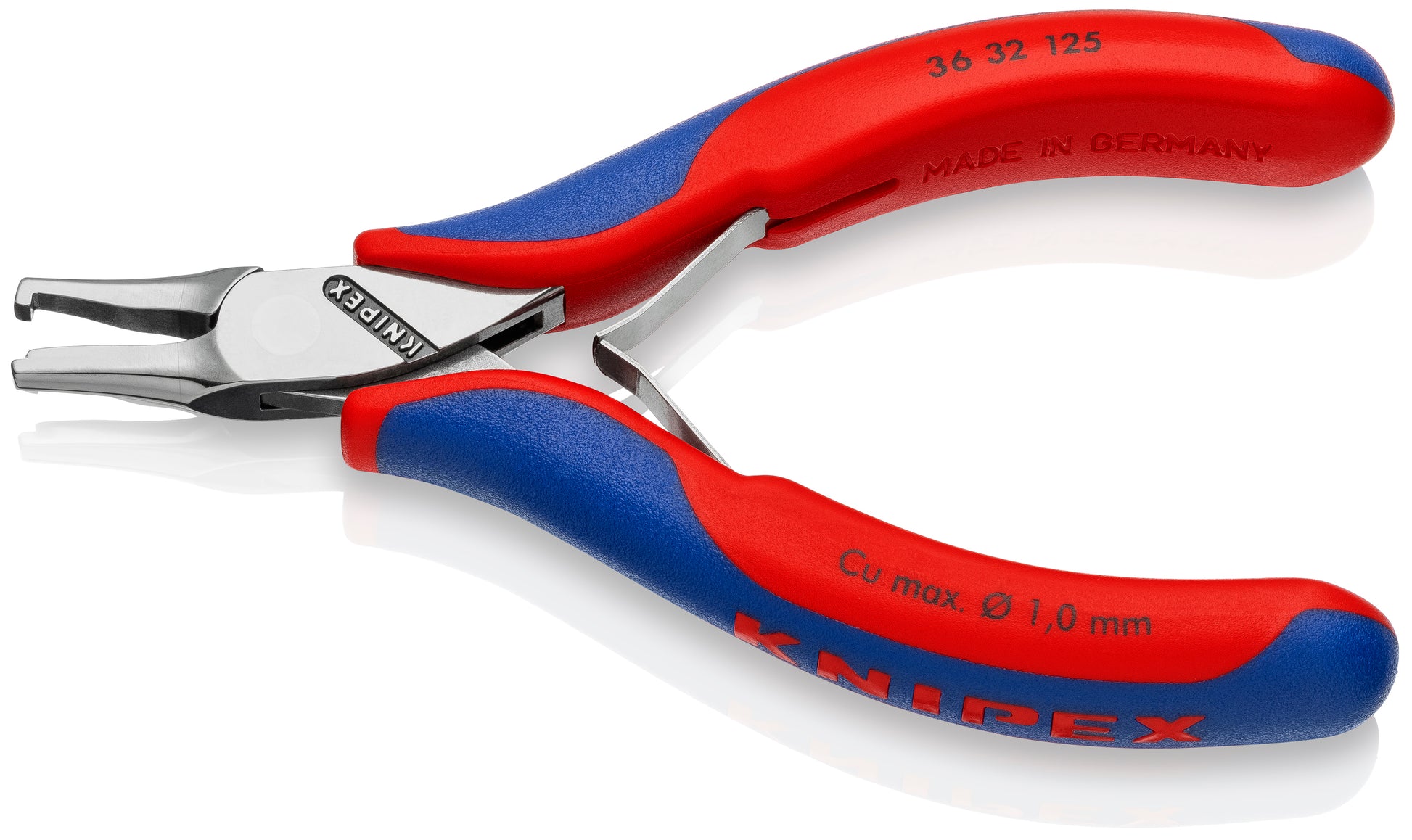

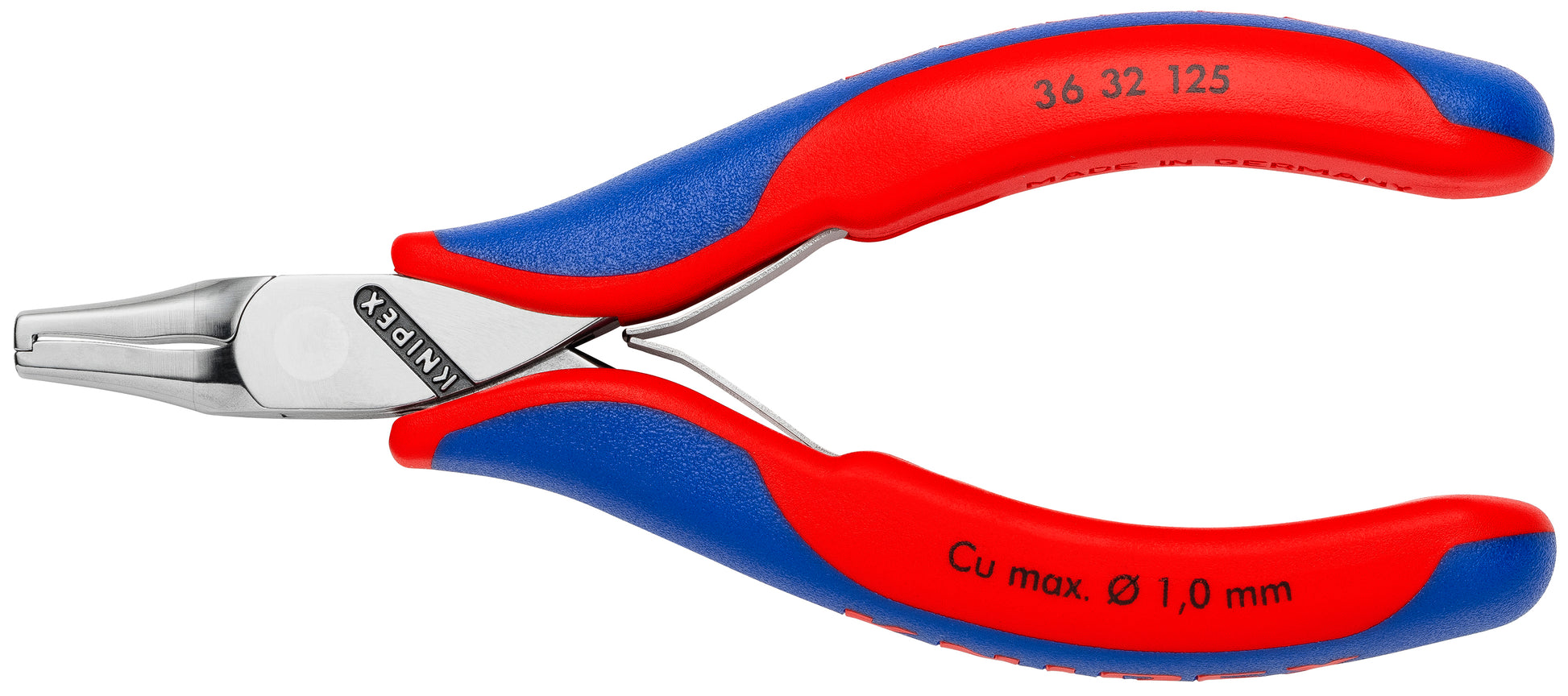

Knipex 36 32 125 Electronics Mounting Pliers

Precision pliers for very fine assembly work and repair work in electronics

Features

• Designed for bending and cutting off wire ends on components
• To crunch and cut wire at 1/16" (1.6 mm) length below the plate
• Smooth gripping surfaces
• Low-friction double spring for gentle and even opening of the pliers
• Precision box joint for greater stability
• For gripping, holding and bending small components
• The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools

Specifications

• Manufacturer Part Number: 36 32 125
• Material Type: Special tool steel, forged, oil-hardened
• Handle Type: Multi-component
• Surface Finish: Polished
• 1000V Insulated: No
• Spring Loaded: Yes
• Tethered Enabled: false
• Color: Red/Blue
• Nominal Length: 5"
• Tool Nominal Length: 5"
• Tool Length: 5.35"
• Tool Width: 2.15"
• Tool Height: 0.85"
• Tool Weight: 95 g (0.21 lb)
• Joint Type: Box-joint
• Handle Length: 3 1/2"
• Jaw Length: 23/32"
• Jaw Width: 29/64"
• Jaw Thickness: 19/64"
• Tip Width: 19/64"
• Tip Thickness: 5/32"
• Cutting Capacity - Soft Wire: 3/64"
• UPC: 843221012182
