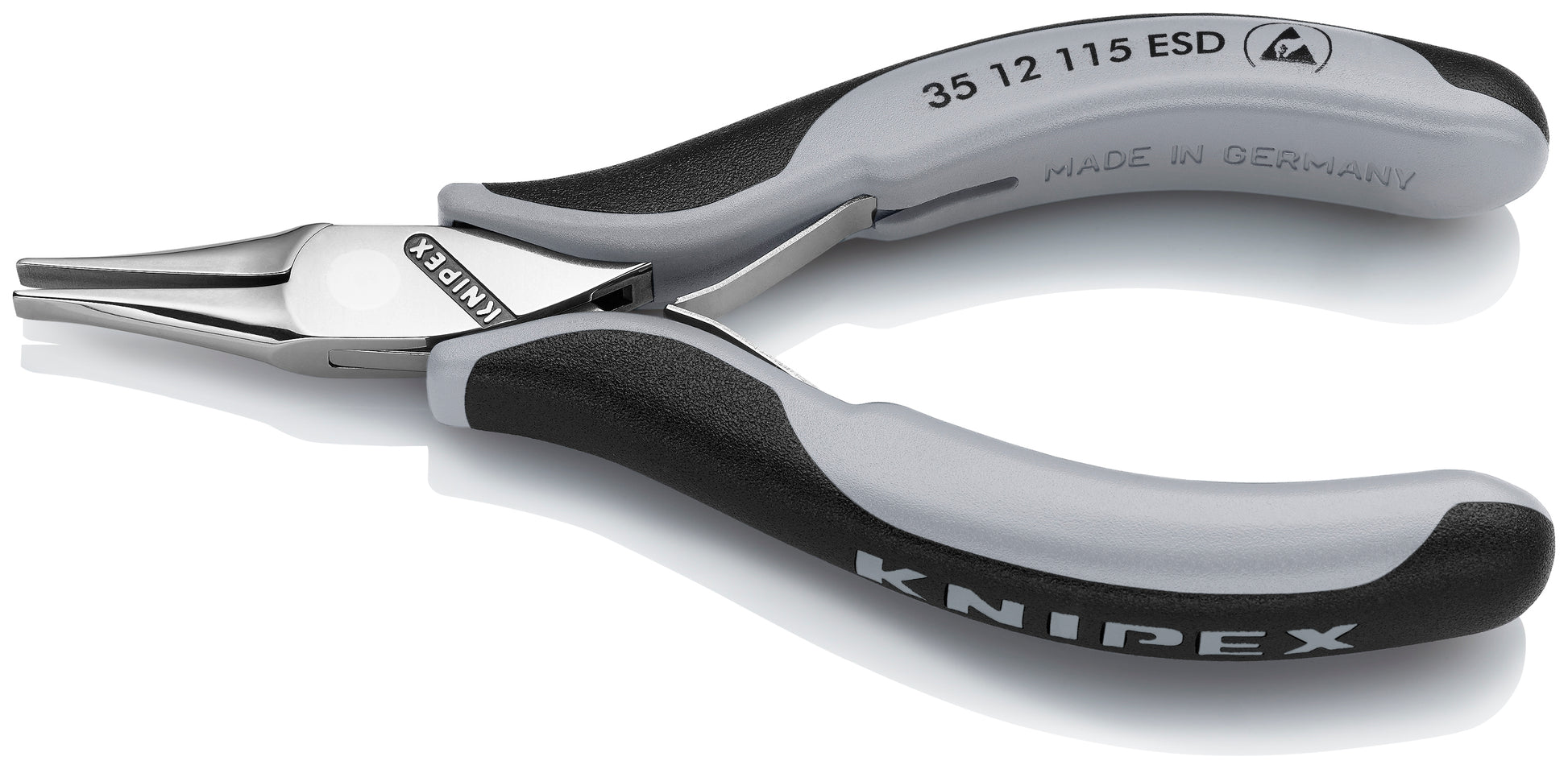

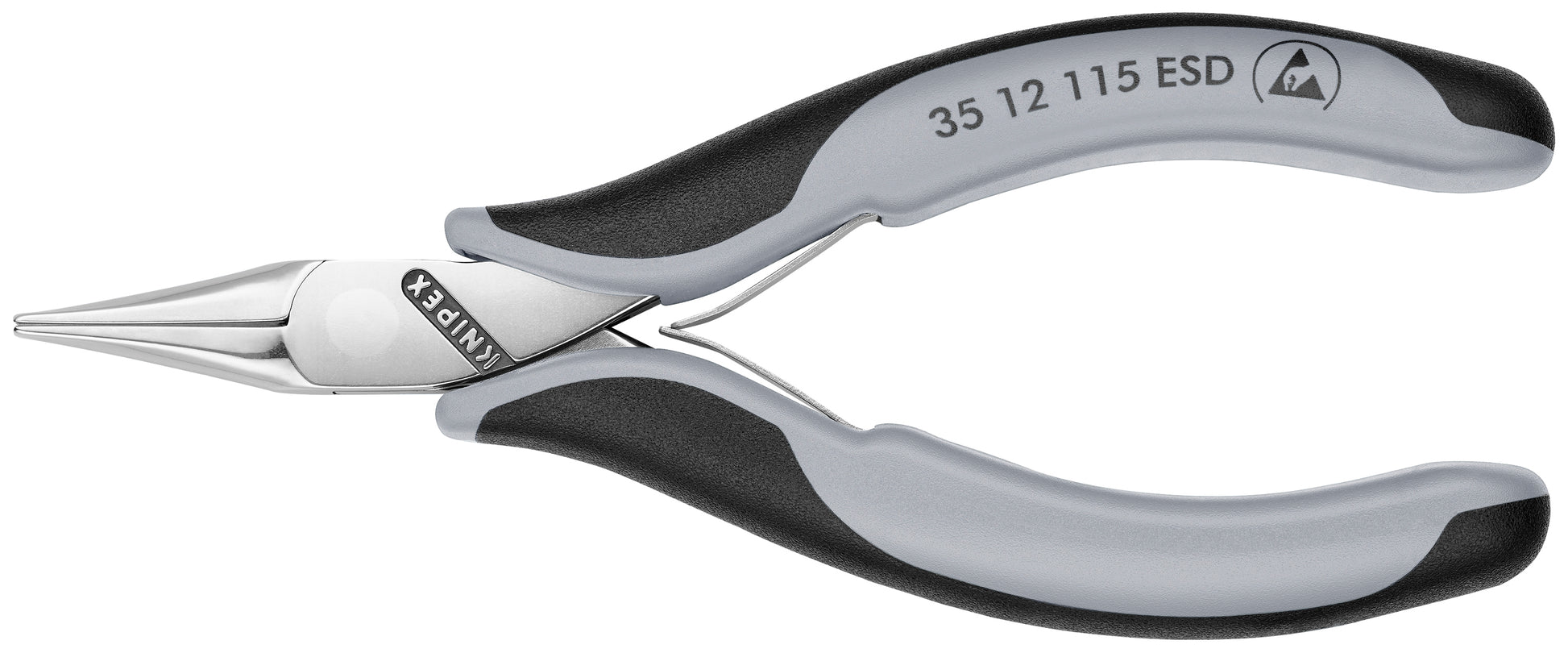

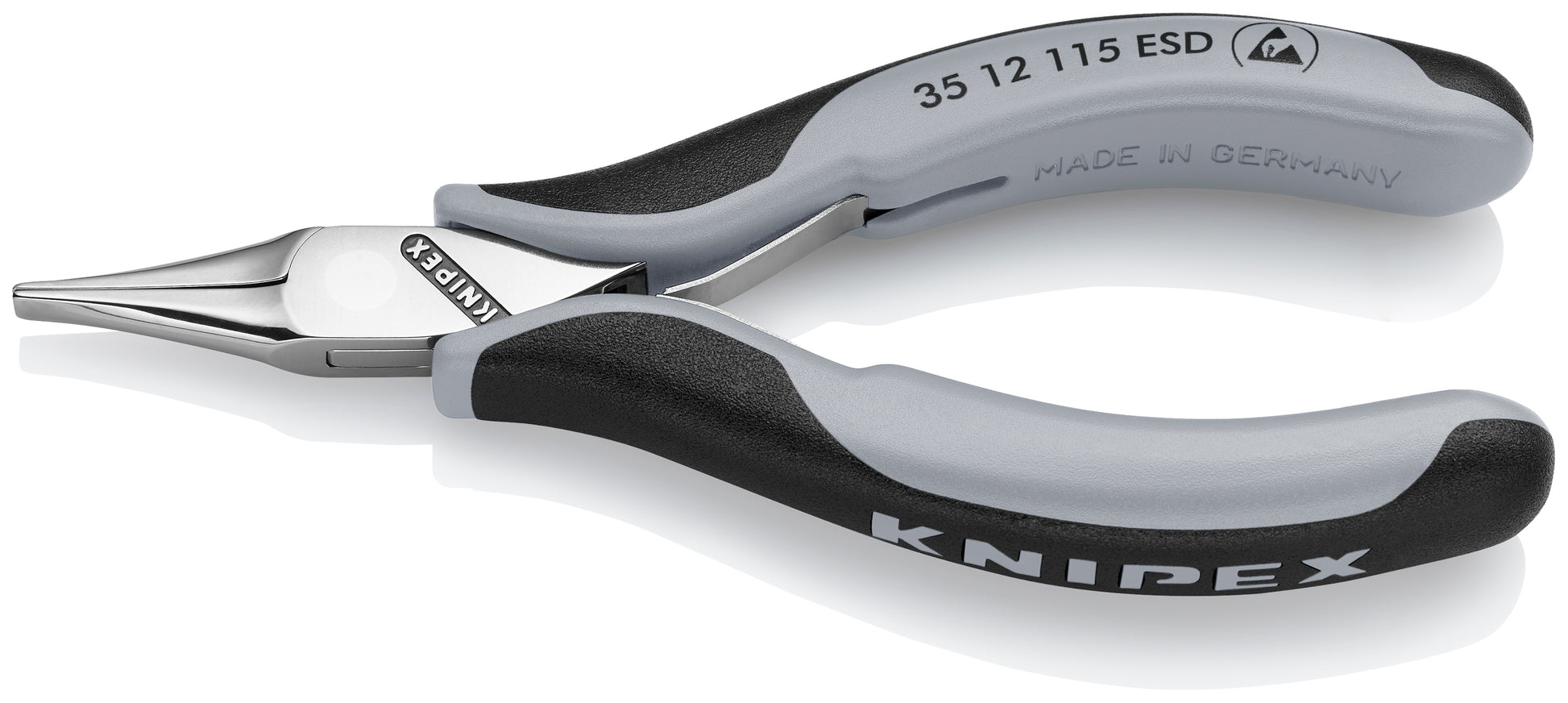

Knipex 35 12 115 ESD Electronics Pliers-Flat Tips, ESD Handles

Precision pliers for ultra fine assembly work

Features

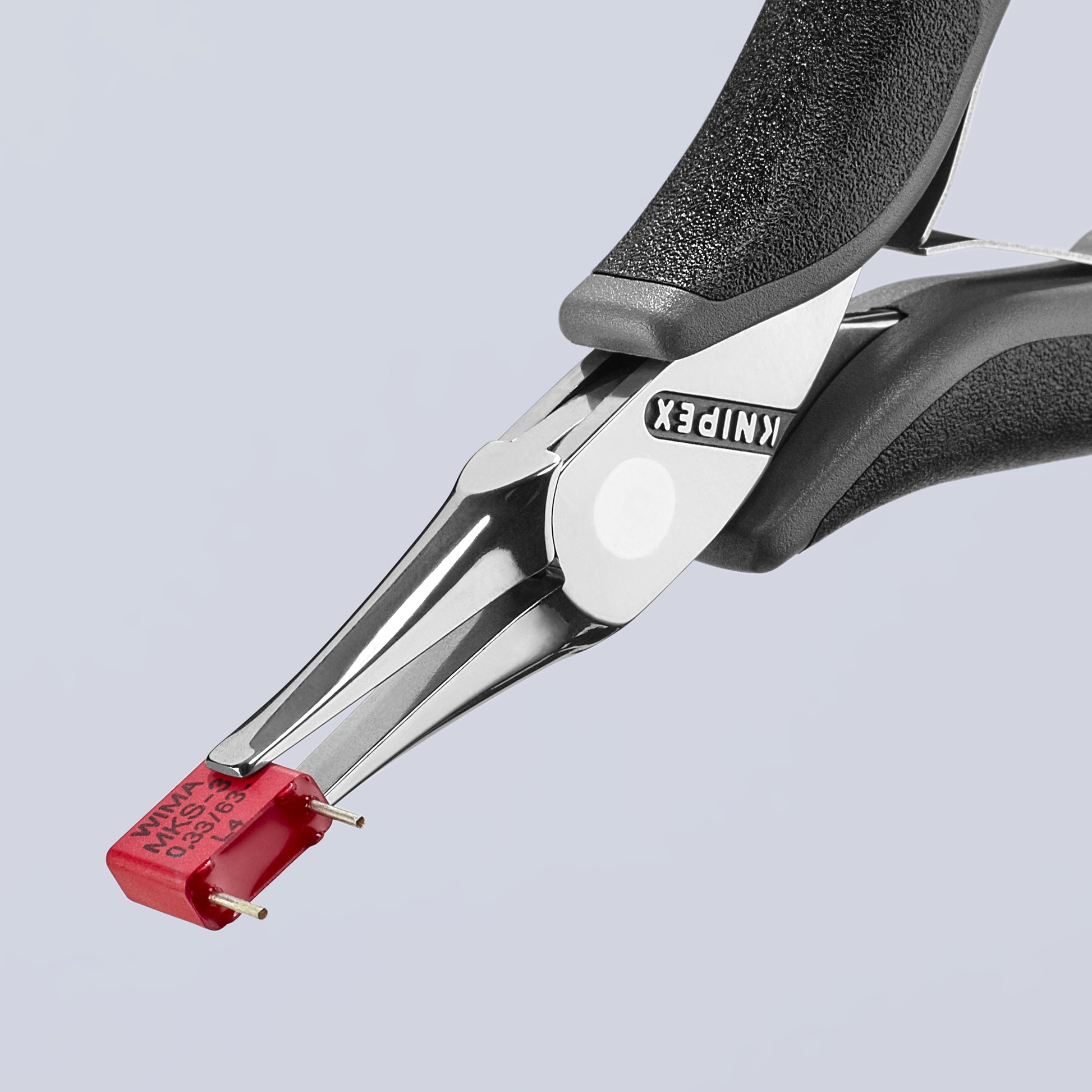

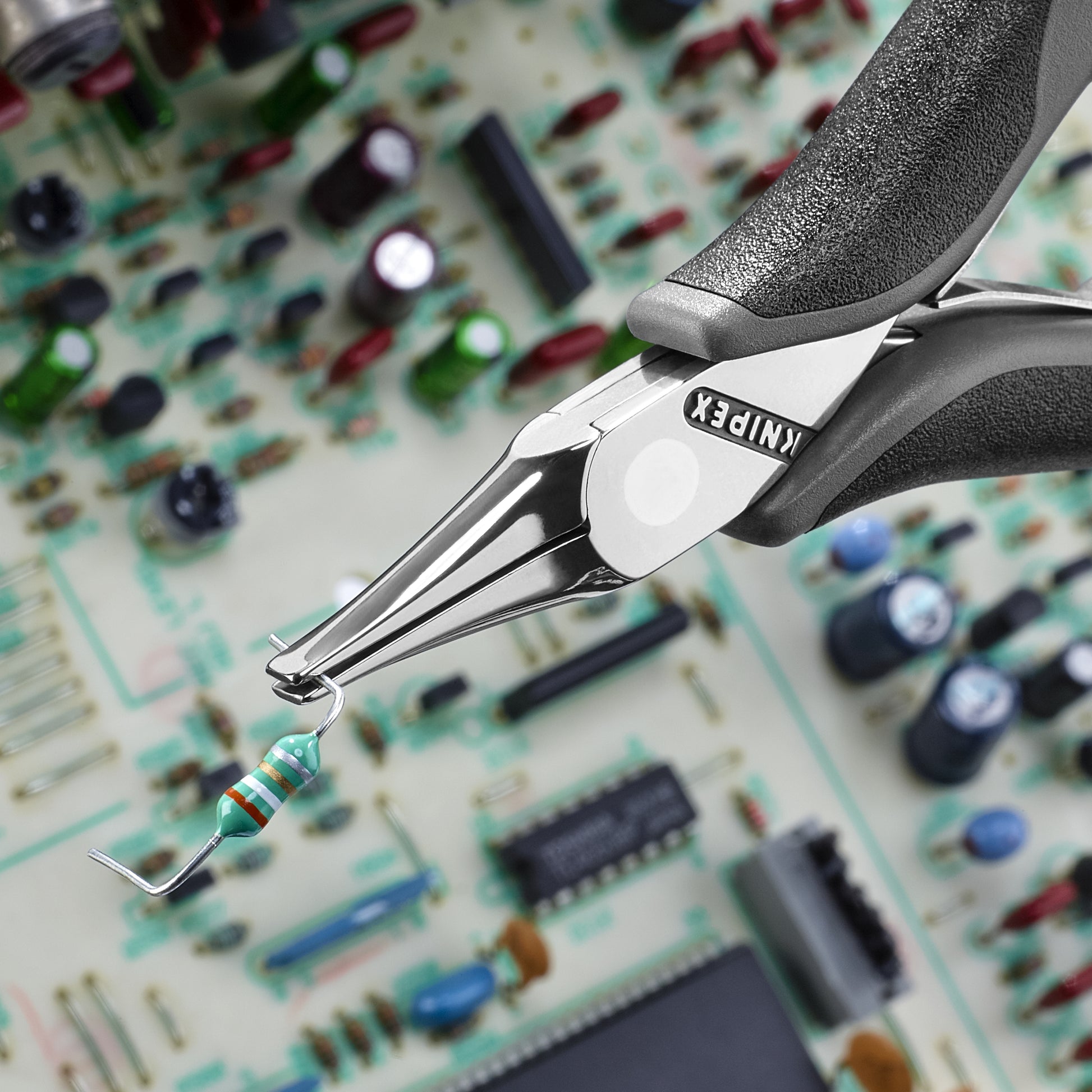

• Designed for gripping, holding and bending small components
• Smooth gripping surfaces and rounded edges prevent damage to components
• Low-friction double spring for gentle and even opening of the pliers
• Box joint design allows for a long life and zero backlash

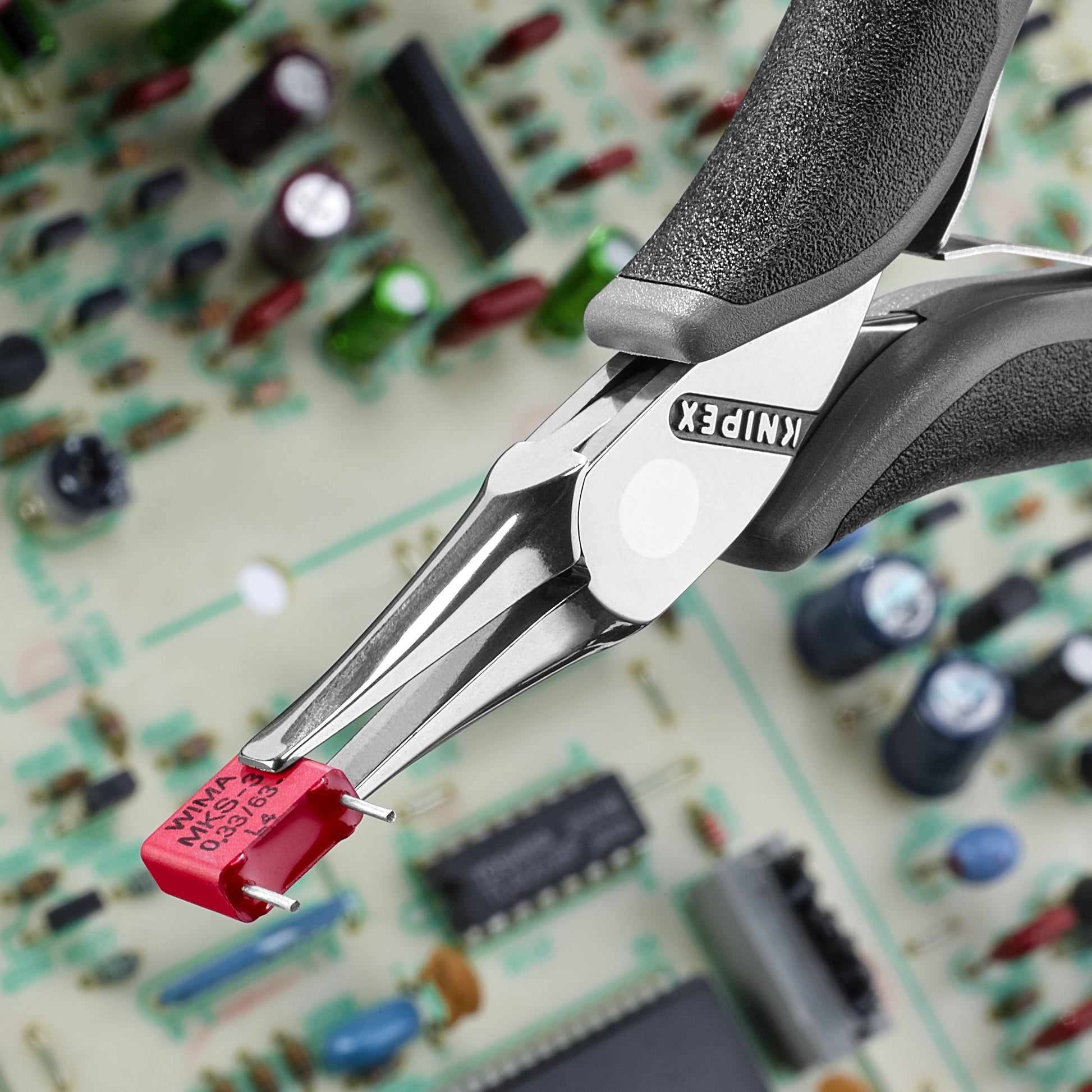

• Used for gripping and handling small electrical parts
• The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
• ESD (electrostatic discharge) handles discharge electrostatic energy through the handles in a gradual and controlled manner which protects components endangered by electrostatic discharge

Specifications

• Manufacturer Part Number: 35 12 115 ESD
• Material Type: Ball Bearing Steel
• Handle Type: ESD multi-component
• Gripping Surface: Smooth
• Surface Finish: Polished
• 1000V Insulated: No
• Spring Loaded: Yes
• Tethered Enabled: false
• ESD Indicator: Yes
• Color: Blue/Gray
• Nominal Length: 4 1/2"
• Tool Nominal Length: 4.5"
• Tool Length: 4.9"
• Tool Width: 2.15"
• Tool Height: 0.85"
• Tool Weight: 73 g (0.16 lb)
• Joint Type: Box-joint
• Handle Length: 3 1/2"
• Jaw Type: Flat, wide
• Jaw Length: 57/64"
• Jaw Width: 3/8"
• Jaw Thickness: 17/64"
• Tip Width: 5/64"
• Tip Thickness: 5/32"
• Set Part Number: 00 20 17
• UPC: 843221020040
