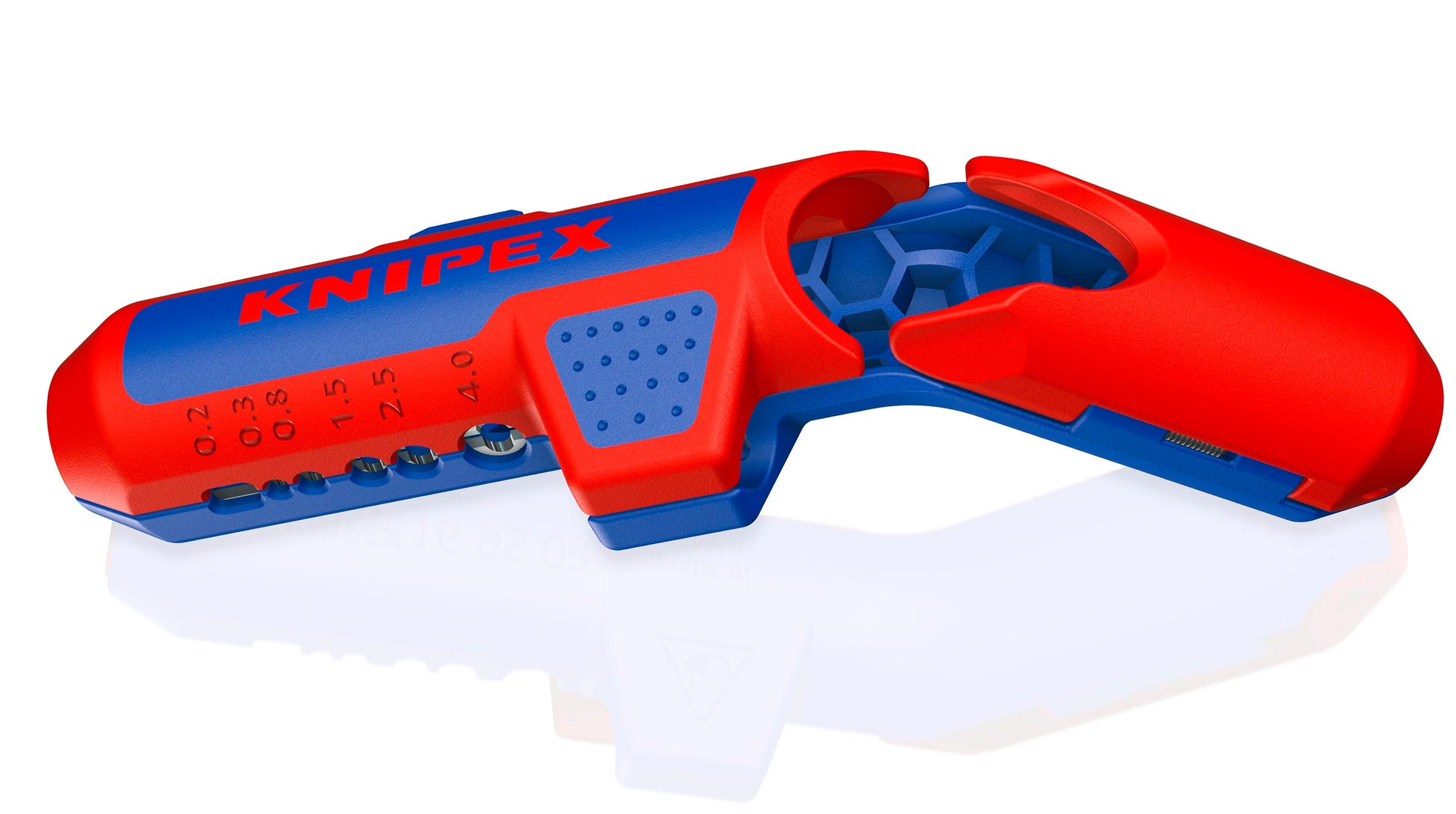

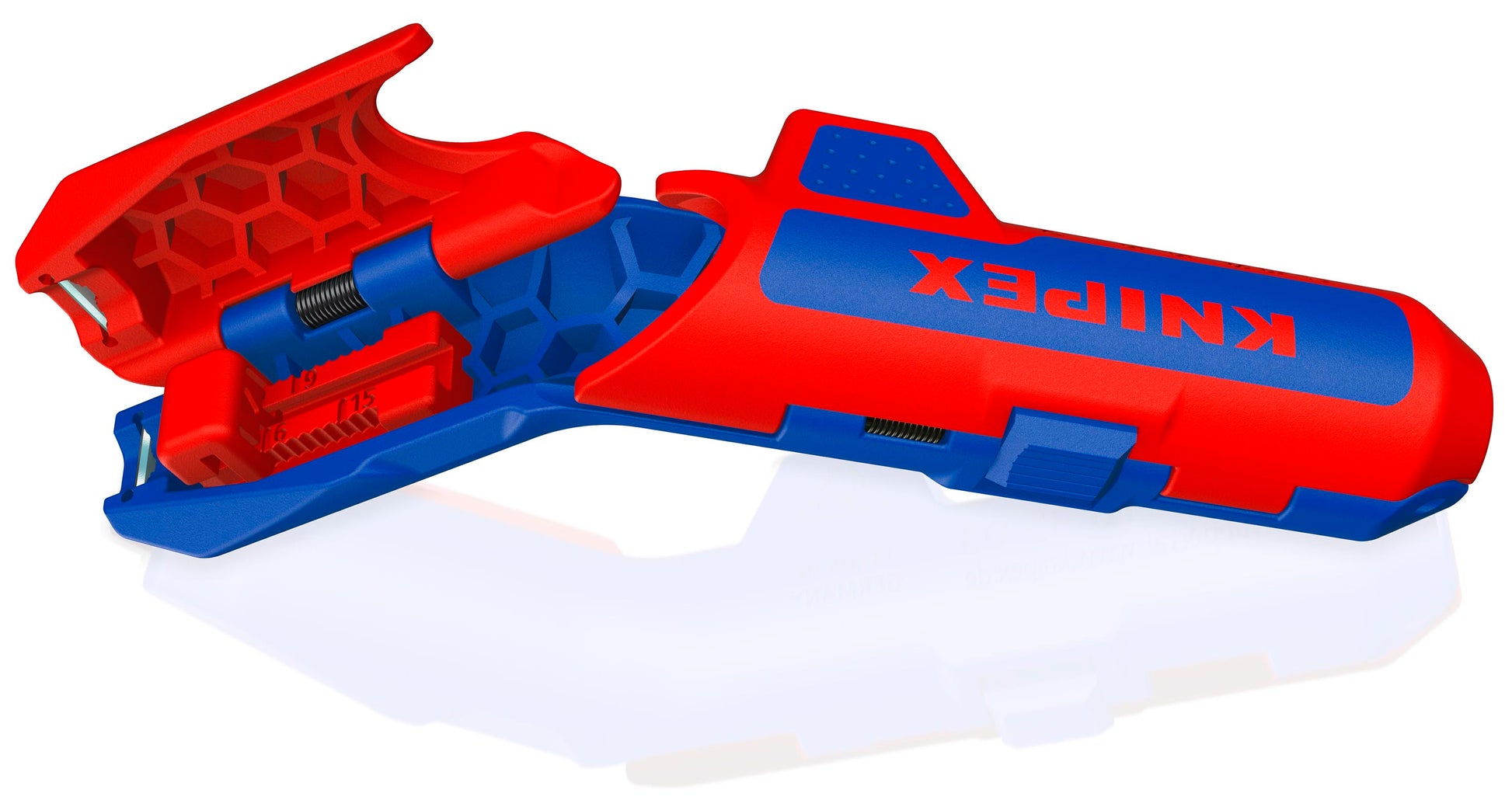

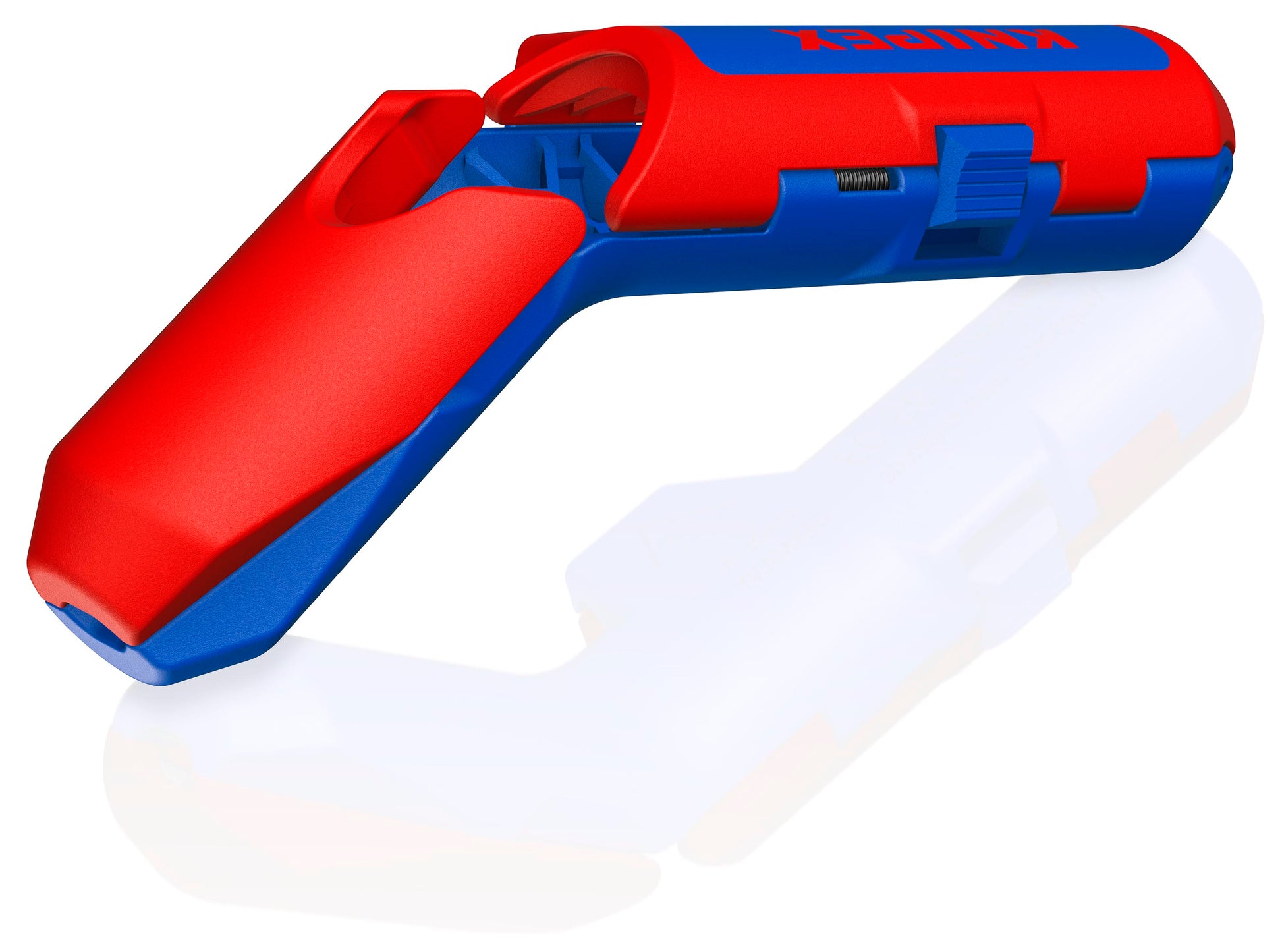

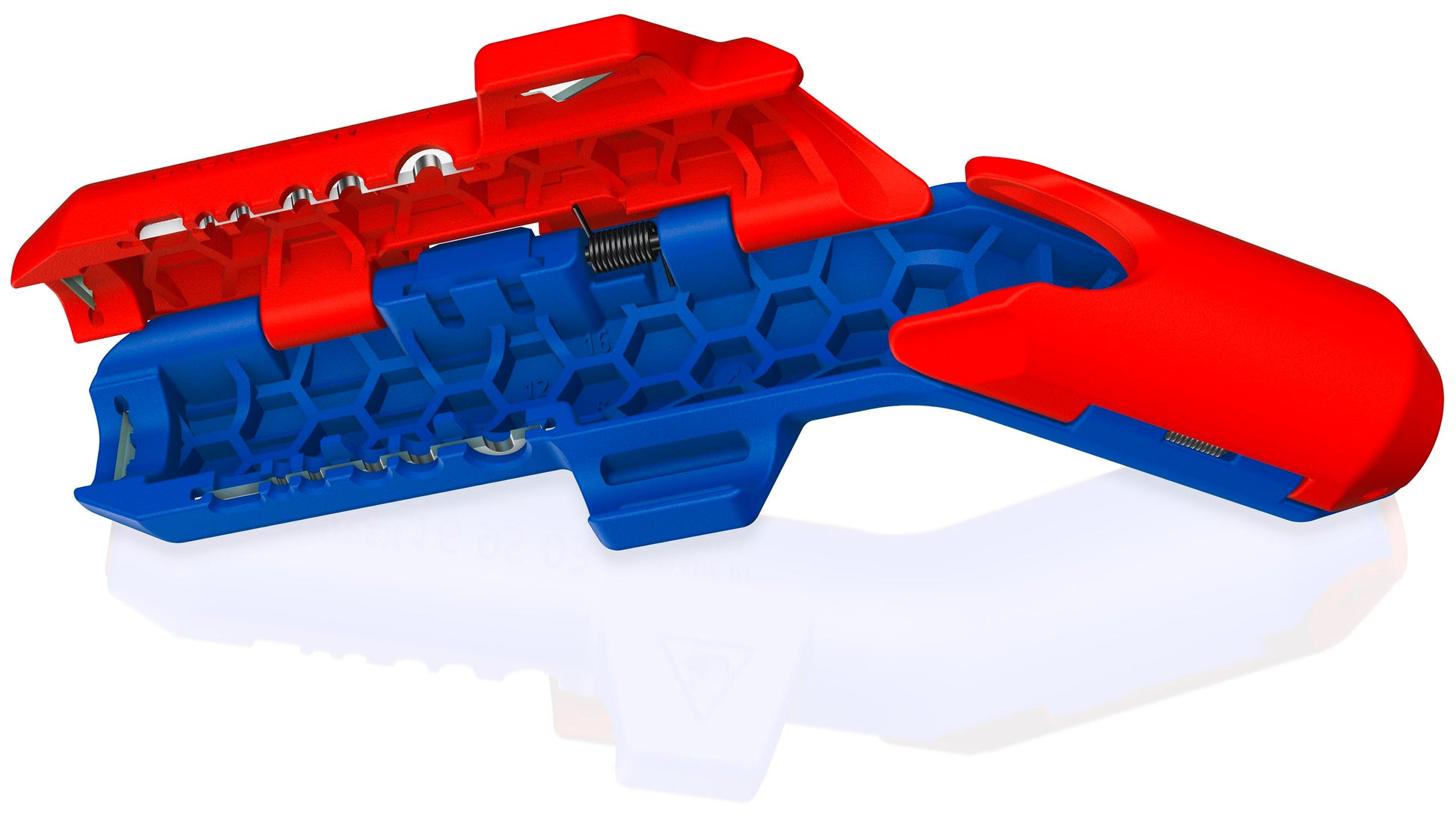

Knipex 16 95 03 SB ErgoStrip® PV

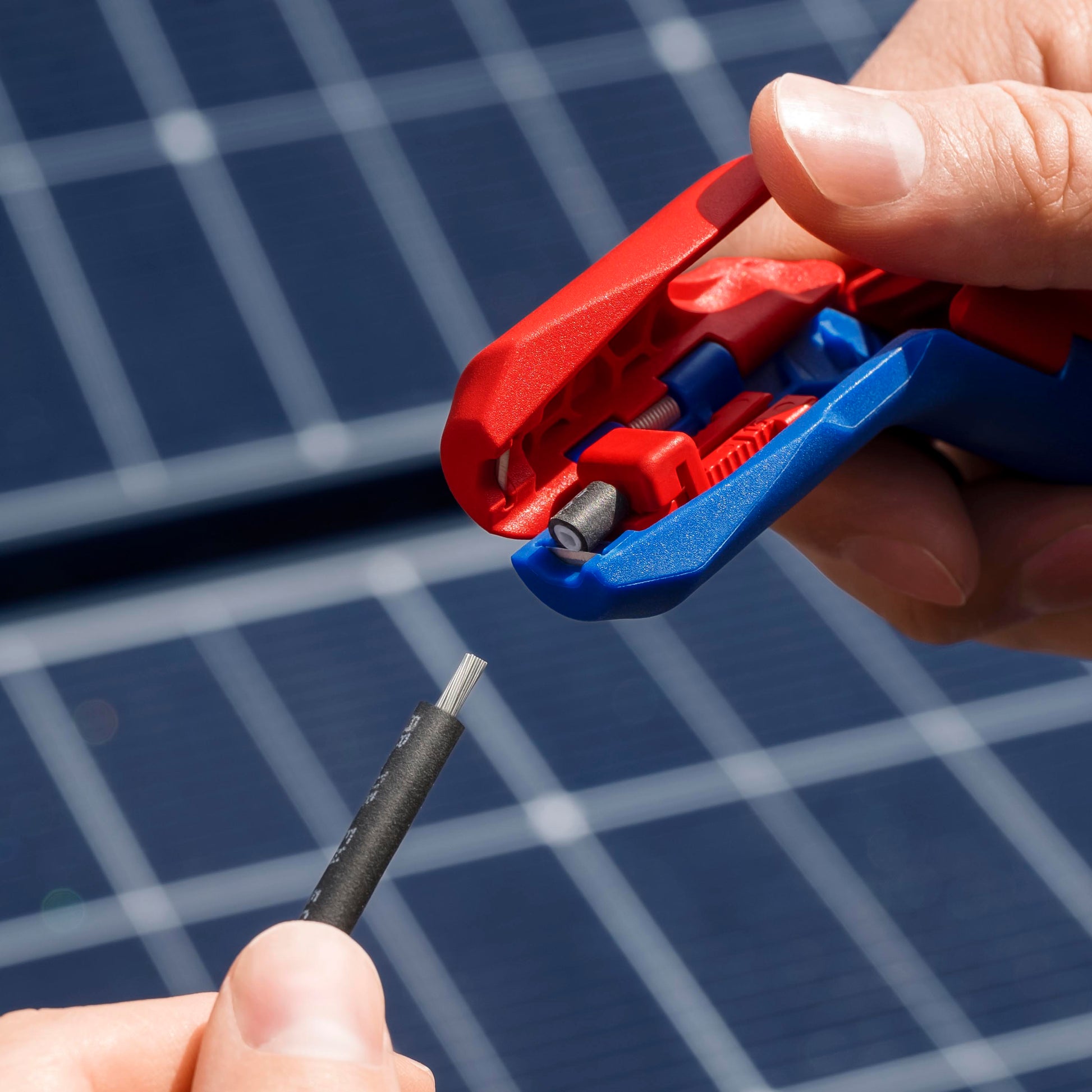

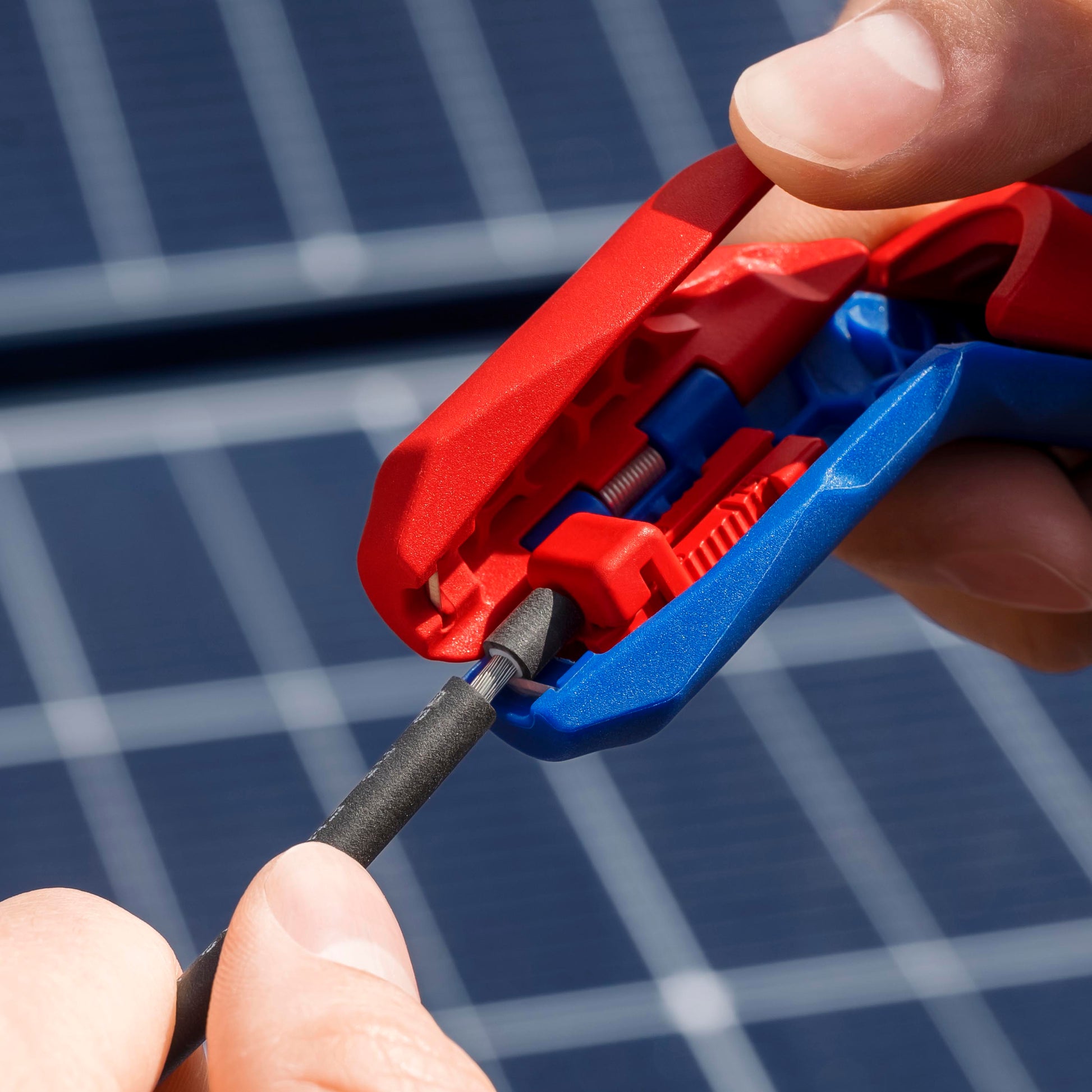

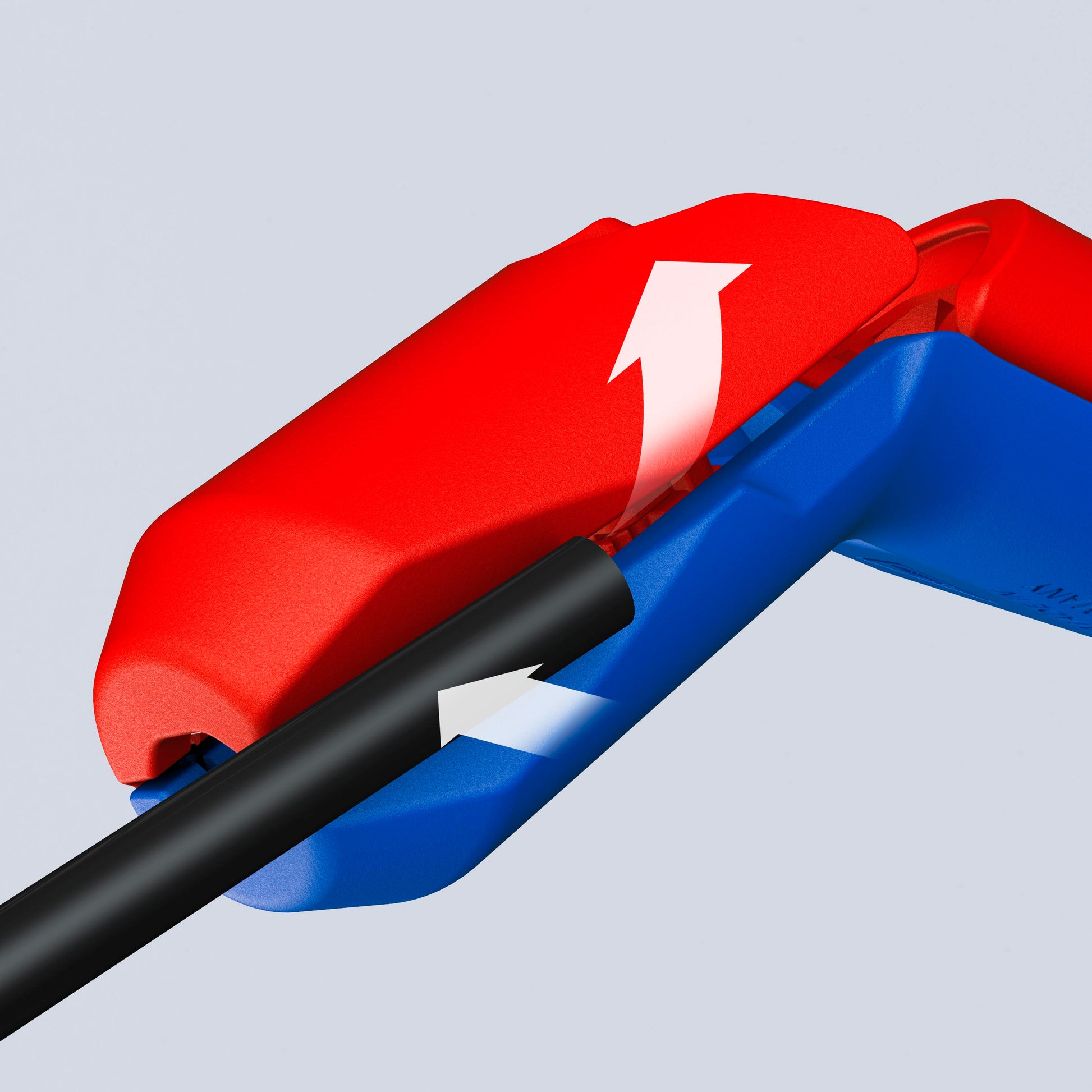

KNIPEX ErgoStrip® PV (Photovoltaic) has been specially optimized for the needs of solar installers: it can strip weather-resistant and tough PV cables for 4 and 6 mm² (12 and 10 AWG)

Features

• In addition to all standard round and moisture-resistant cables, it can also strip weather-resistant and tough PV cables 4 and 6 mm² (12 and 10 AWG).

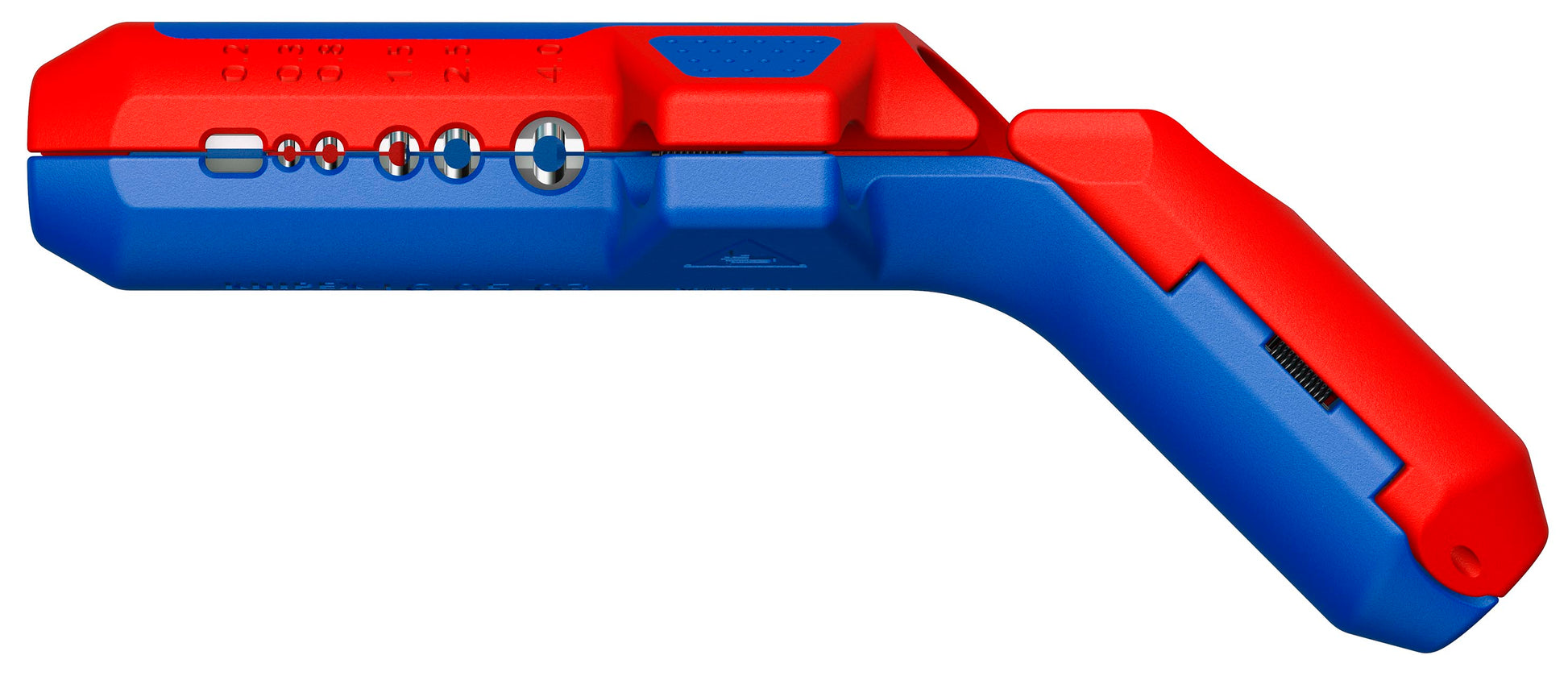

• Innovative pistol grip design for easy cutting, stripping and longitudinal cutting of the sheath

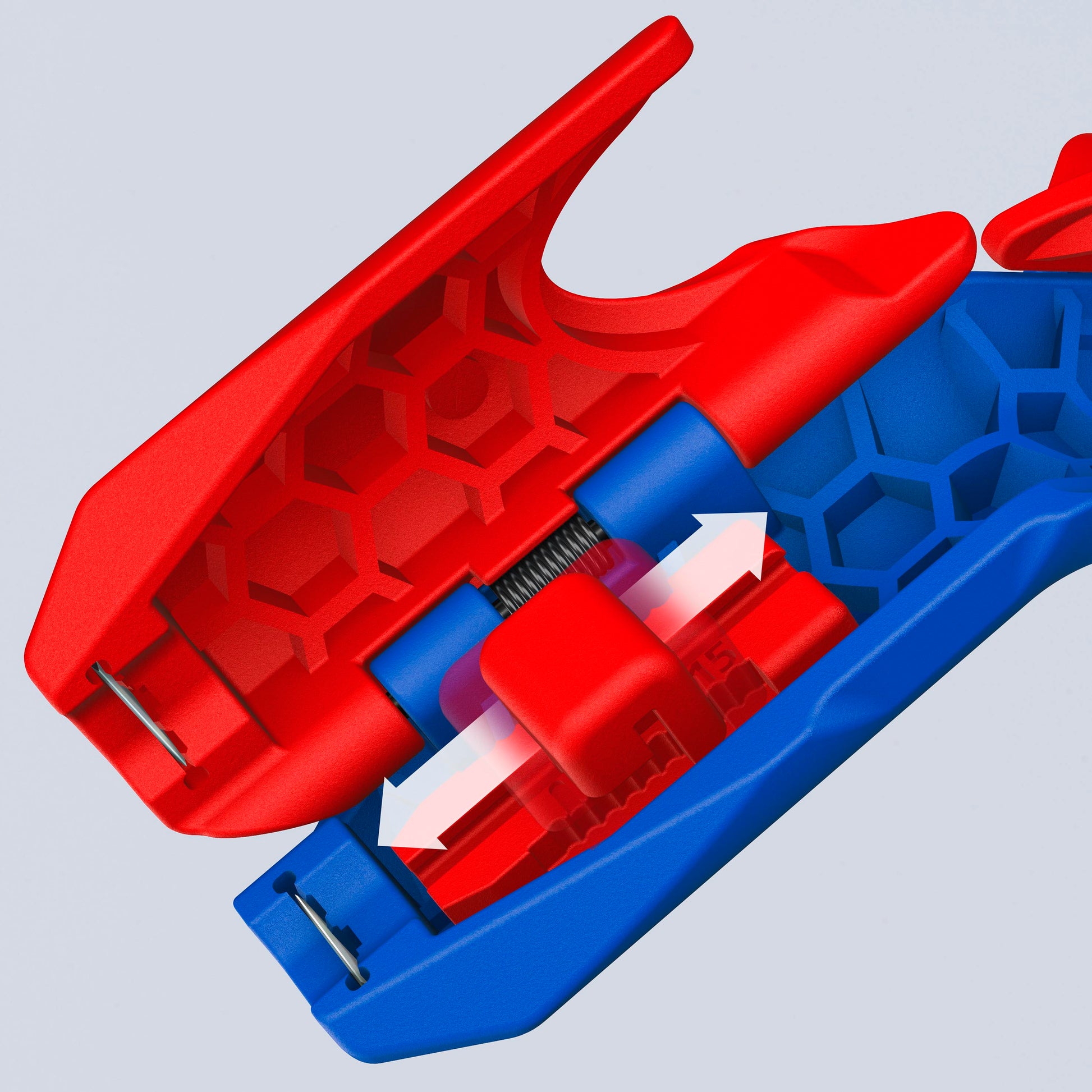

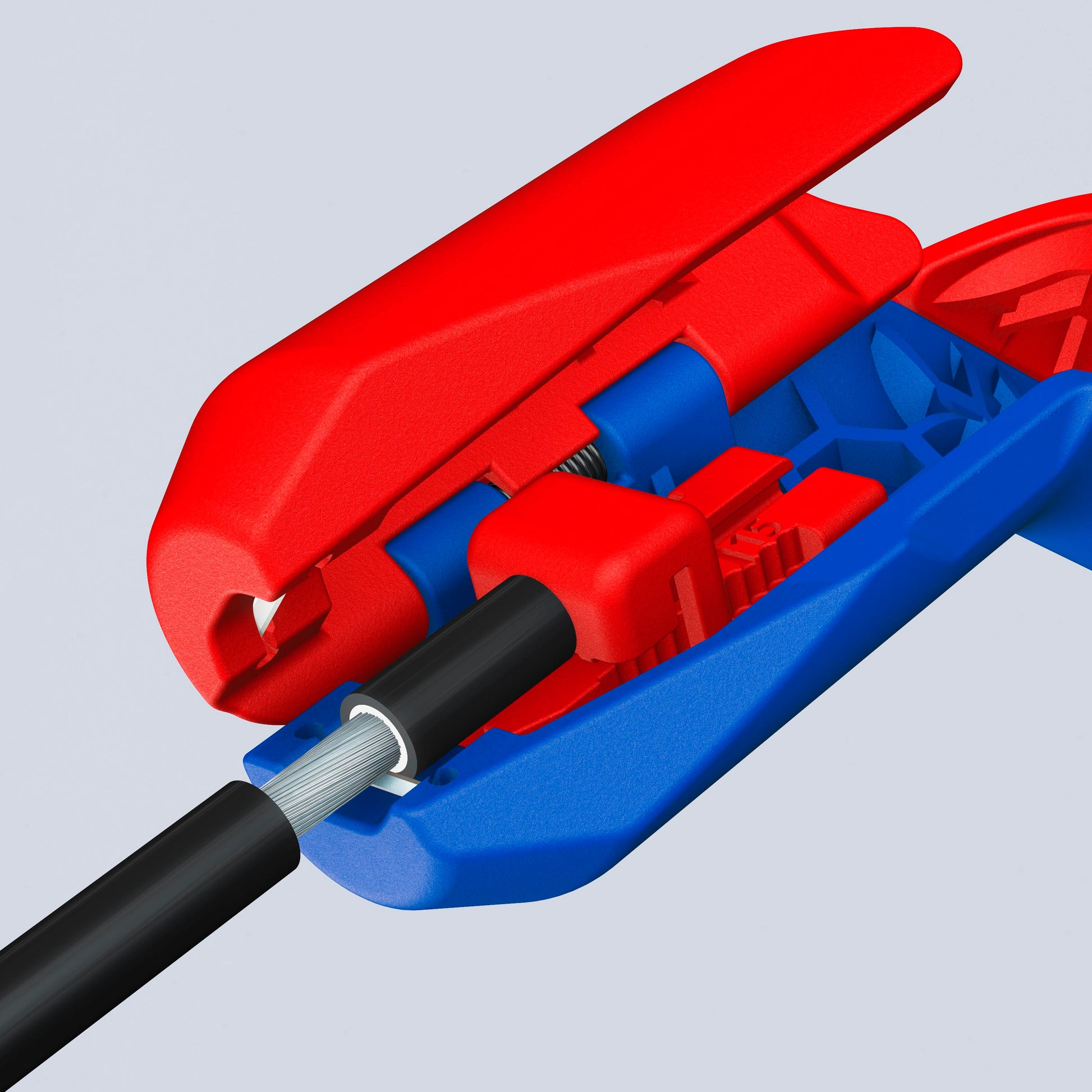

• Length stop for PV cables adjustable from 1/4" - 3/4" for repetitive stripping lengths, suitable for all standard solar connectors
• Conical, slimmed down tool ends for better access in confined areas

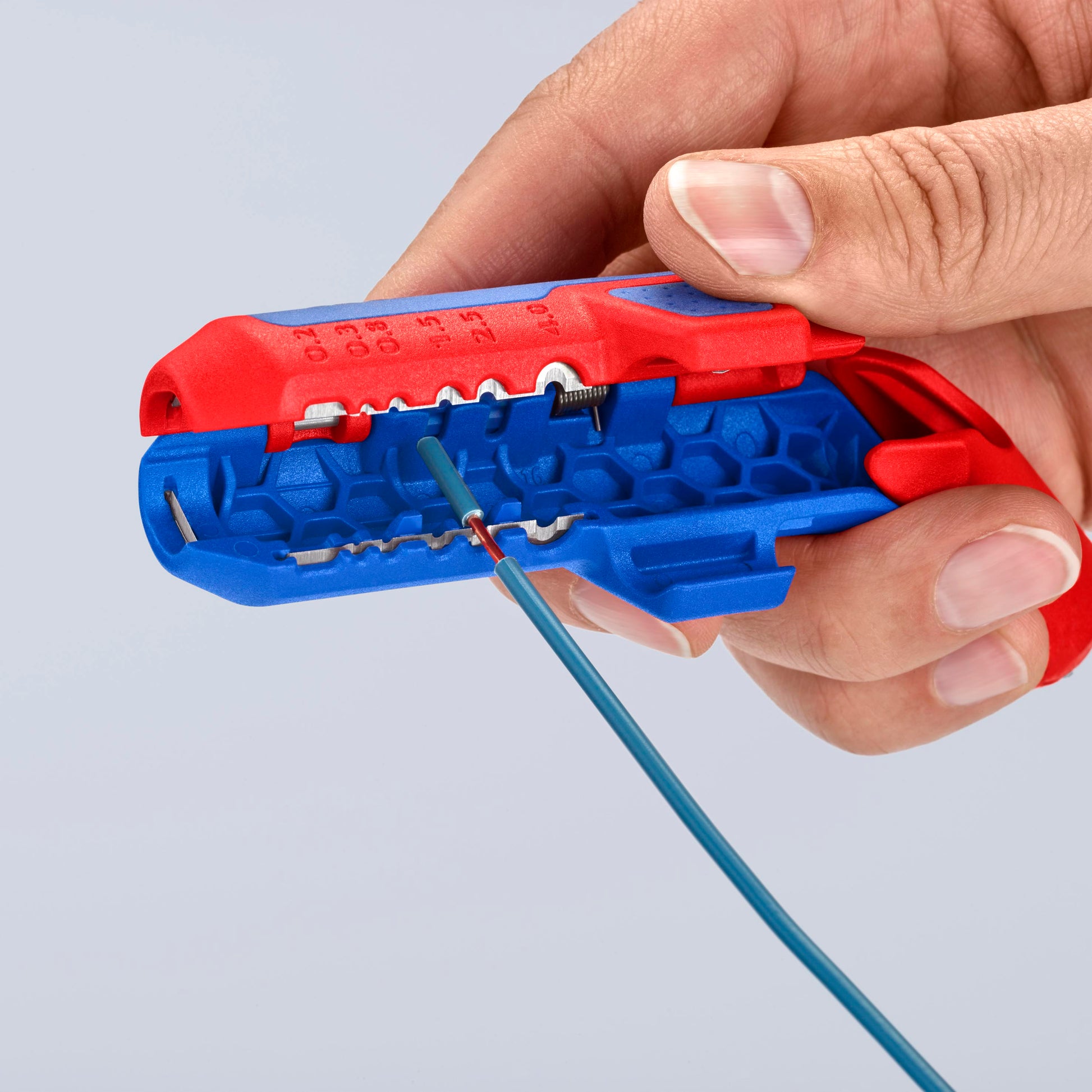

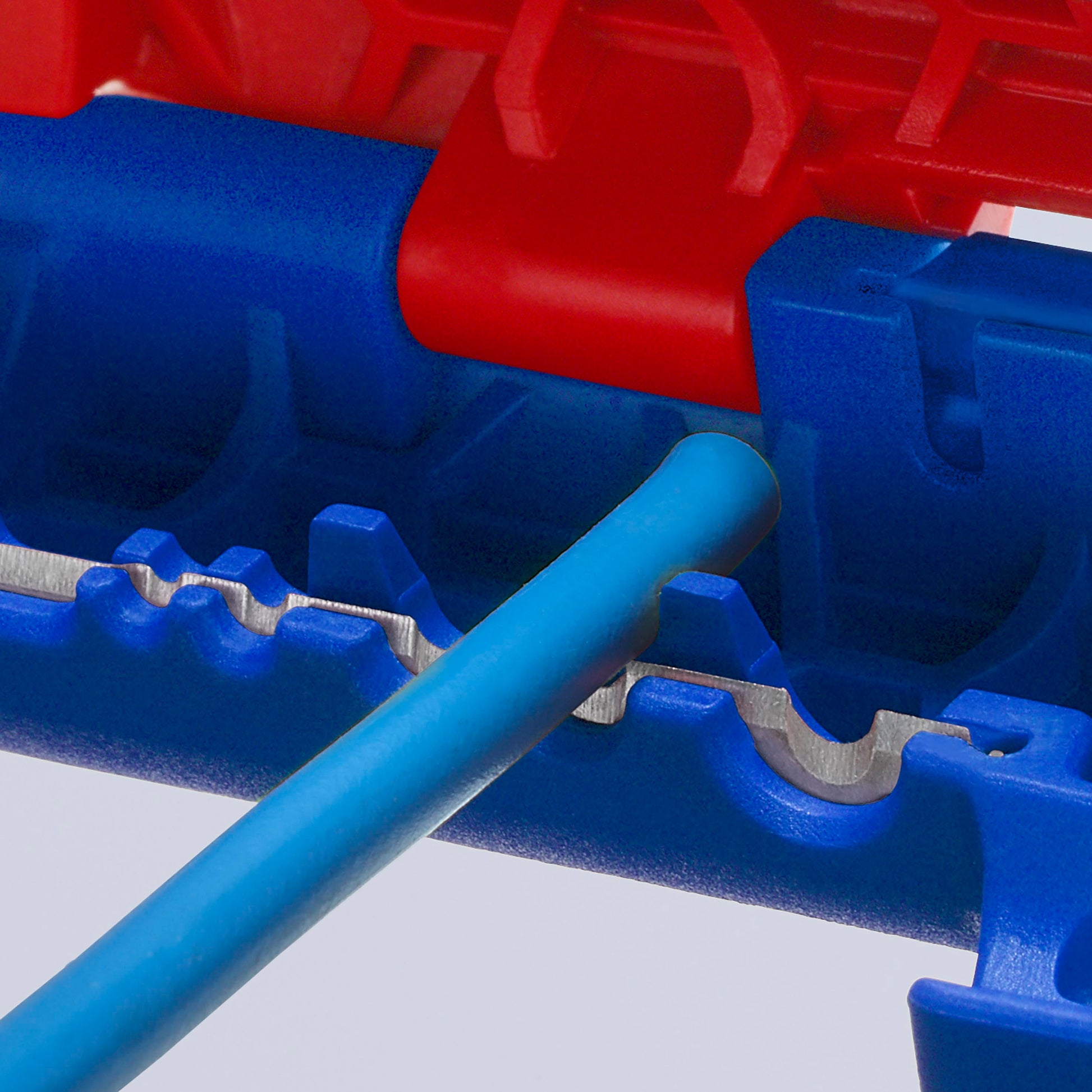

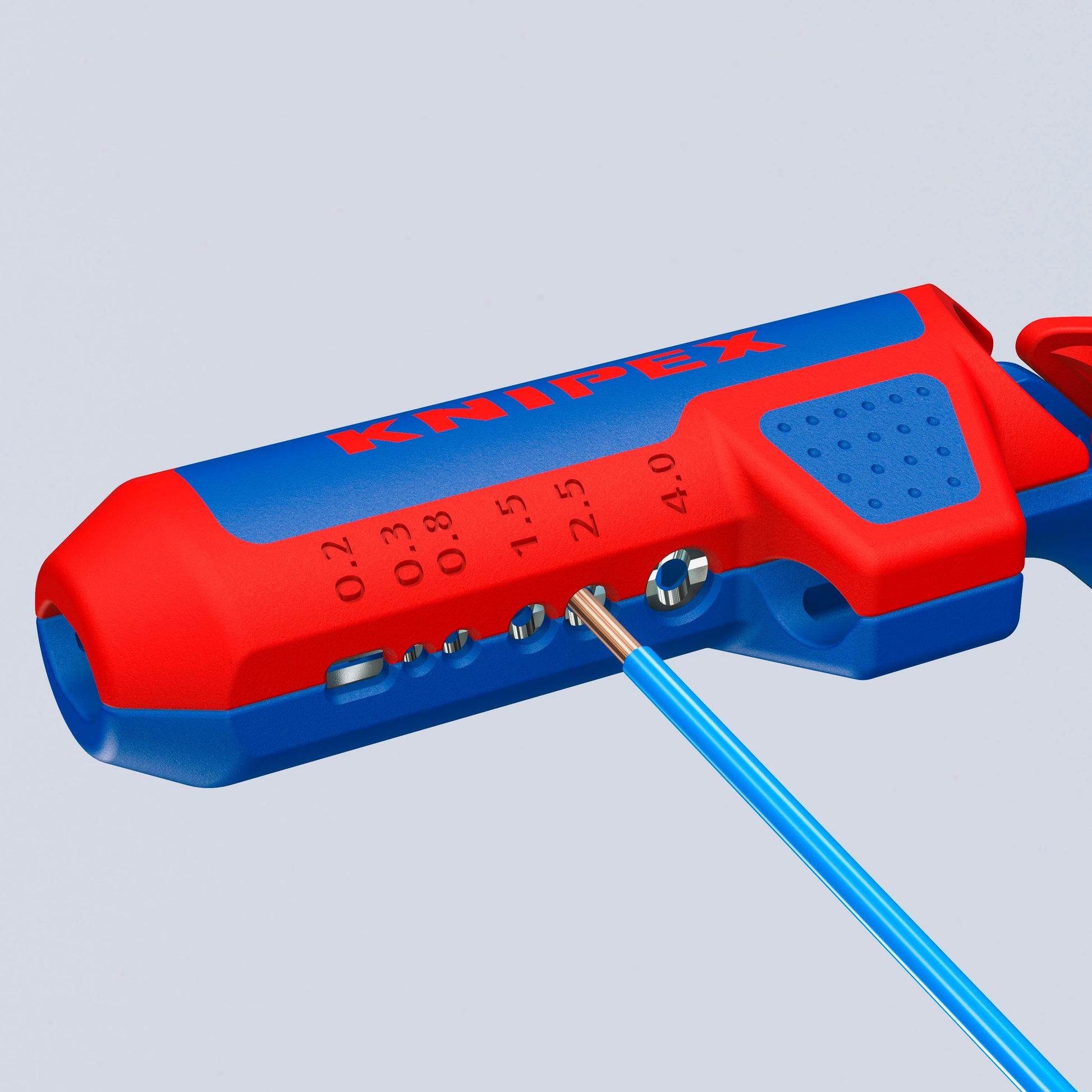

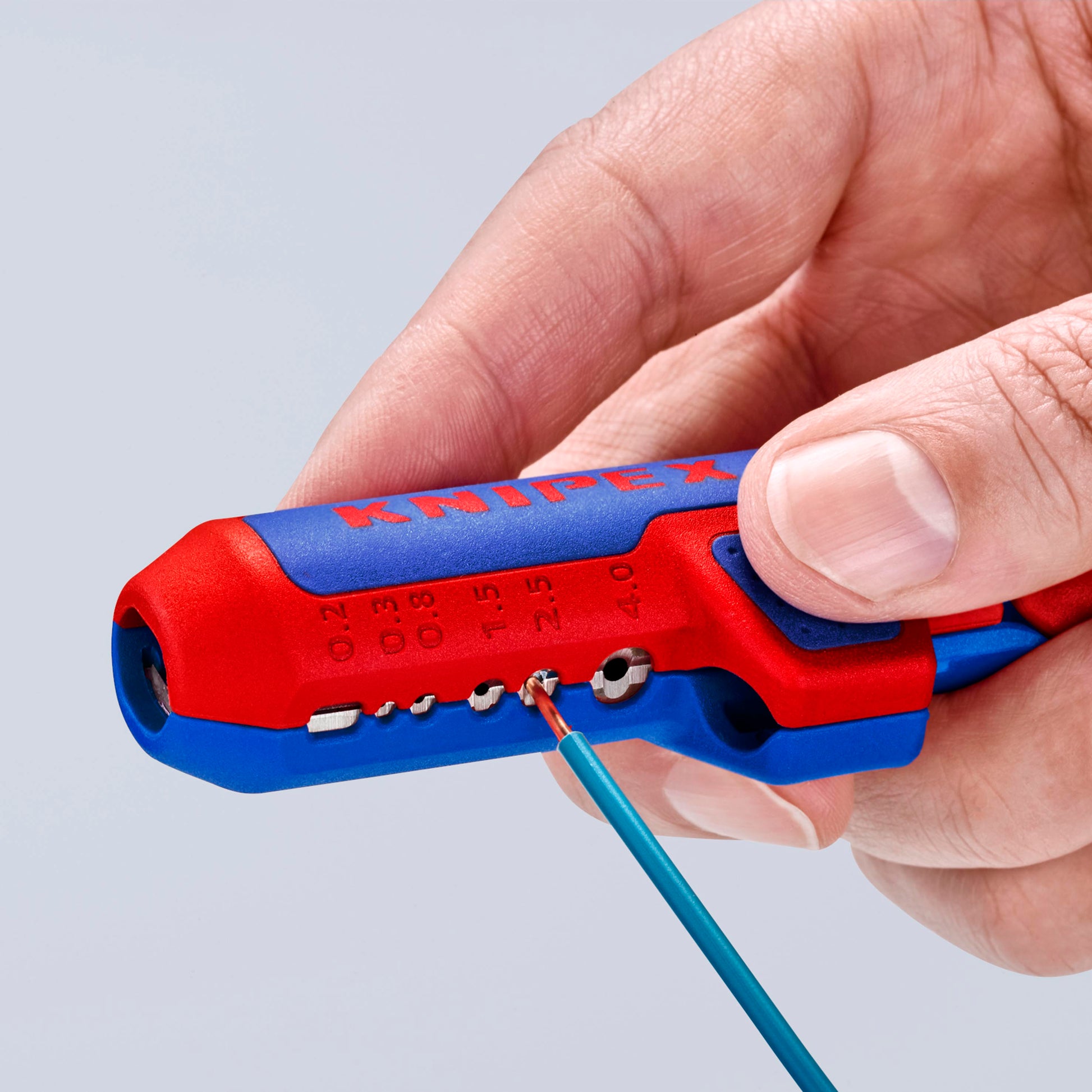

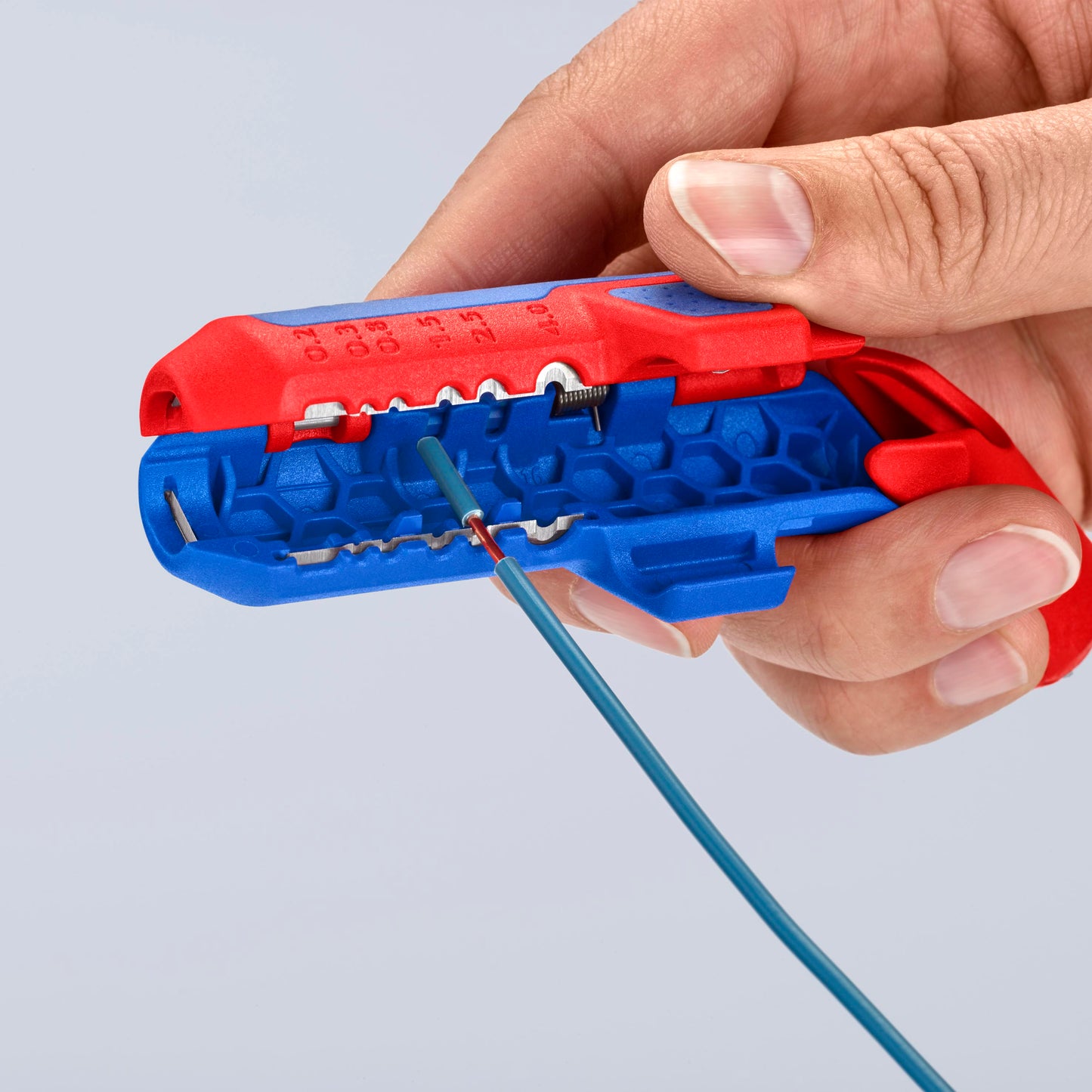

• Wire stripping for PVC single conductors with cross sections 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4.0 mm²
• Easy to locate stripping holes when using one of the locating ridges
• Opening spring and locking device make the tool easy to open and secure
• Thumb rest area for firm grip of the tool

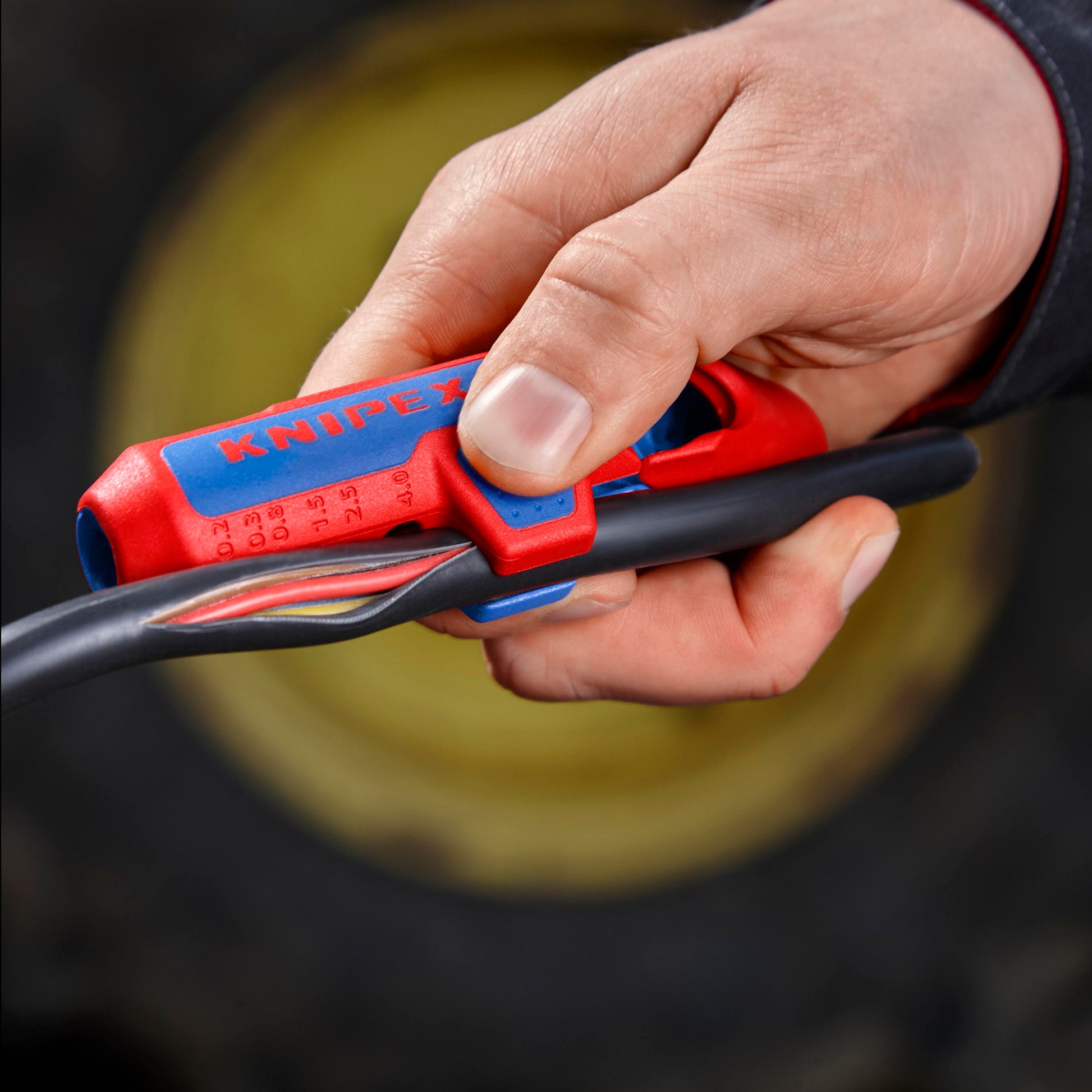

• Cable stripping knife for easy longitudinal cutting of cable sheath
• Two blades located at the front of the tool to remove outer sheath of NYM cable
• Multi-component design with a soft plastic zone for comfortable use and secure grip
• Durable housing constructed of fiberglass reinforced plastic

Specifications

• Manufacturer Part Number: 16 95 03 SB
• Sub Brand Name: ErgoStrip
• Material Type: Fiberglass reinforced plastic
• Handle Type: Multi-component
• 1000V Insulated: No
• Spring Loaded: No
• Tethered Enabled: false
• ESD Indicator: No
• Color: Blue|Red
• Nominal Length: 5 1/4"
• Tool Nominal Length: 5.25"
• Tool Length: 5.25"
• Tool Width: 1.5"
• Tool Height: 1"
• Tool Weight: 95 g (0.21 lb)
• Cable Type: PV Cables
• Stripping Capacity: 4 and 6 mm² (12 and 10 AWG)
• Stripping Capacity - mm2: 4.0 and 6.0
• Stripping Capacity - AWG: 12 and 10
• Set Part Number: 9K 00 80 190 US
• UPC: 843221031770
