Knipex 13 82 8 SBA 6-in-1 Electrical Installation Pliers 12 and 14 AWG

KNIPEXTEND comfort handles make it easy to identify your tools and utilize the KNIPEX TetheredTool System lanyards and adapters by simply adding KNIPEXTEND ColorCoded Clips and TetheredTool Clips (KNIPEXTEND accessories sold separately)

Features

• 6 functions in one pliers - grips, cuts, strips, bends, crimps and deburrs

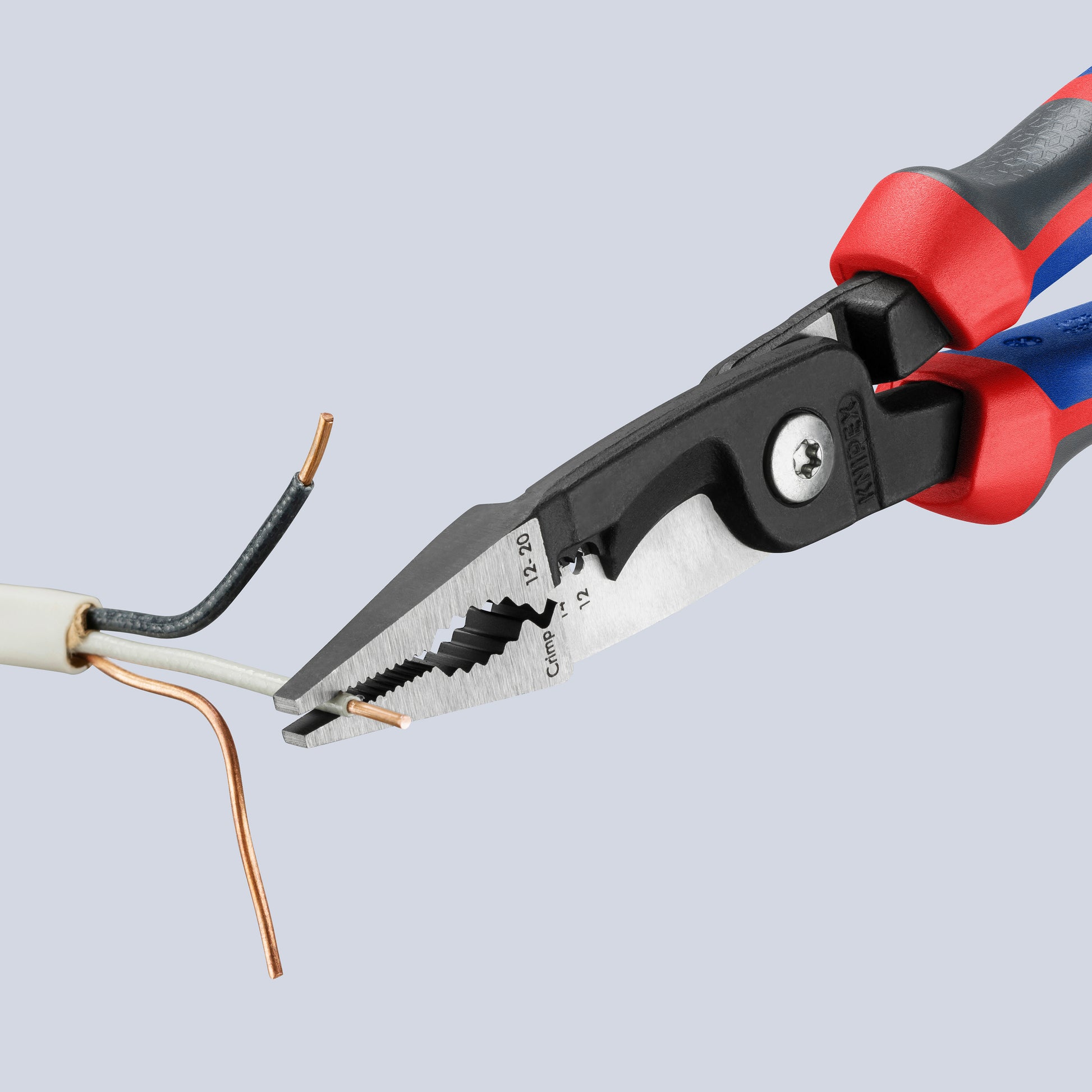

• Smooth surfaces near the tips grip single conductors without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material
• Clear-cut outside edge on the jaw for working on flush-mounted junction boxes and deburring feed-through holes

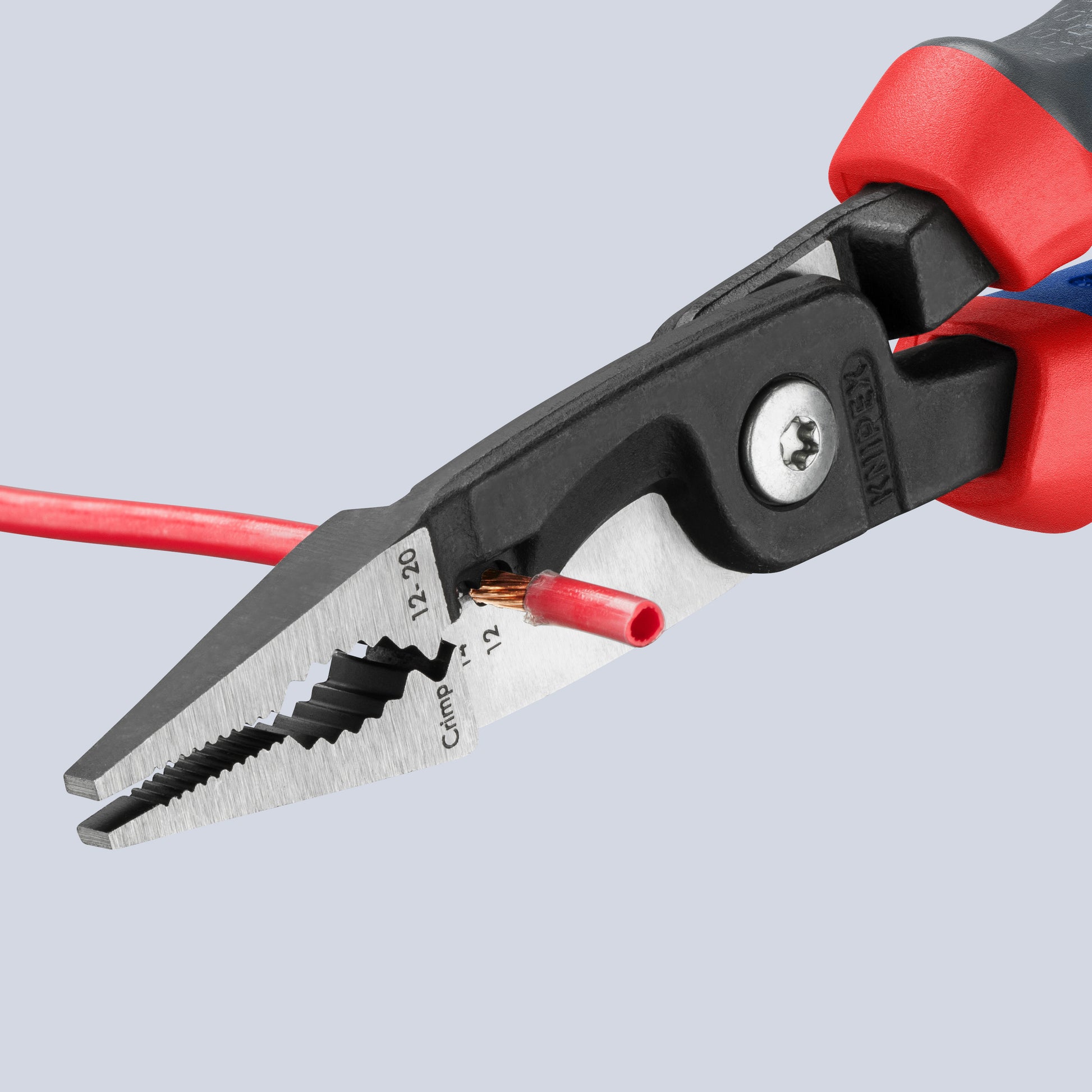

• Stripping holes for 12 to 14 AWG (0.75 – 1.5 mm² and 2.5 mm²)

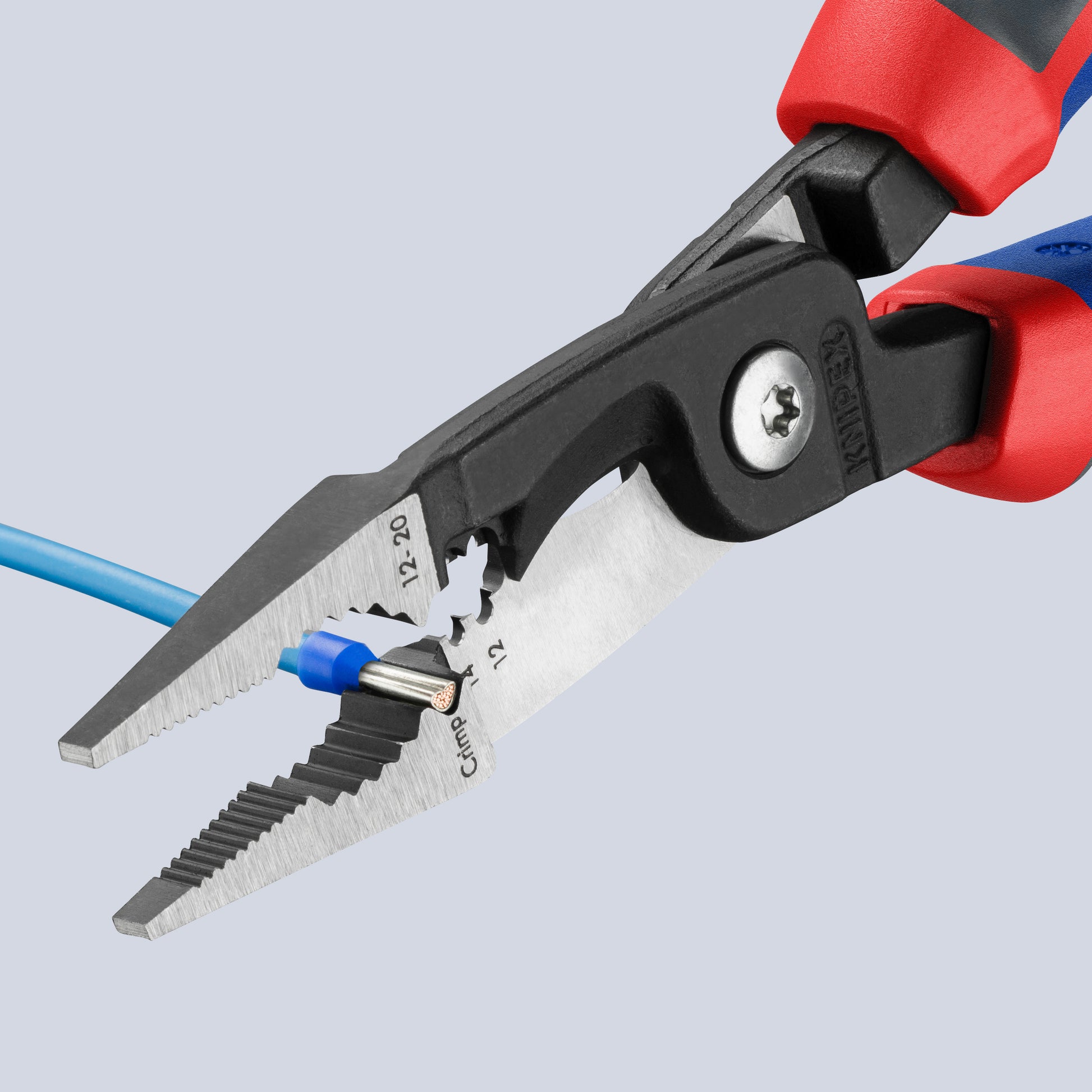

• Crimp die for end sleeves (ferrules) 12 to 20 AWG (0.5 – 2.5 mm²)

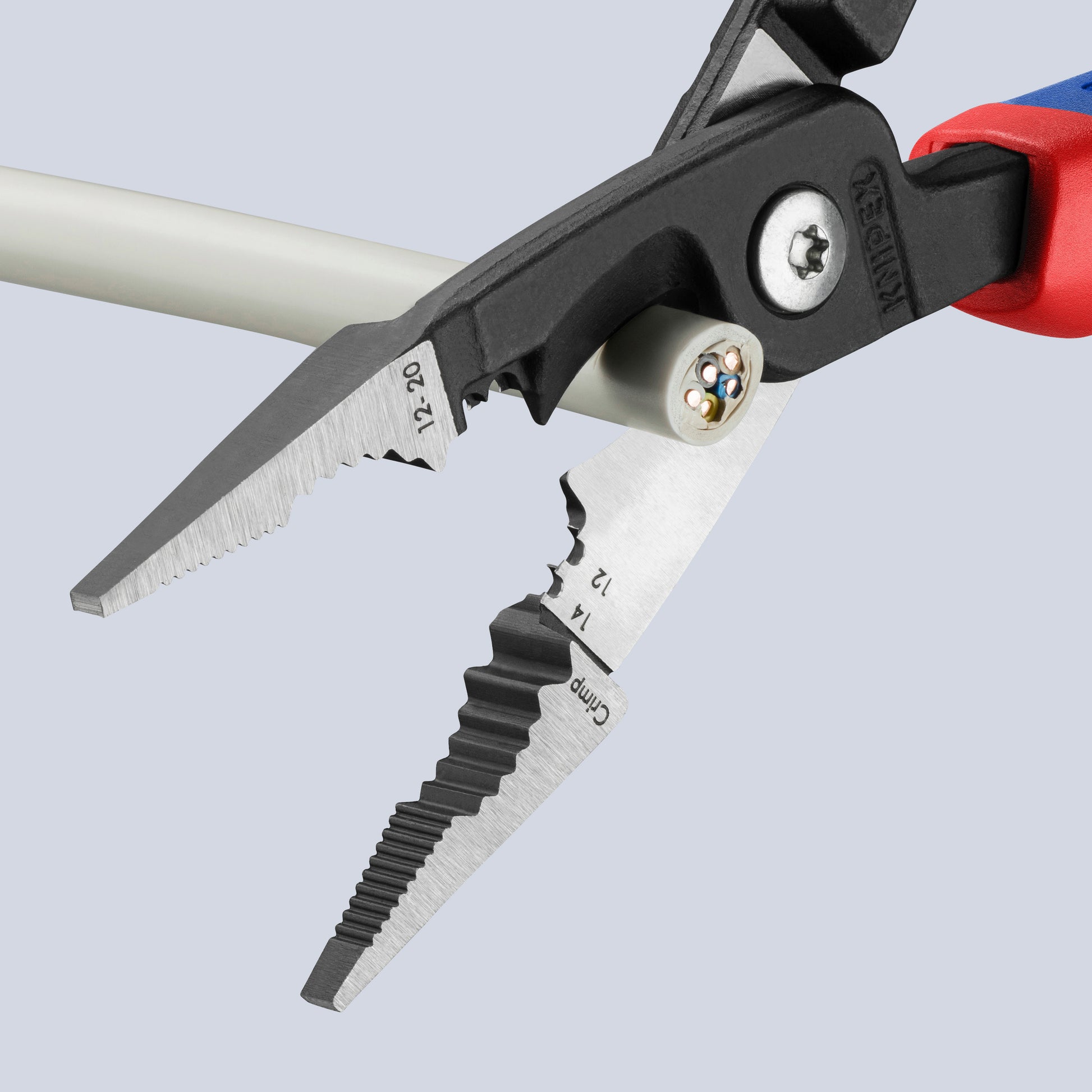

• Cable shears with induction hardened precision cutting edges for copper and aluminum cables up to 9/16" dia. (5 x 2.5 mm² / dia. 5 mm)
• Slim head dimensions for easier access
• Bolted joint: precise, zero-backlash operation of pliers
• High-grade special tool steel; forged, multi stage oil-hardened
• HANDLES HAVE RECENTLY UNDERGONE A REDESIGN, SO THE AVAILABILITY OF THE NEW DESIGNS AT DISTRIBUTORS WILL DEPEND ON THEIR CURRENT INVENTORY LEVELS

Specifications

• Manufacturer Part Number: 13 82 8 SBA
• Material Type: High-grade special tool steel, forged, multi-stage oil-hardened
• Handle Type: KNIPEXTEND Comfort Handle
• Gripping Surface: Smooth tip and serrated jaws
• Surface Finish: Polished
• Other Surface Finish: Black atramentized
• 1000V Insulated: No
• Tethered Enabled: false
• Color: Red/Blue
• Nominal Length: 8"
• Tool Nominal Length: 8"
• Tool Length: 8.3"
• Tool Width: 1.8"
• Tool Height: 0.85"
• Tool Weight: 268 g (0.59 lb)
• Joint Type: Bolted
• Jaw Type: Flat
• Cutting Edge Shape: Shear
• Cutting Capacity - Cu and Al conductor: 9/16"
• Cable Type: Stranded Cables
• Stripping Capacity - AWG: 14 and 12
• Crimping Positions: 1
• Terminal Type: End Ferrules-Long|End Ferrules-Single|End Ferrules-Single (Insulated)
• Crimping Capacity: 20 to 12
• Accessory Part Number: 00 63 06TCR SBA|00 61 10 CA SBA|00 61 10 CR SBA|00 61 10 CB SBA|00 61 10 CY SBA|00 61 10 CO SBA|00 61 10 CG SBA|00 61 10 CV SBA|00 61 10 CM SBA|00 61 10 CS SBA|00 61 10 CW SBA|00 62 10 TR SBA|00 61 10 01 SBA|00 61 10 02 SBA
• UPC: 843221012106
