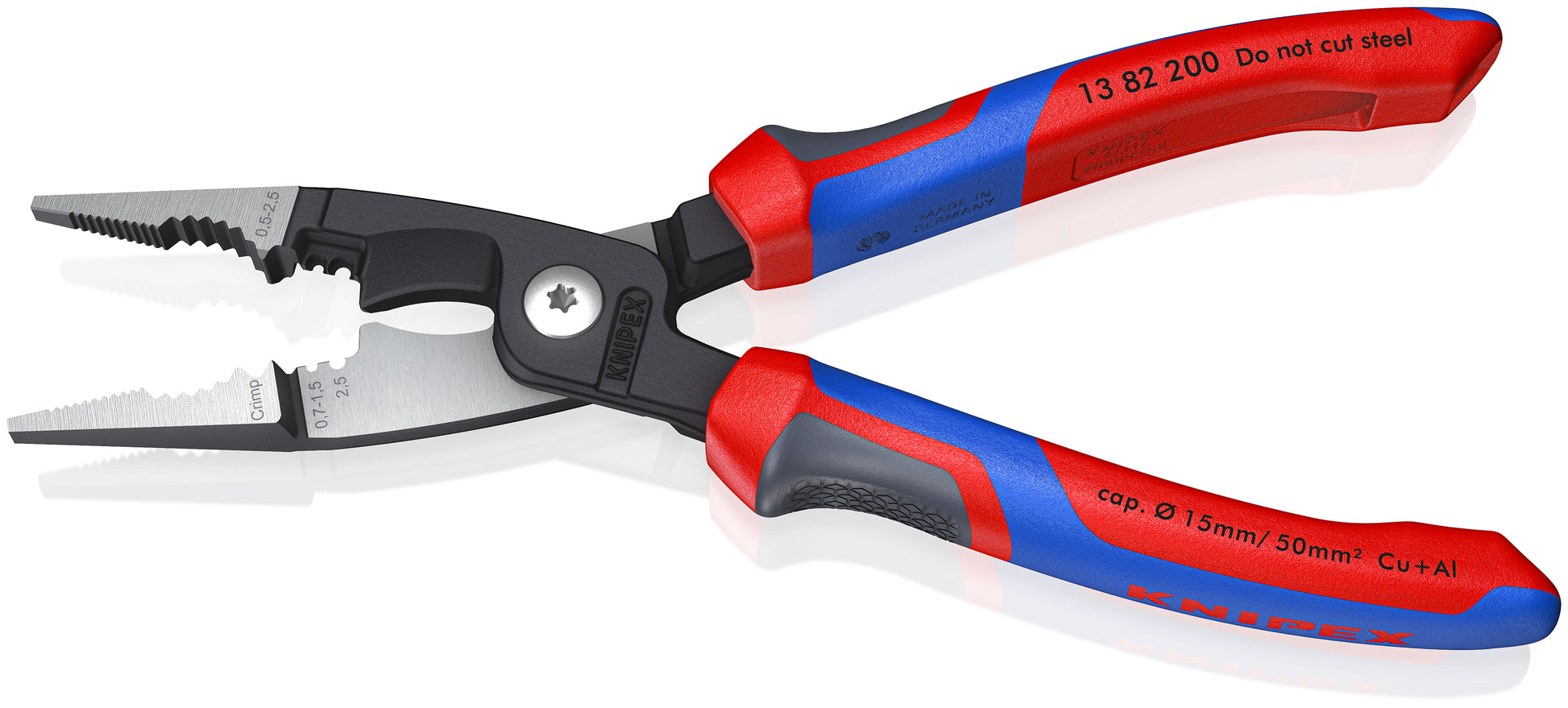

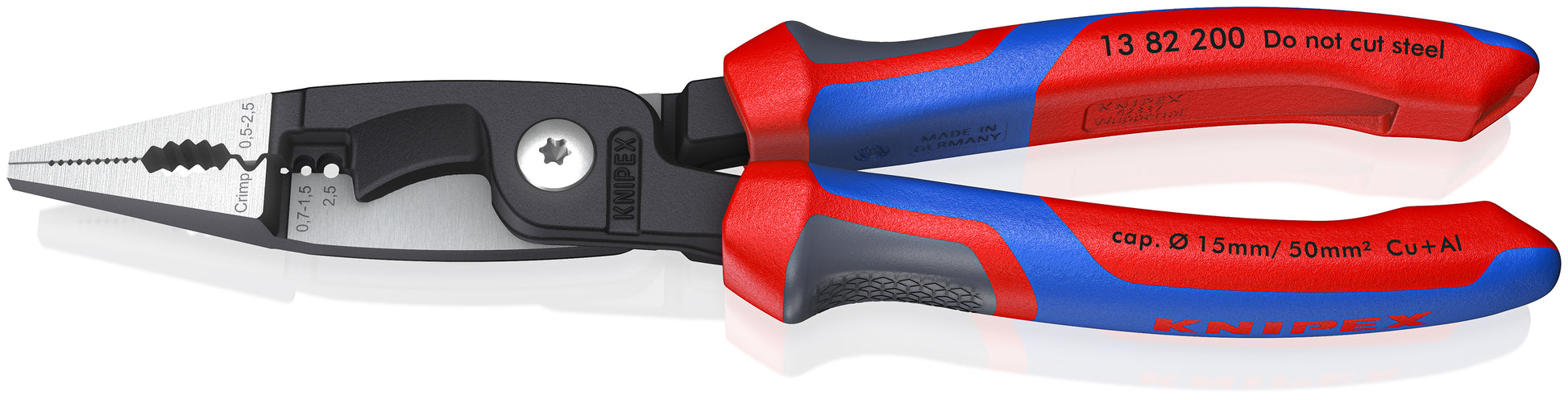

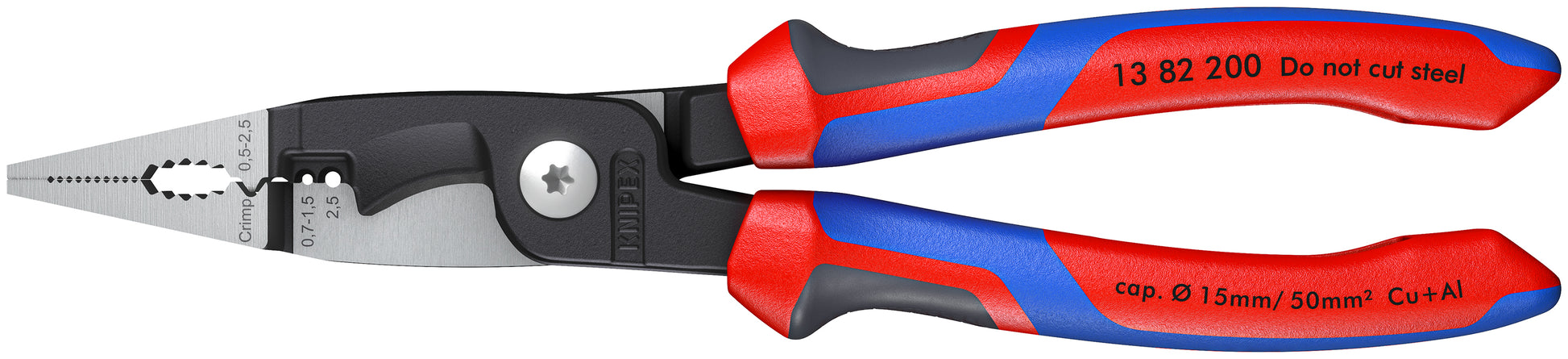

Knipex 13 82 200 SB 6-in-1 Electrical Installation Pliers-Metric Wire

KNIPEXTEND comfort handles make it easy to identify your tools and utilize the KNIPEX TetheredTool System lanyards and adapters by simply adding KNIPEXTEND ColorCoded Clips and TetheredTool Clips (KNIPEXTEND accessories sold separately)

Features

• 6 functions in one pliers - grips, cuts, strips, bends, crimps and deburrs

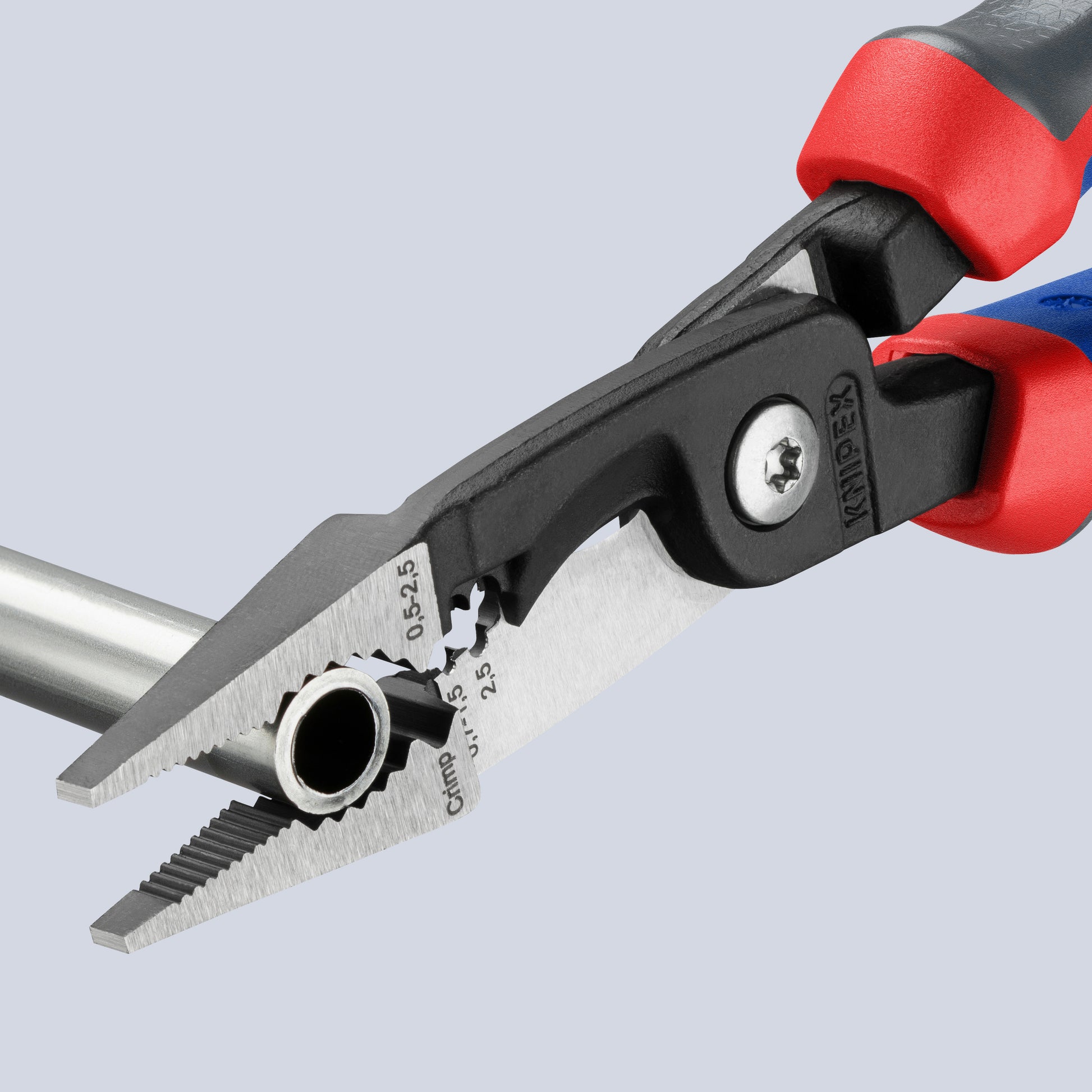

• Clear-cut outside edge on the jaw for working on flush-mounted junction boxes and deburring feed-through holes

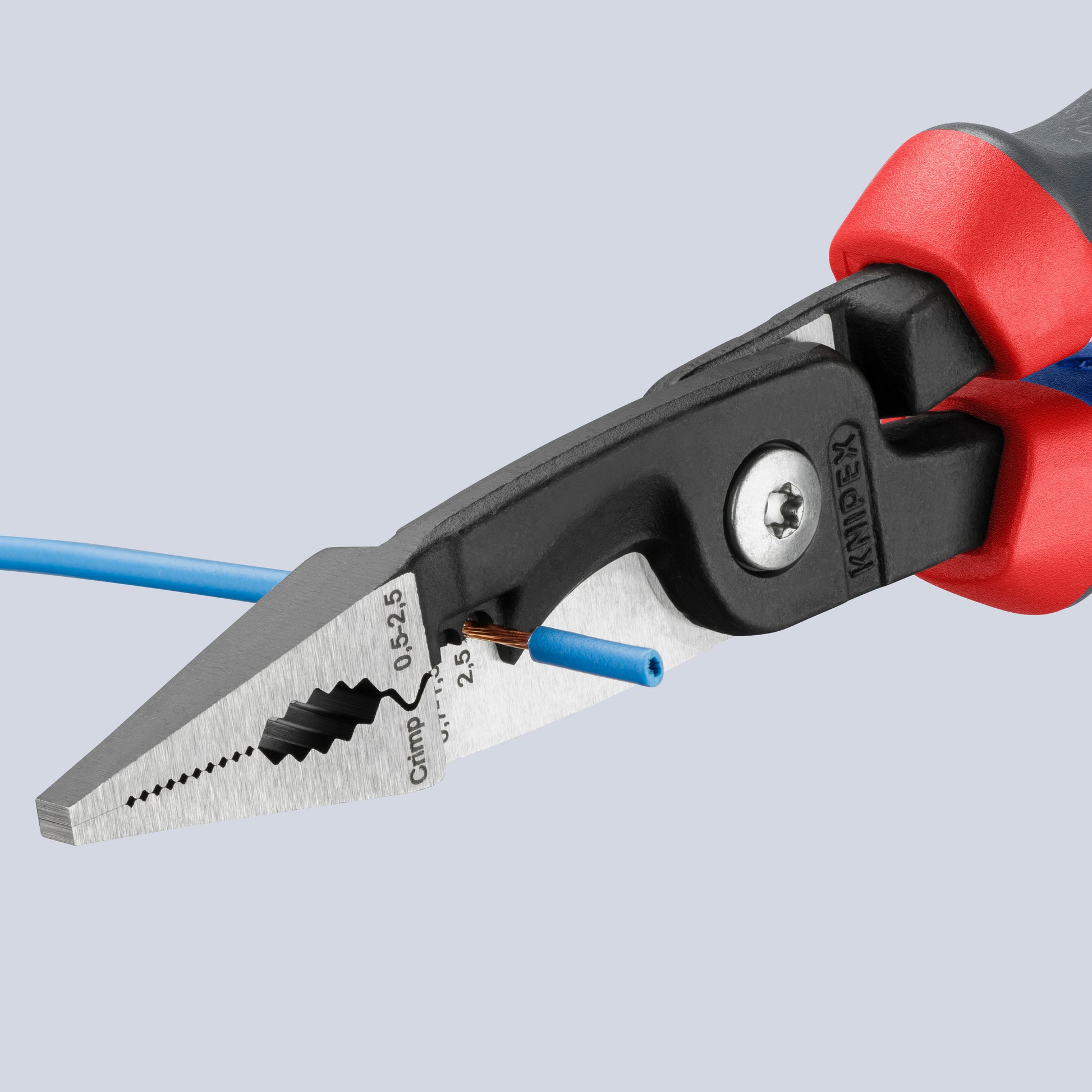

• Stripping holes for 0.75 - 1.5 mm² and 2.5 mm²

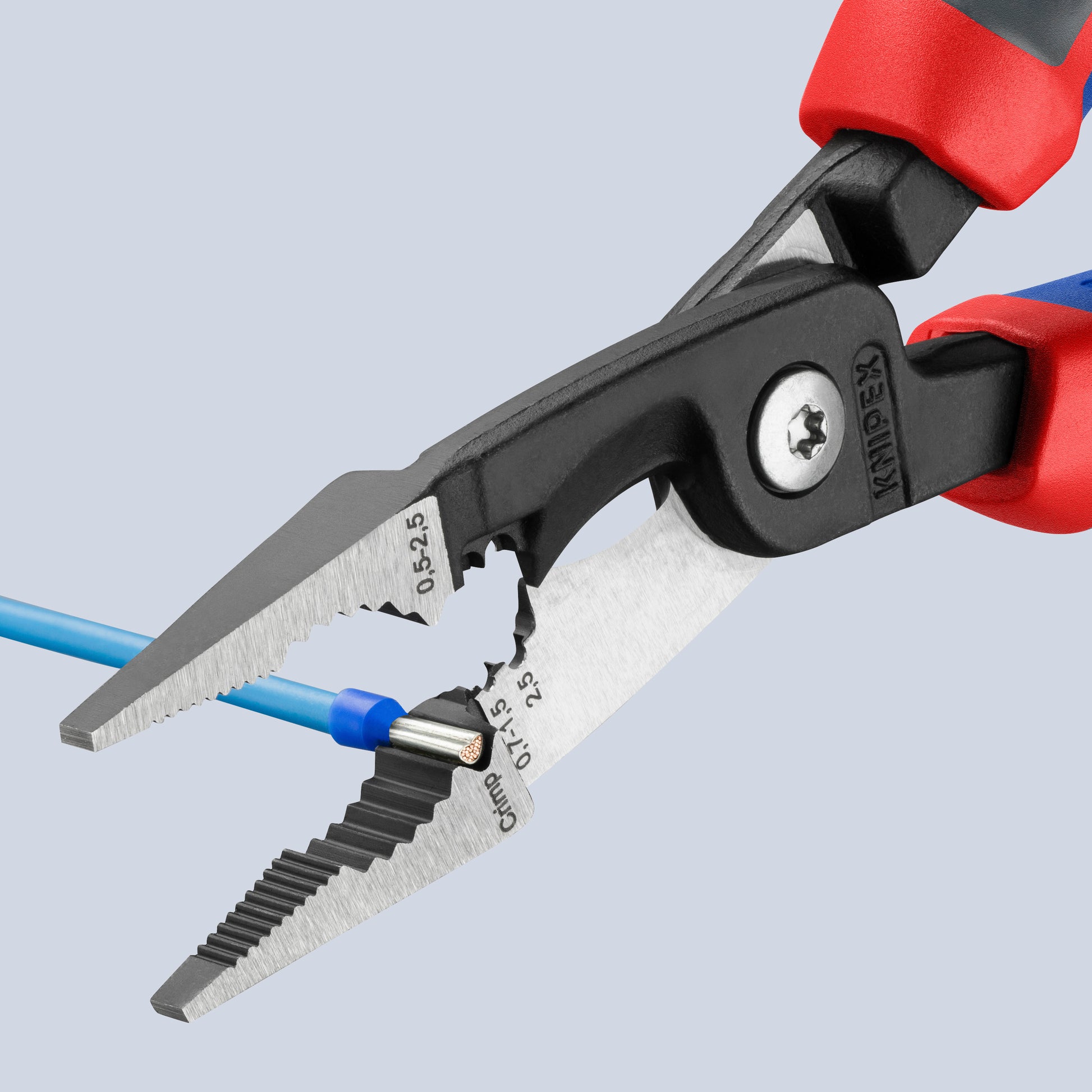

• Crimp die for end sleeves (ferrules) 0.5 – 2.5 mm²

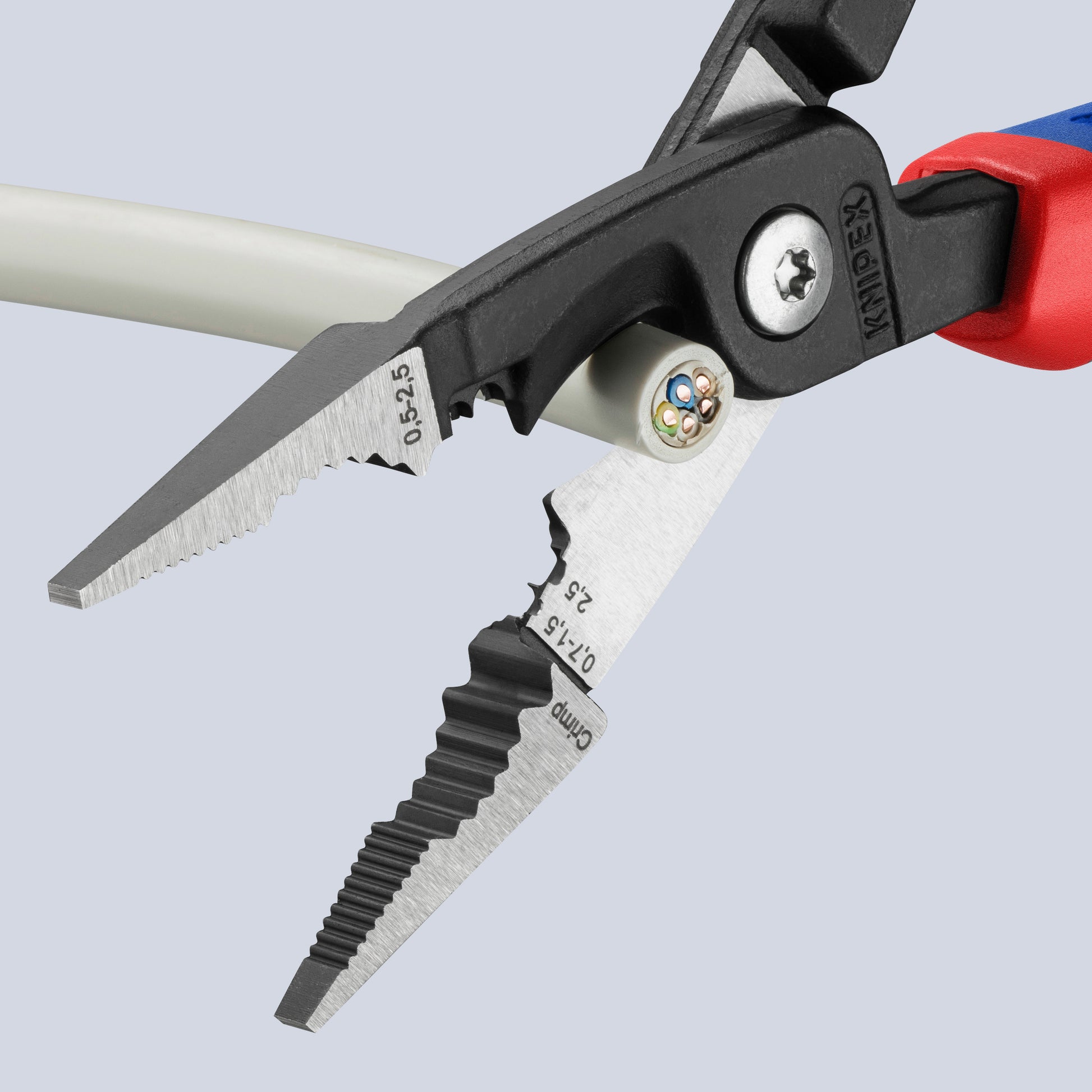

• Cable shears with induction hardened precision cutting edges for copper and aluminum cables up to 9/16" dia. (5 x 2.5 mm² / dia. 5 mm)
• Slim head dimensions for easier access
• Bolted joint: precise, zero-backlash operation of pliers
• High-grade special tool steel; forged, multi stage oil-hardened
• HANDLES HAVE RECENTLY UNDERGONE A REDESIGN, SO THE AVAILABILITY OF THE NEW DESIGNS AT DISTRIBUTORS WILL DEPEND ON THEIR CURRENT INVENTORY LEVELS

Specifications

• Manufacturer Part Number: 13 82 200 SB
• Material Type: High-grade special tool steel, forged, multi-stage oil-hardened
• Handle Type: KNIPEXTEND Comfort Handle
• Gripping Surface: Smooth tip and serrated jaws
• Surface Finish: Polished
• Other Surface Finish: Black atramentized
• 1000V Insulated: No
• Tethered Enabled: false
• Color: Blue|Gray|Red
• Nominal Length: 8"
• Tool Nominal Length: 8"
• Tool Length: 8.35"
• Tool Width: 1.8"
• Tool Height: 0.85"
• Tool Weight: 263 g (0.58 lb)
• Joint Type: Bolted
• Handle Length: 4 1/2"
• Jaw Type: Flat
• Cutting Edge Shape: Shear
• Cutting Capacity - Cu and Al conductor: 9/16"
• Crimping Positions: 1
• Crimping Profile: Mandrel crimp
• Accessory Part Number: 00 63 06TCR SBA|00 61 10 CA SBA|00 61 10 CR SBA|00 61 10 CB SBA|00 61 10 CY SBA|00 61 10 CO SBA|00 61 10 CG SBA|00 61 10 CV SBA|00 61 10 CM SBA|00 61 10 CS SBA|00 61 10 CW SBA|00 62 10 TR SBA|00 61 10 01 SBA|00 61 10 02 SBA
• UPC: 843221019518
