Knipex 13 81 8 SBA 6-in-1 Electrical Installation Pliers 12 and 14 AWG

6 functions in one pliers - grips, cuts, strips, bends, crimps and deburrs

Features

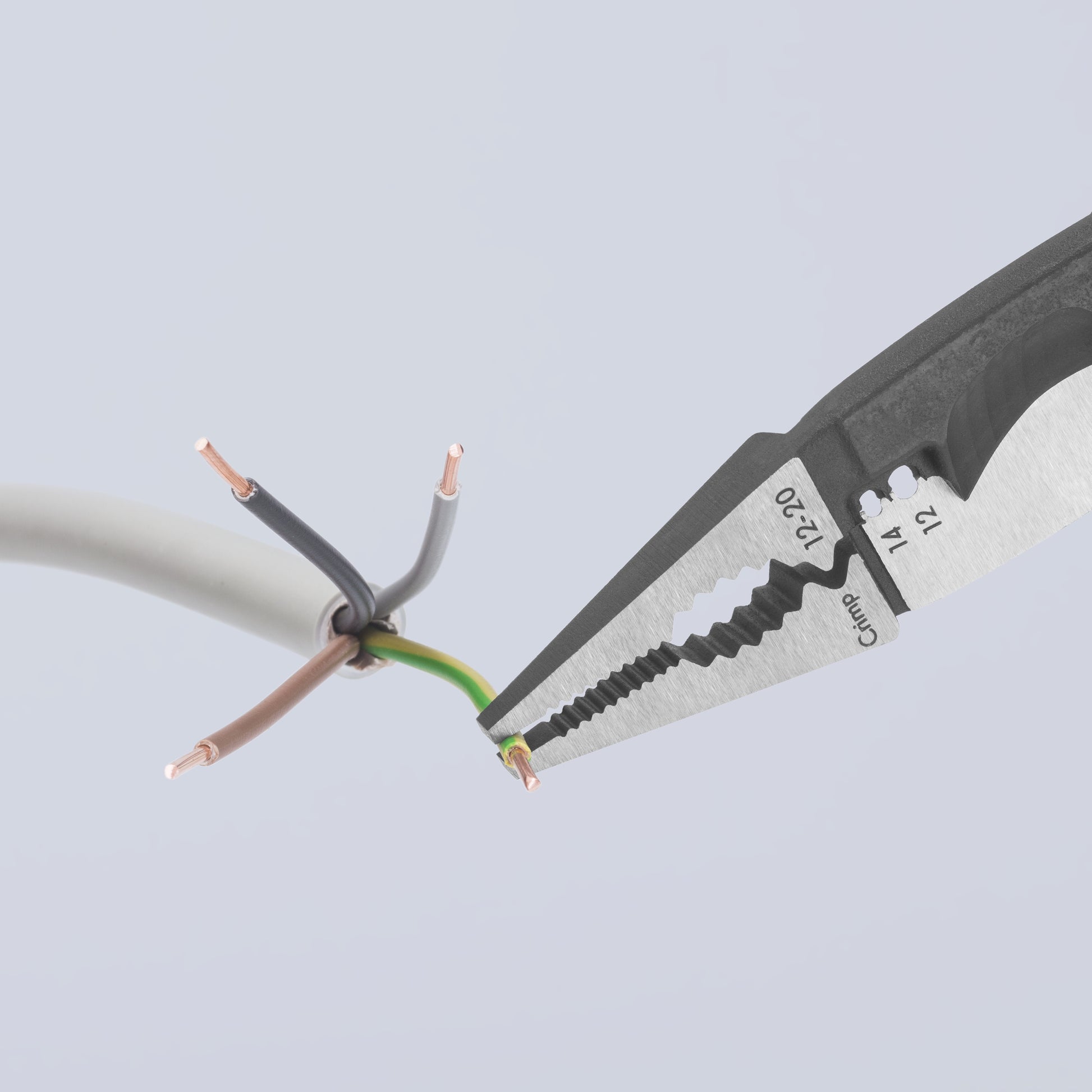

• Smooth surfaces near the tips grip single conductors without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material
• Clear-cut outside edge on the jaw for working on flush-mounted junction boxes and deburring feed-through holes
• Stripping holes for 12 to 14 AWG (0.75 – 1.5 mm² and 2.5 mm²)

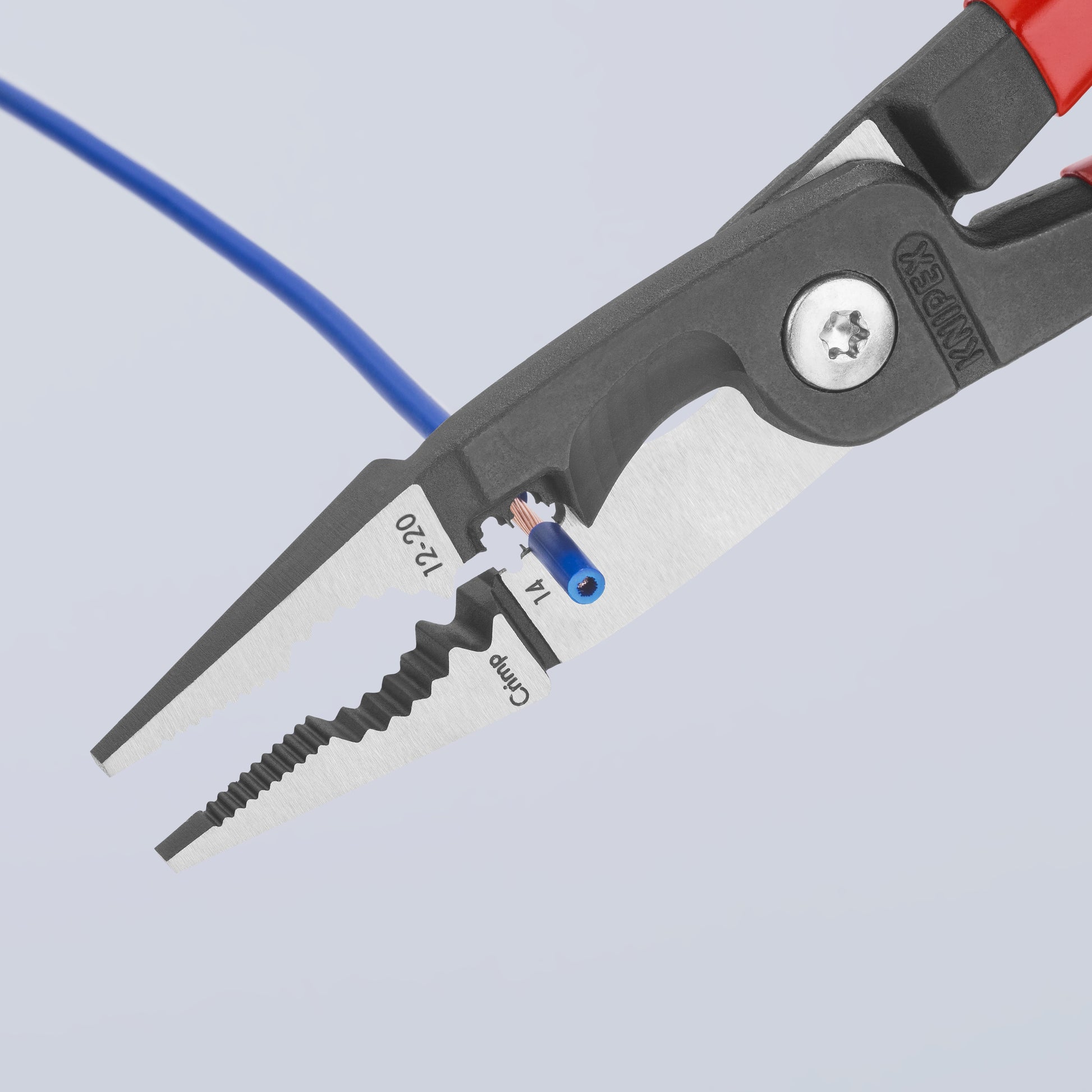

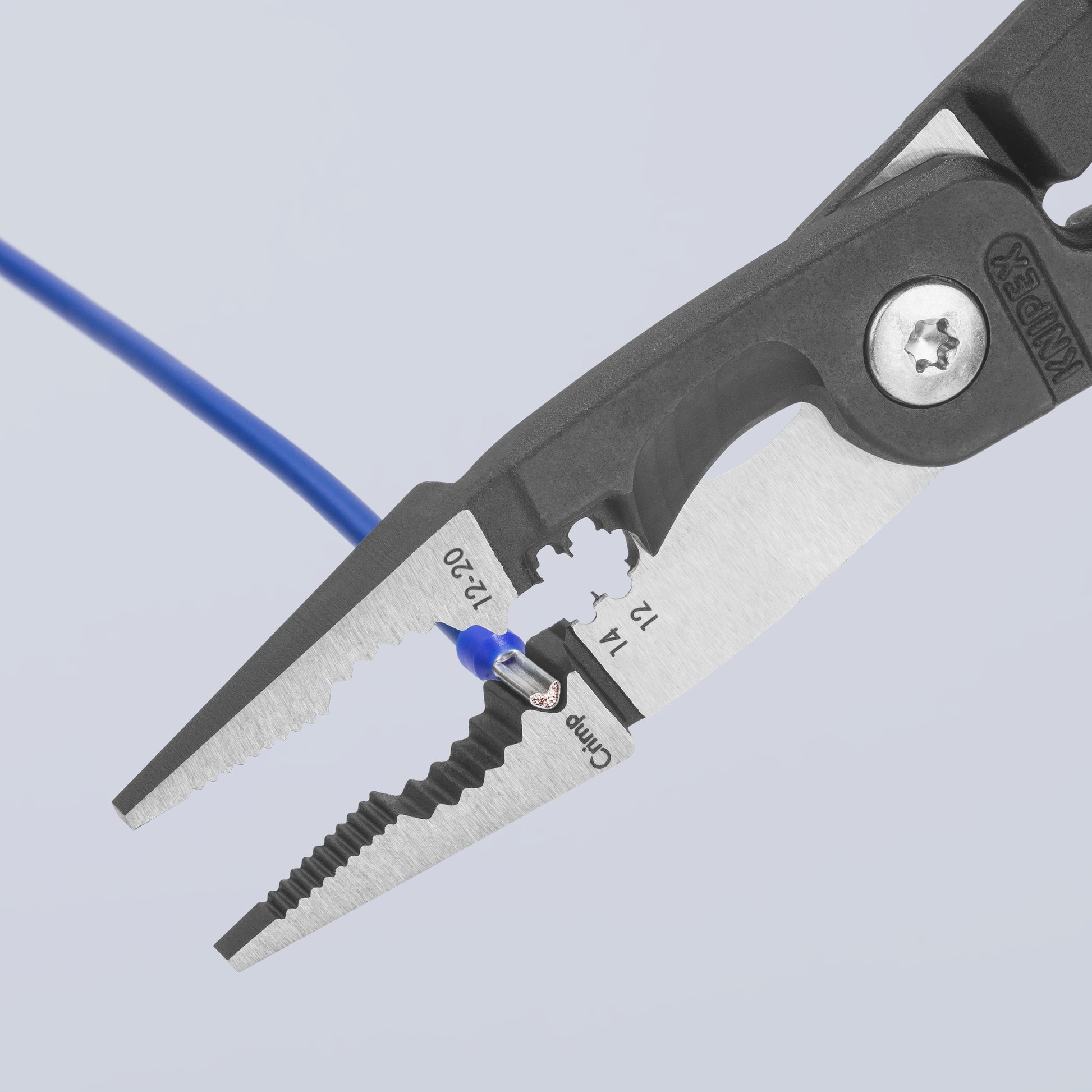

• Crimp die for end sleeves (ferrules) 12 to 20 AWG (0.5 – 2.5 mm²)

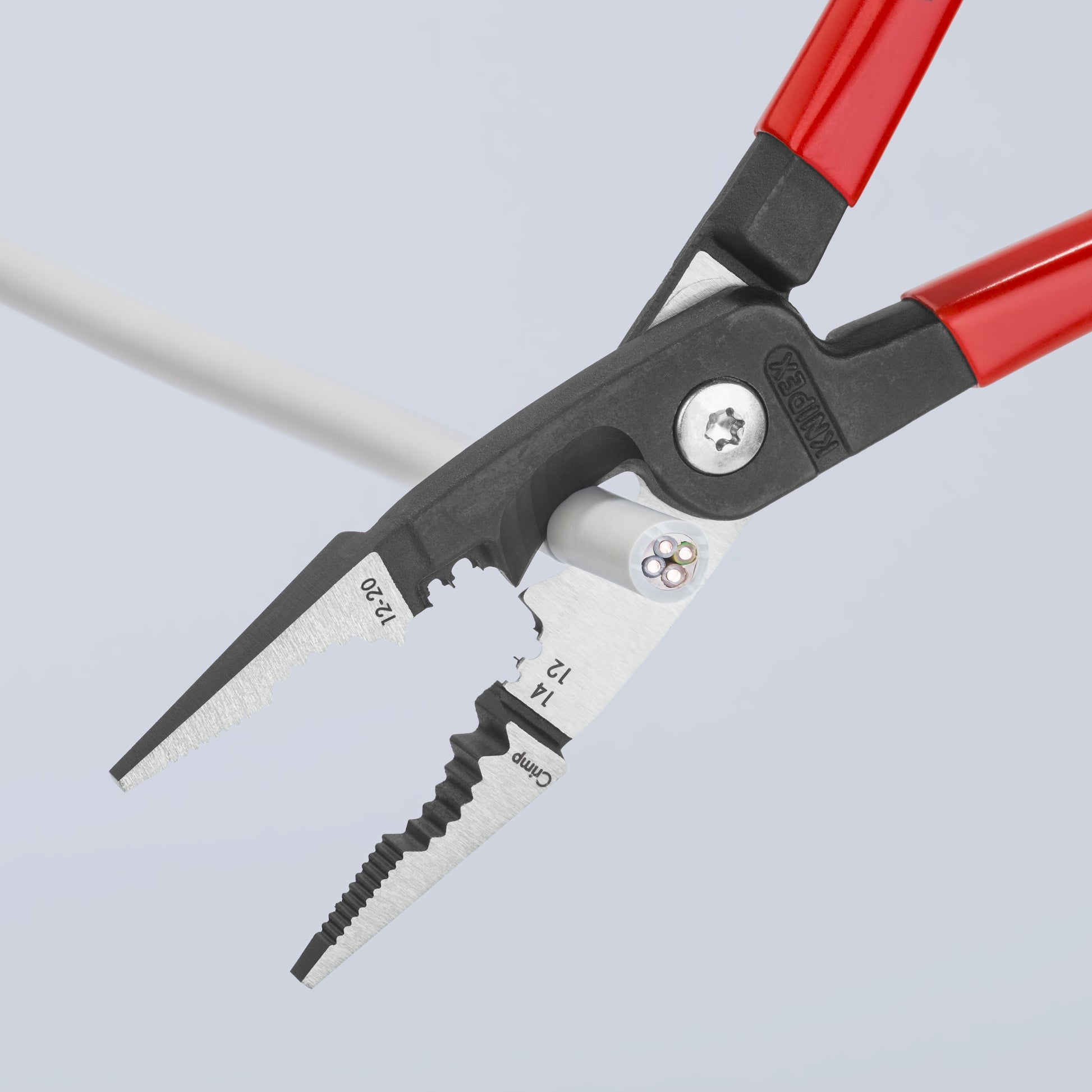

• Cable shears with induction hardened precision cutting edges for copper and aluminum cables up to 9/16" dia. (5 x 2.5 mm² / dia. 5 mm)
• Slim head dimensions for easier access
• Bolted joint: precise, zero-backlash operation of pliers
• High-grade special tool steel; forged, multi stage oil-hardened

Specifications

• Manufacturer Part Number: 13 81 8 SBA
• Material Type: High-grade special tool steel, forged, multi-stage oil-hardened
• Handle Type: Plastic coating
• Gripping Surface: Smooth tip and serrated jaws
• Surface Finish: Polished
• Other Surface Finish: Black atramentized
• 1000V Insulated: No
• Tethered Enabled: false
• Color: Red
• Nominal Length: 8"
• Tool Nominal Length: 8"
• Tool Length: 8.15"
• Tool Width: 1.6"
• Tool Height: 0.6"
• Tool Weight: 234 g (0.515 lb)
• Joint Type: Bolted
• Jaw Type: Flat
• Cutting Edge Shape: Shear
• Cutting Capacity - Cu and Al conductor: 9/16"
• Cable Type: Stranded Cables
• Stripping Capacity - AWG: 14 and 12
• Crimping Positions: 1
• Terminal Type: End Ferrules-Long|End Ferrules-Single|End Ferrules-Single (Insulated)
• Crimping Capacity: 20 to 12
• UPC: 843221012090
