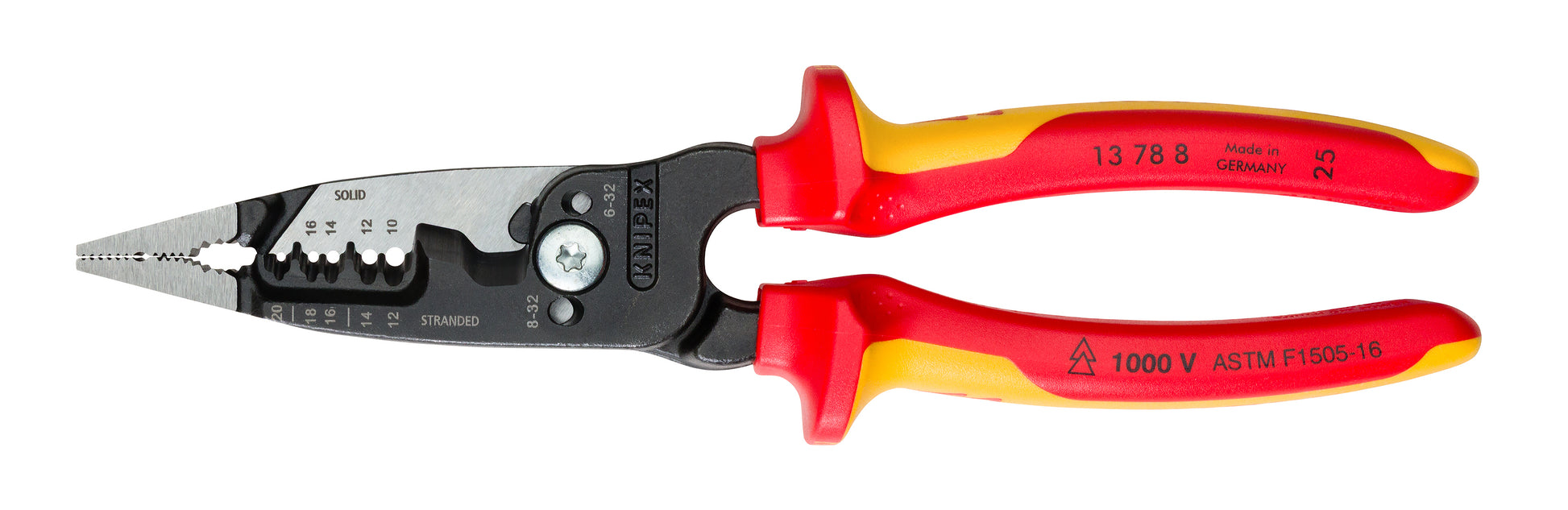

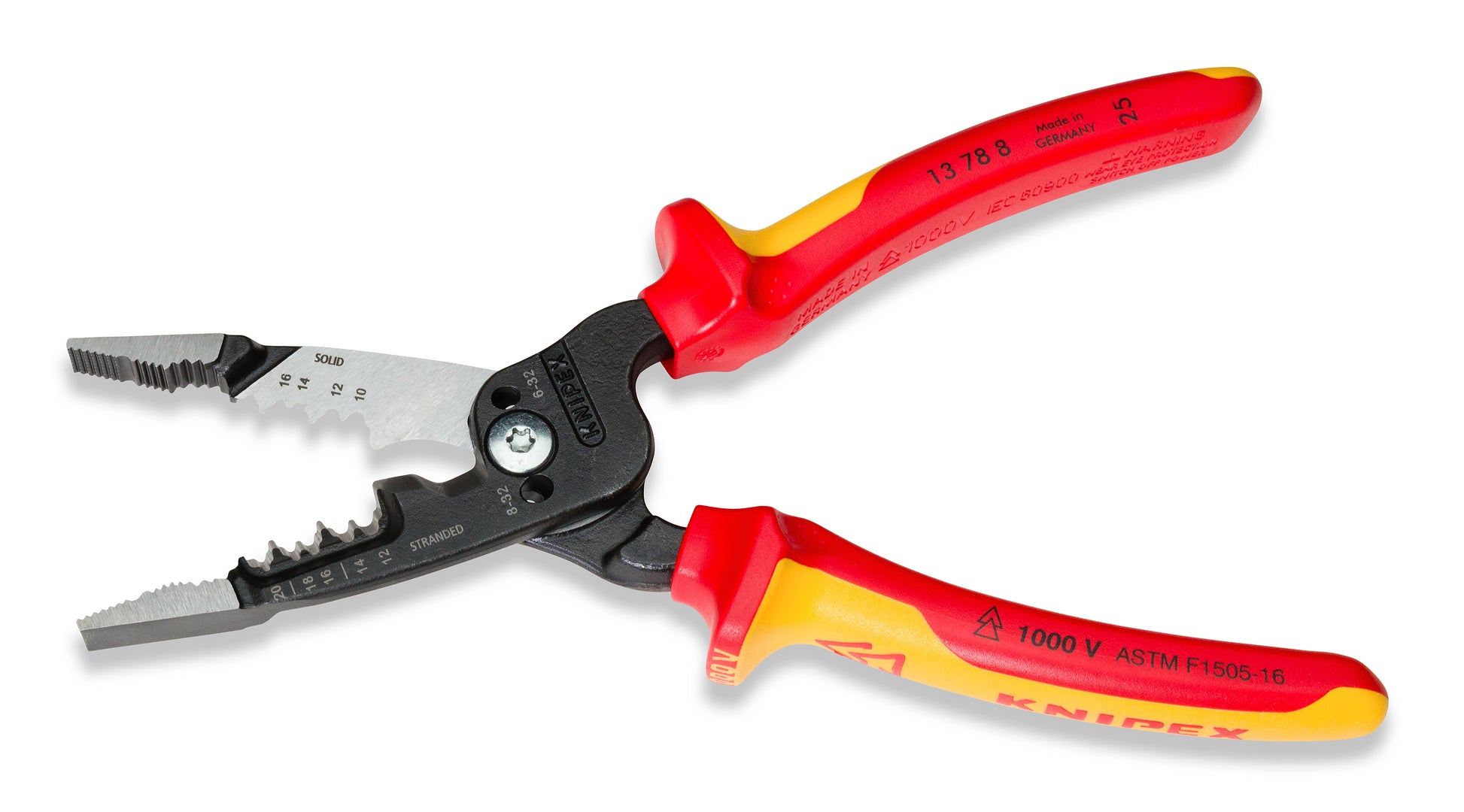

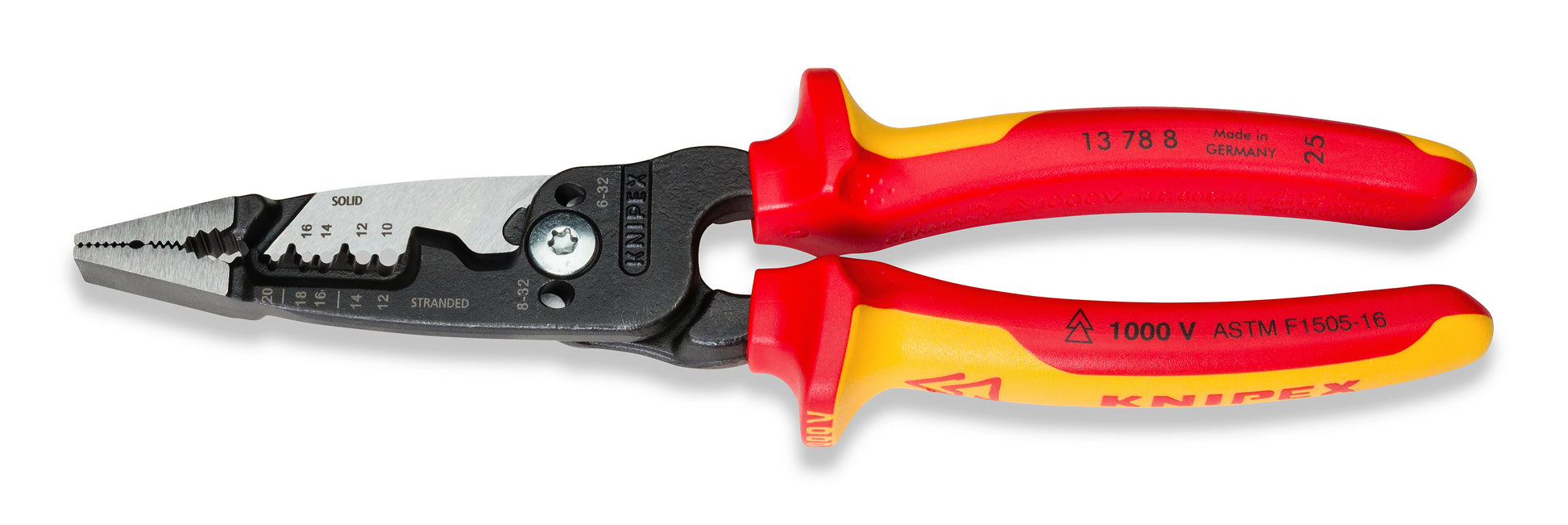

Knipex 13 78 8 SBA Forged Wire Stripper 20-10 AWG-1000V Insulated

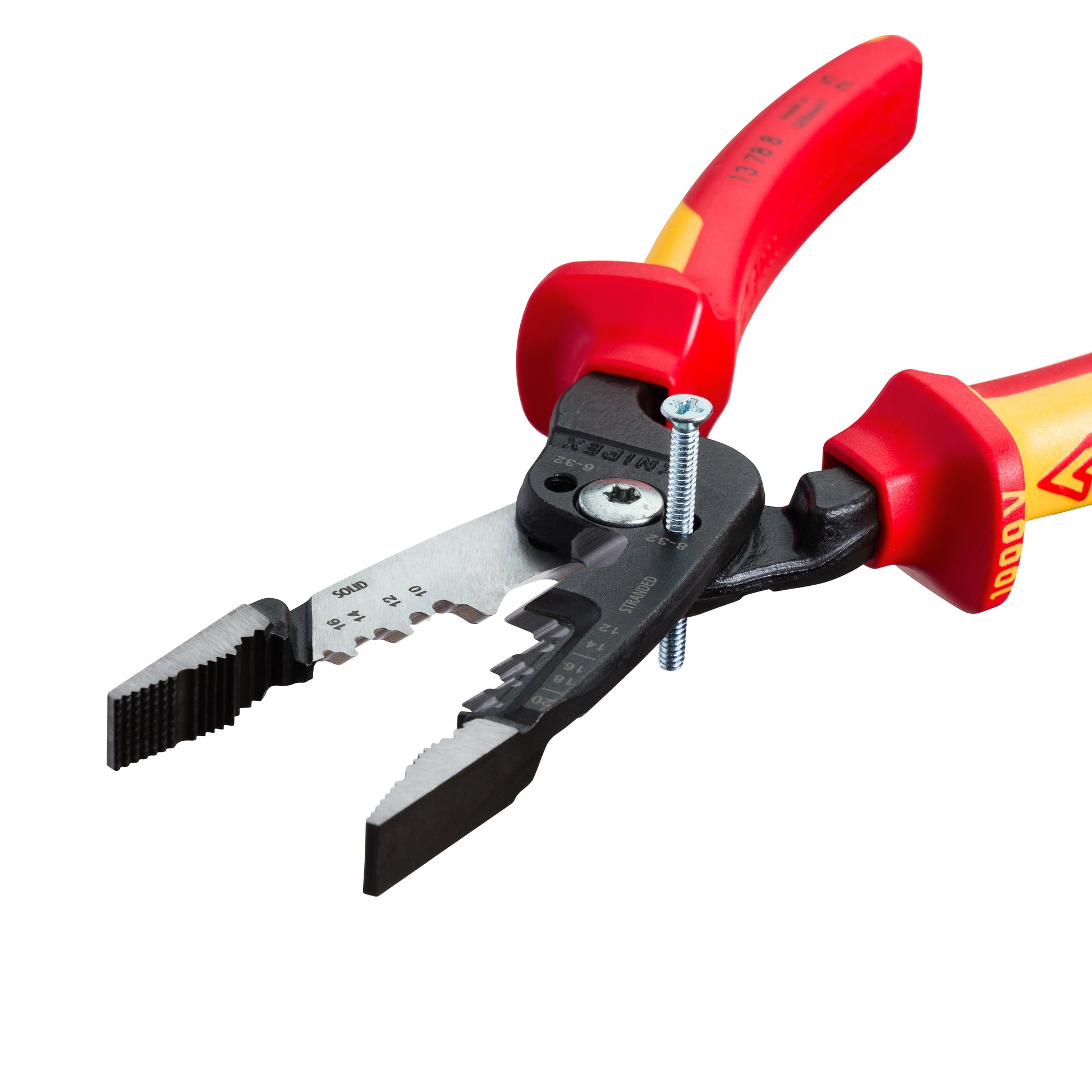

Cuts 6-32 and 8-32 screws without threading

Features

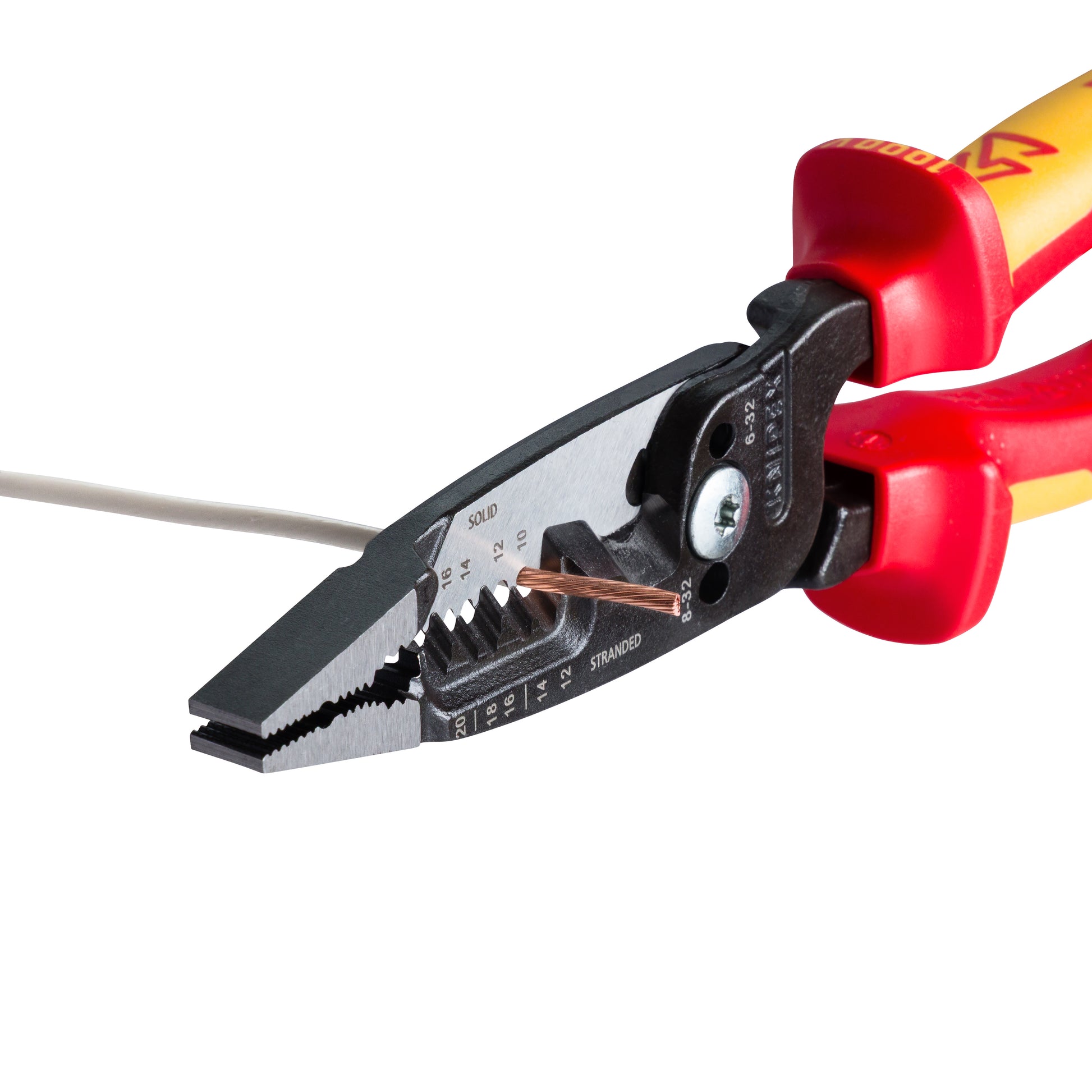

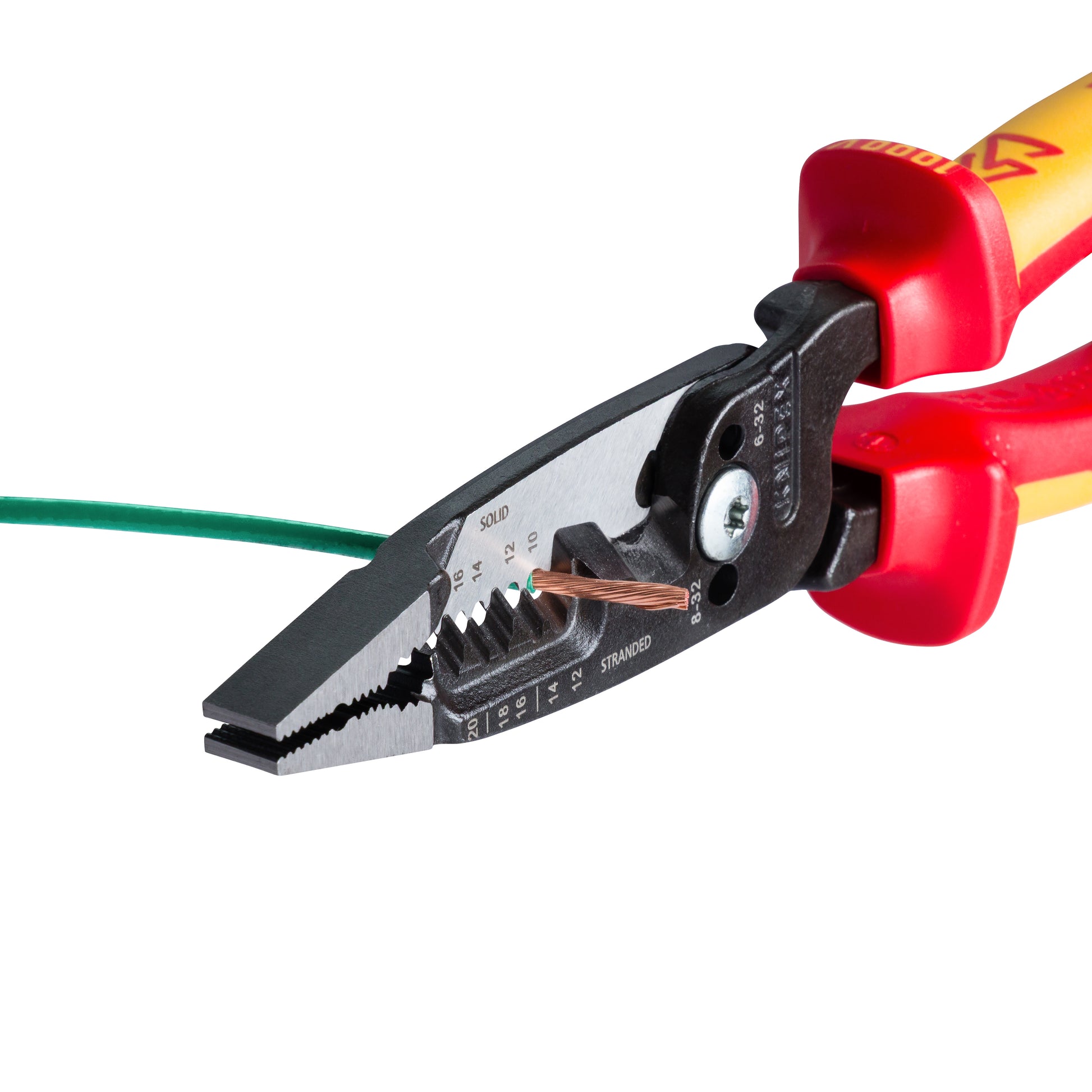

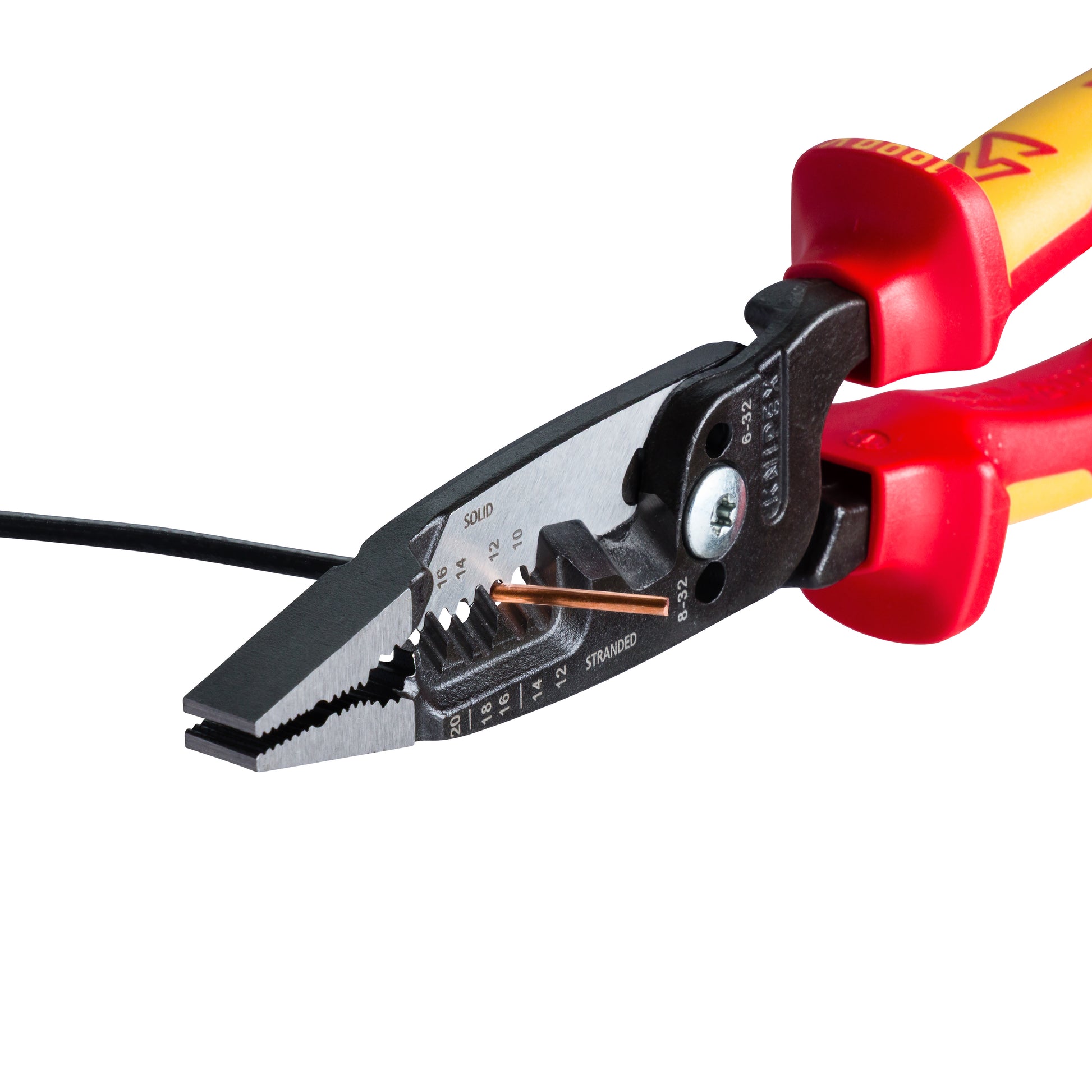

• Strips 20 to 10 AWG - both solid and stranded wire
• Locating ridges - easy to locate stripping holes by using one of the locating ridges
• Integrated opening spring makes frequent cutting easier
• Shear cutting blades offer 50% higher cutting capacity than competition

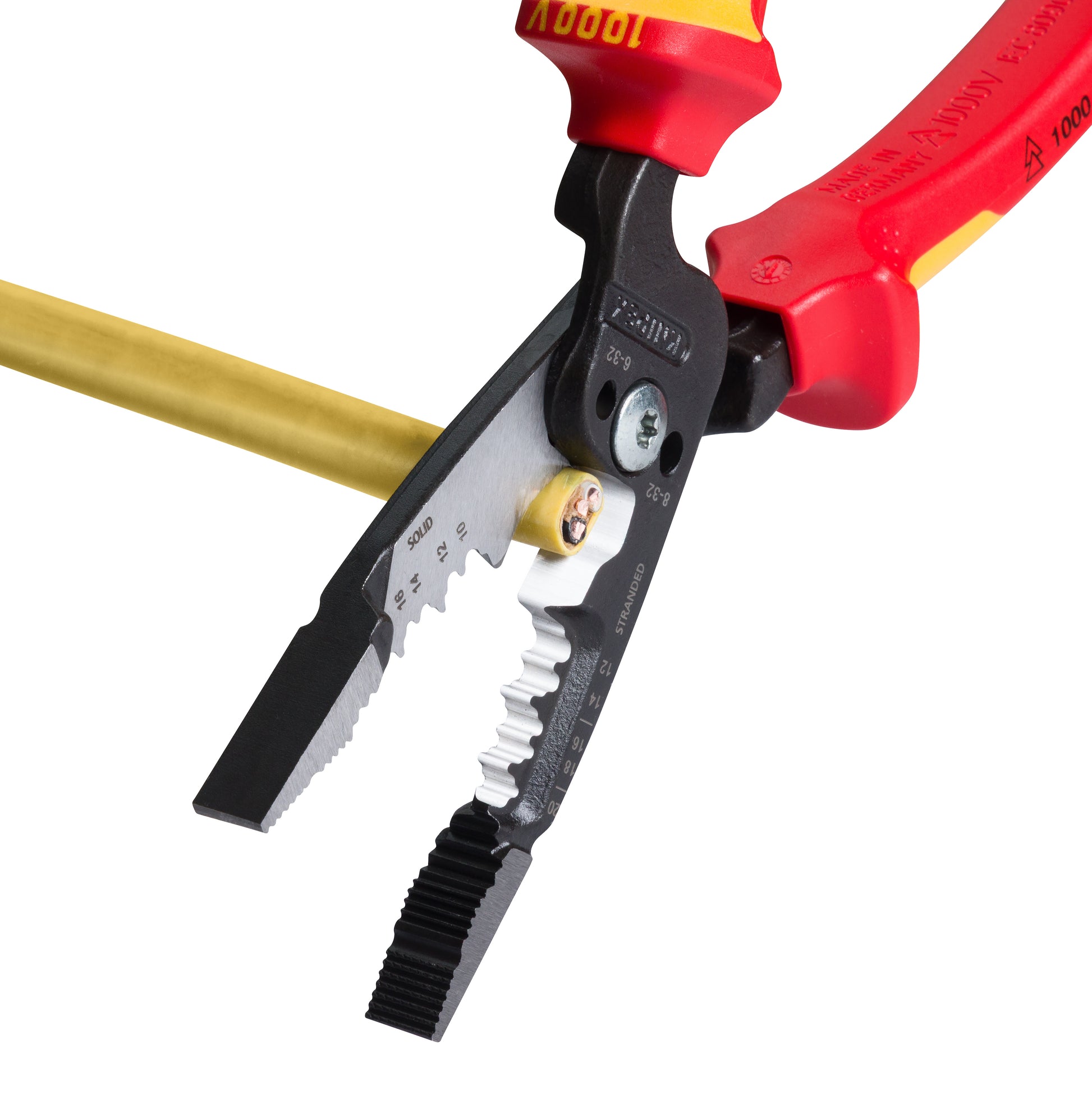

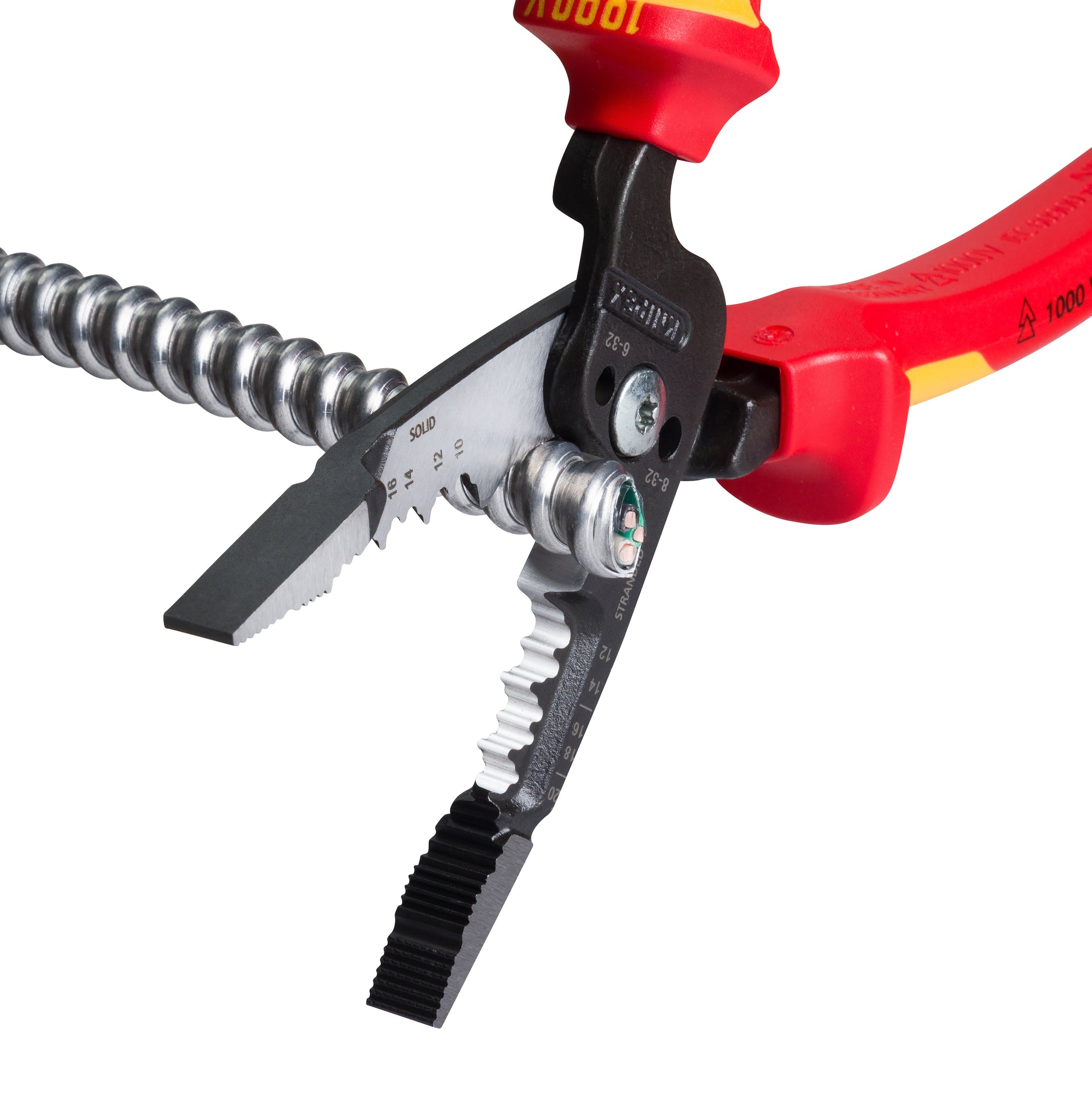

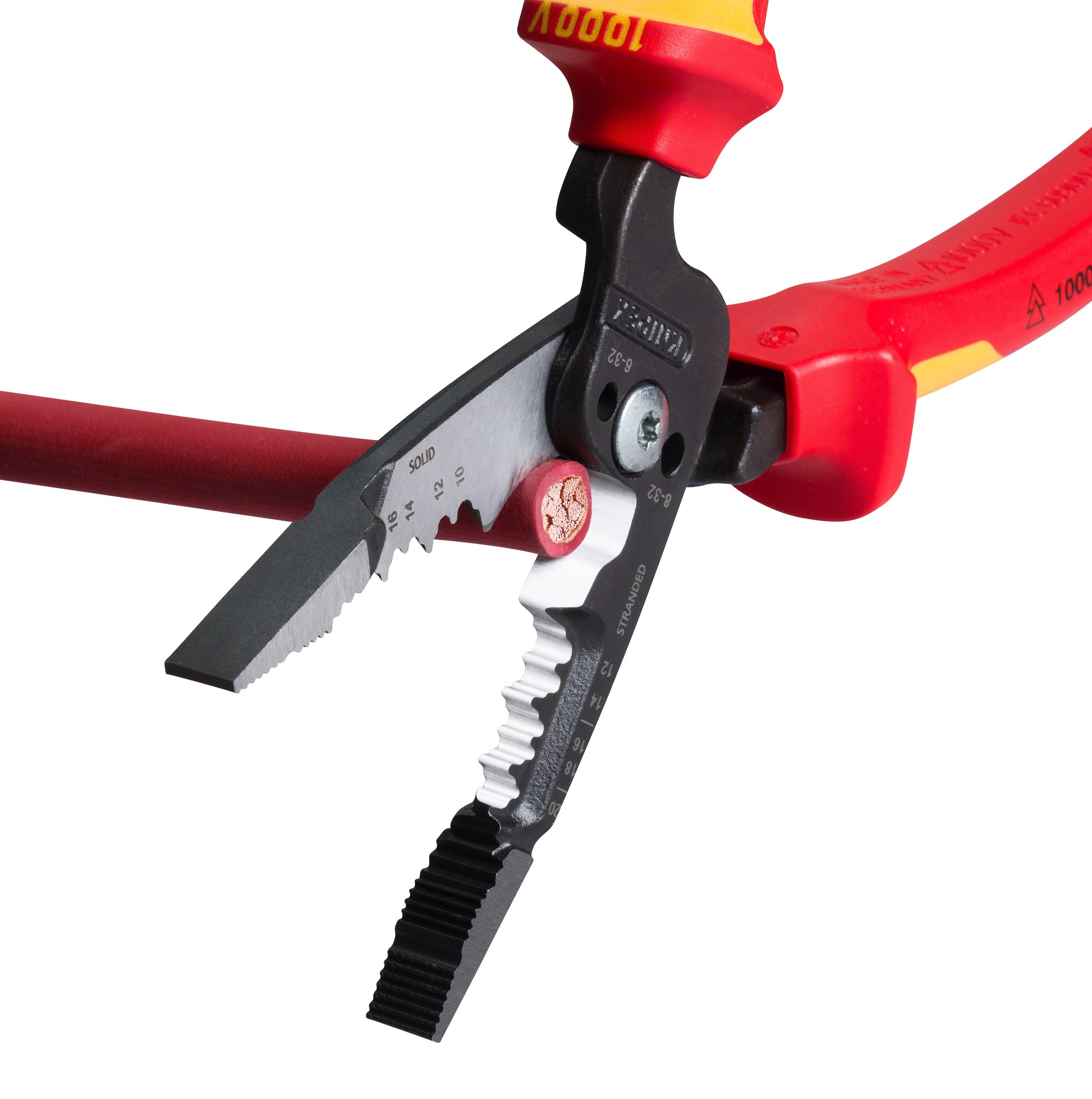

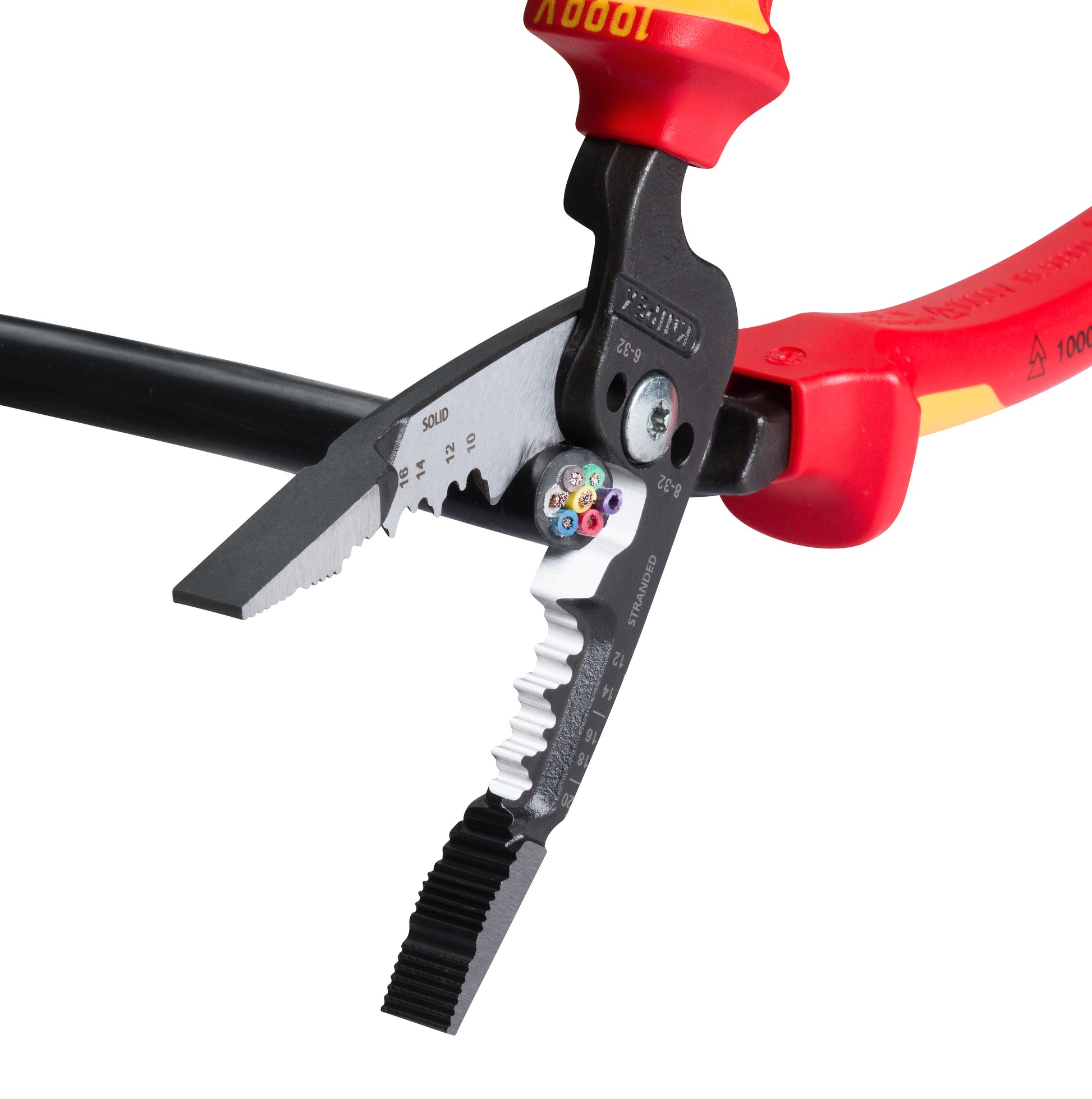

• Cuts cable, wires, NM-B, BX and MC
• Wide gripping jaws for twisting wires
• Meets requirements of ASTM F1505
• Wire looping groove to loop wire for attaching to screws
• Induction hardened blades and screw shear
• Conduit reaming for removing burrs
• High-grade special tool steel; forged, multi stage oil-hardened

Specifications

• Manufacturer Part Number: 13 78 8 SBA
• Material Type: High-grade special tool steel, forged, multi-stage oil-hardened
• Handle Type: 1000V Insulated, multi-component, ASTM
• Gripping Surface: Serrated
• Surface Finish: Polished
• Other Surface Finish: Black atramentized
• 1000V Insulated: Yes
• Tethered Enabled: false
• ESD Indicator: No
• Color: Red|Yellow
• Nominal Length: 8"
• Tool Nominal Length: 8"
• Tool Length: 8"
• Tool Width: 2.125"
• Tool Height: 0.75"
• Tool Weight: 277 g (0.61 lb)
• Joint Type: Bolted
• Handle Length: 4 1/2"
• Jaw Type: Flat
• Jaw Length: 2 5/8"
• Jaw Width: 1 1/8"
• Jaw Thickness: 1/2"
• Tip Width: 3/16"
• Tip Thickness: 3/8"
• Jaw Opening: 1 3/4"
• Cutting Edge Shape: Shear
• Cutting Edge HRC: Approx. 57 HRC
• Cable Cutting Capacity: 1/2"
• Stripping Capacity: 20 to 10 AWG
• Stripping Capacity - AWG: 20 to 10
• UPC: 843221031176
