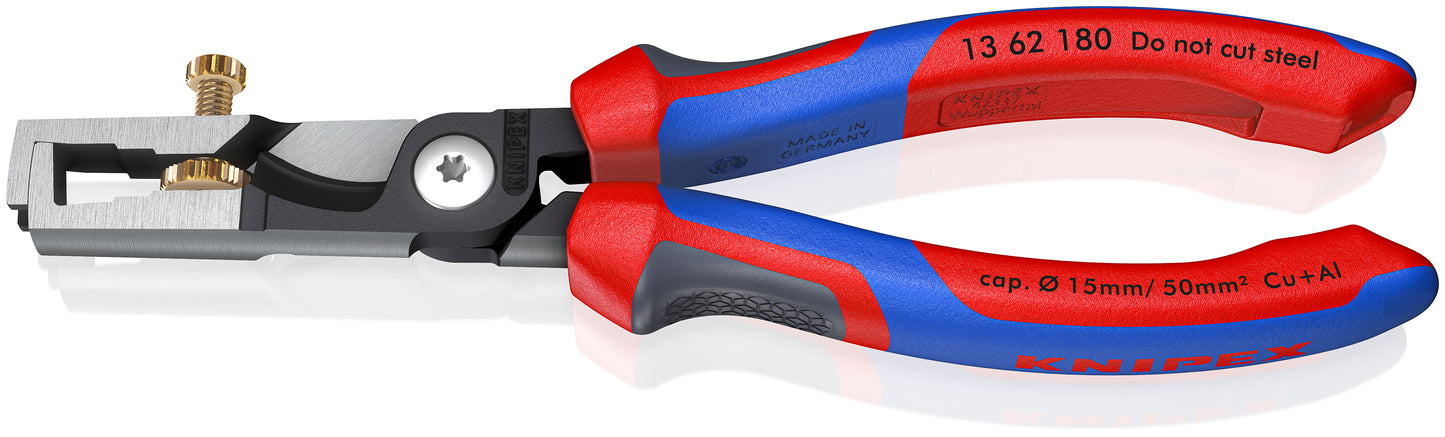

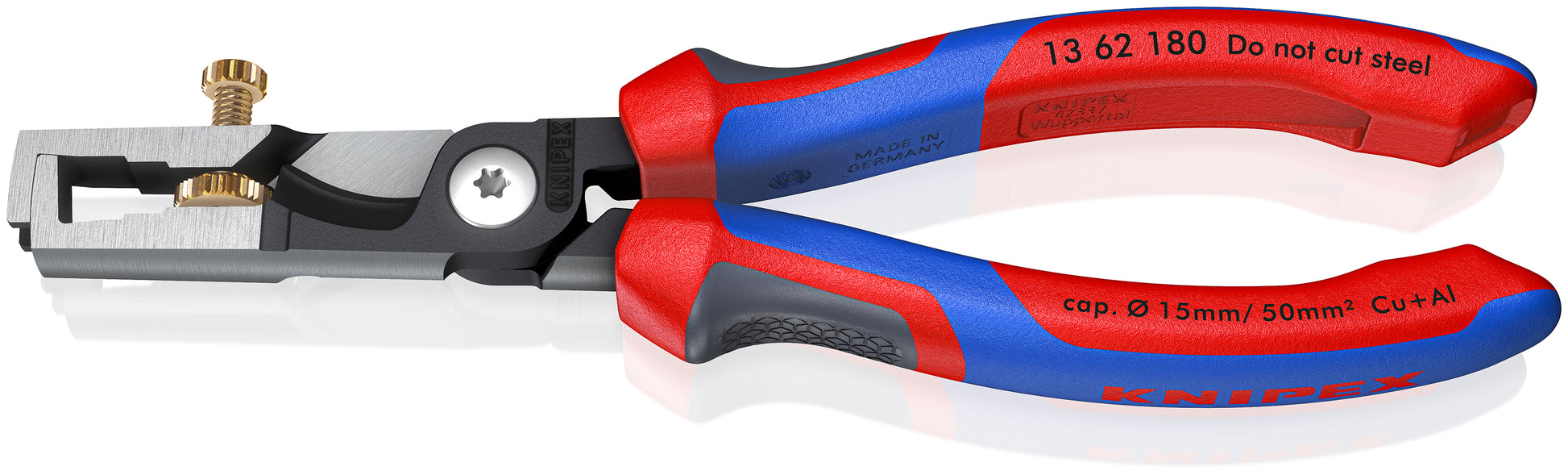

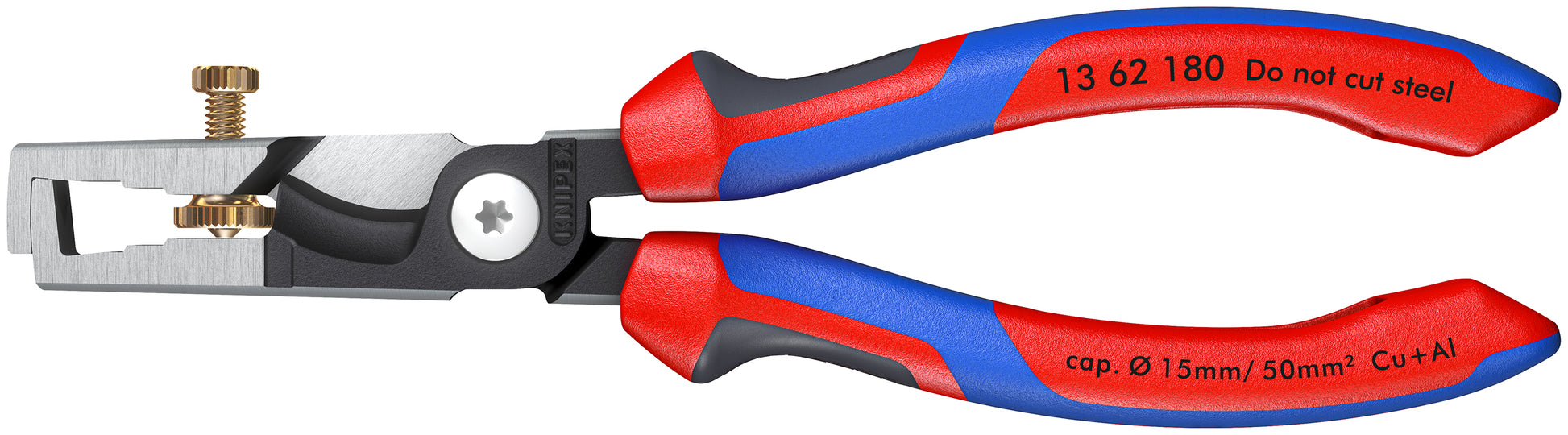

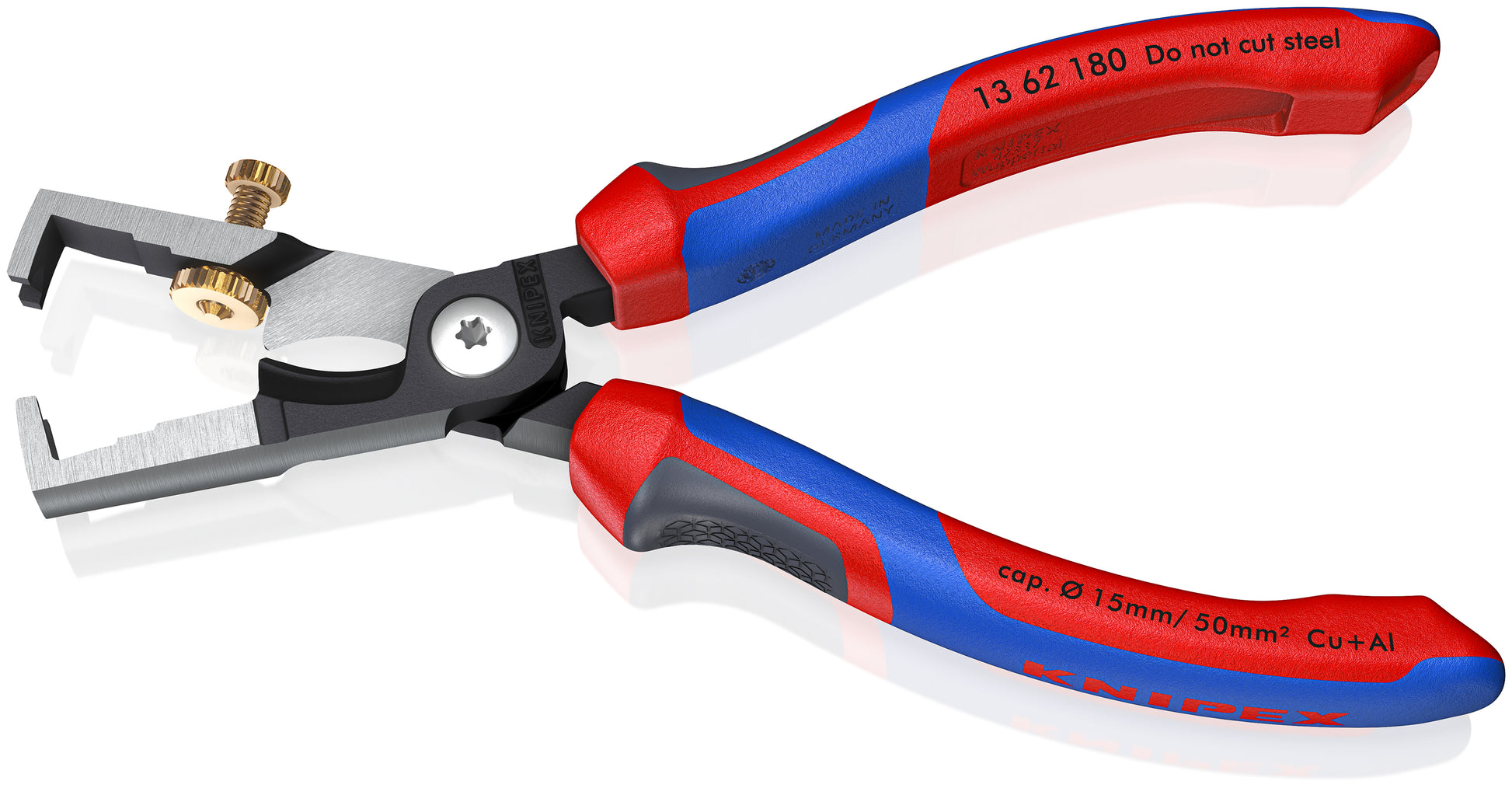

Knipex 13 62 180 Strix® Insulation Strippers with Cable Shears

KNIPEXTEND comfort handles make it easy to identify your tools and utilize the KNIPEX TetheredTool System lanyards and adapters by simply adding KNIPEXTEND ColorCoded Clips and TetheredTool Clips (KNIPEXTEND accessories sold separately)

Features

• Insulation strippers with Cable Shears – two essential electrical installation tools in one pair of pliers

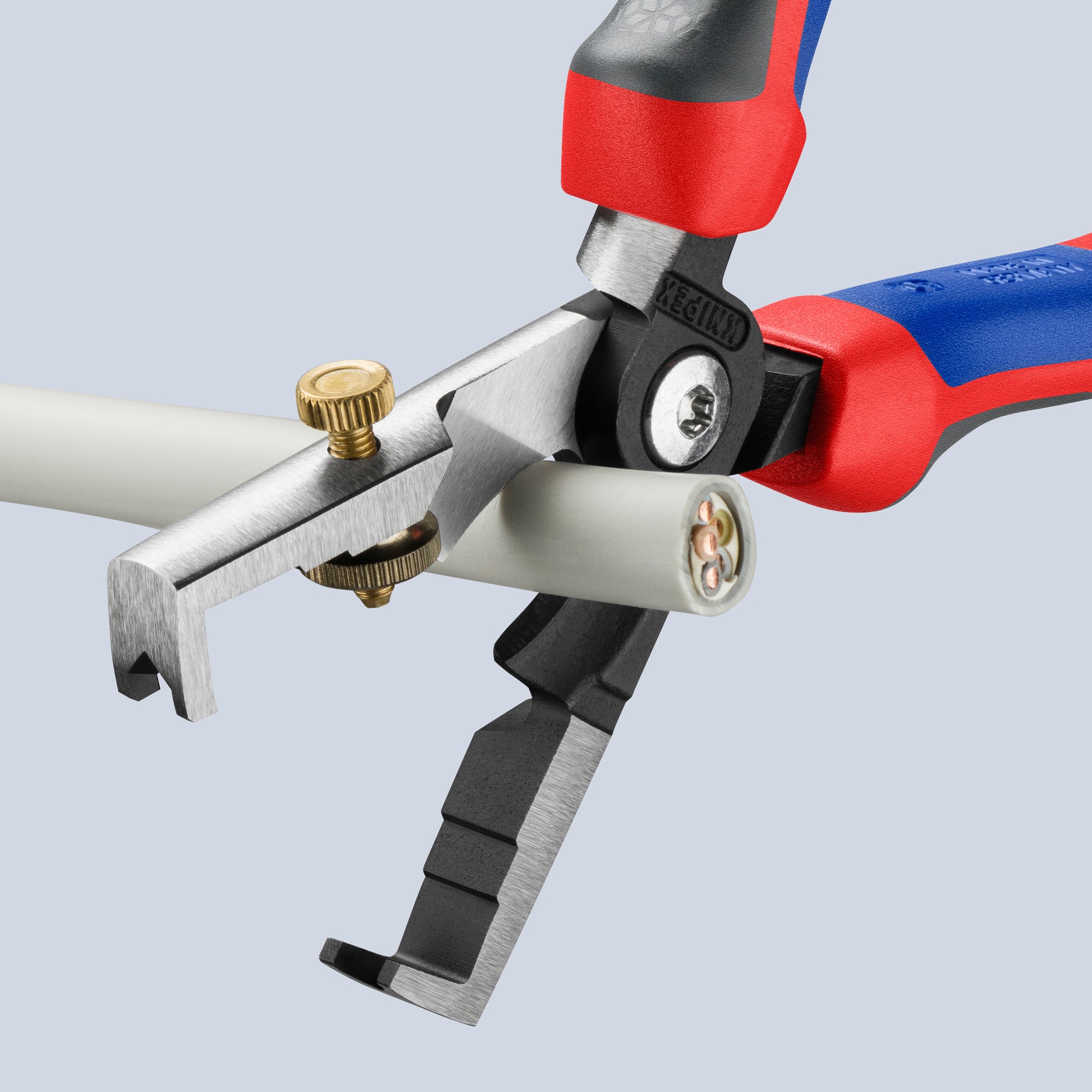

• Integrated cable shears for clean cutting of copper and aluminum cables without crushing

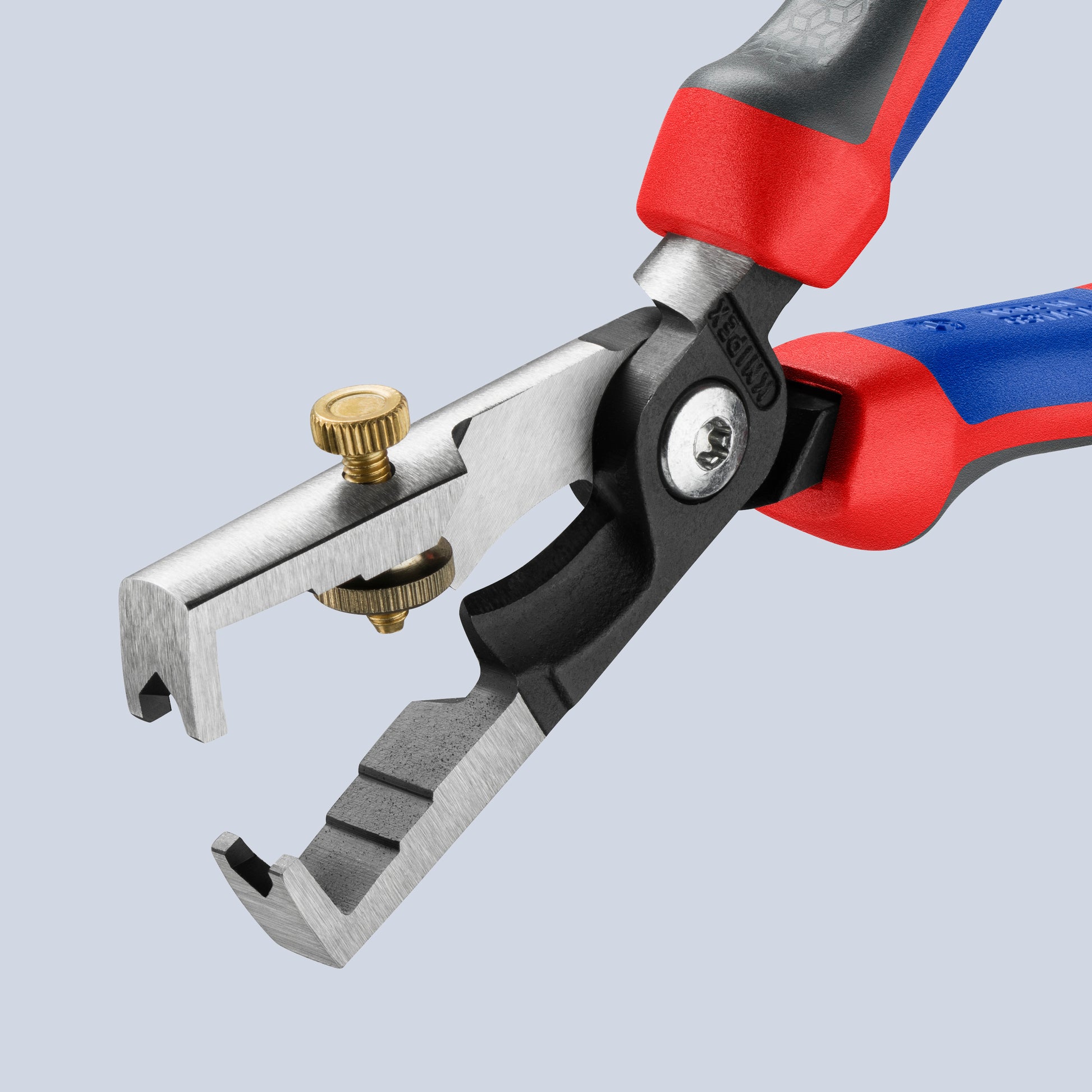

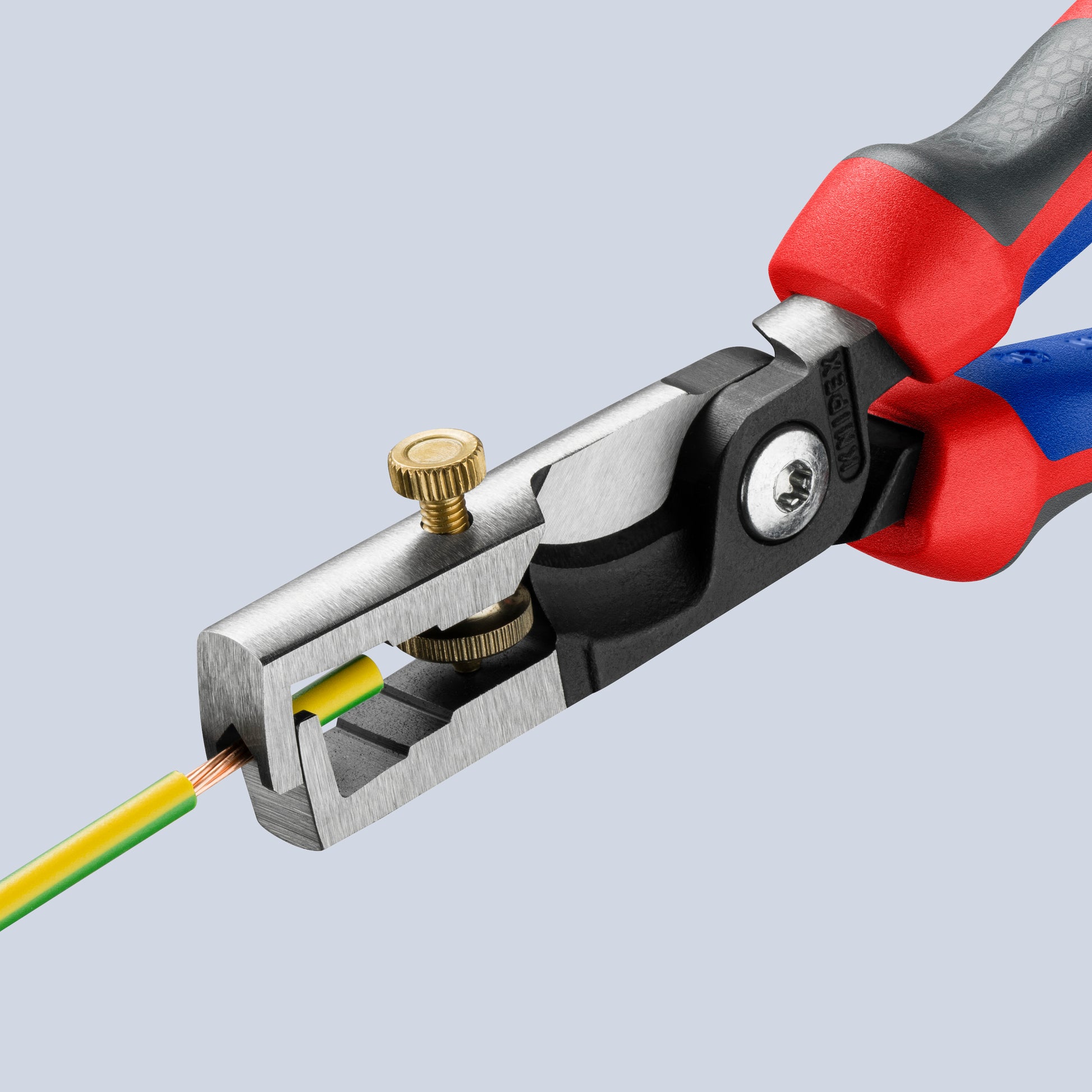

• Universal adjustment of the wire stripping blades with knurled screw
• Slim design allows for easy access into confined areas

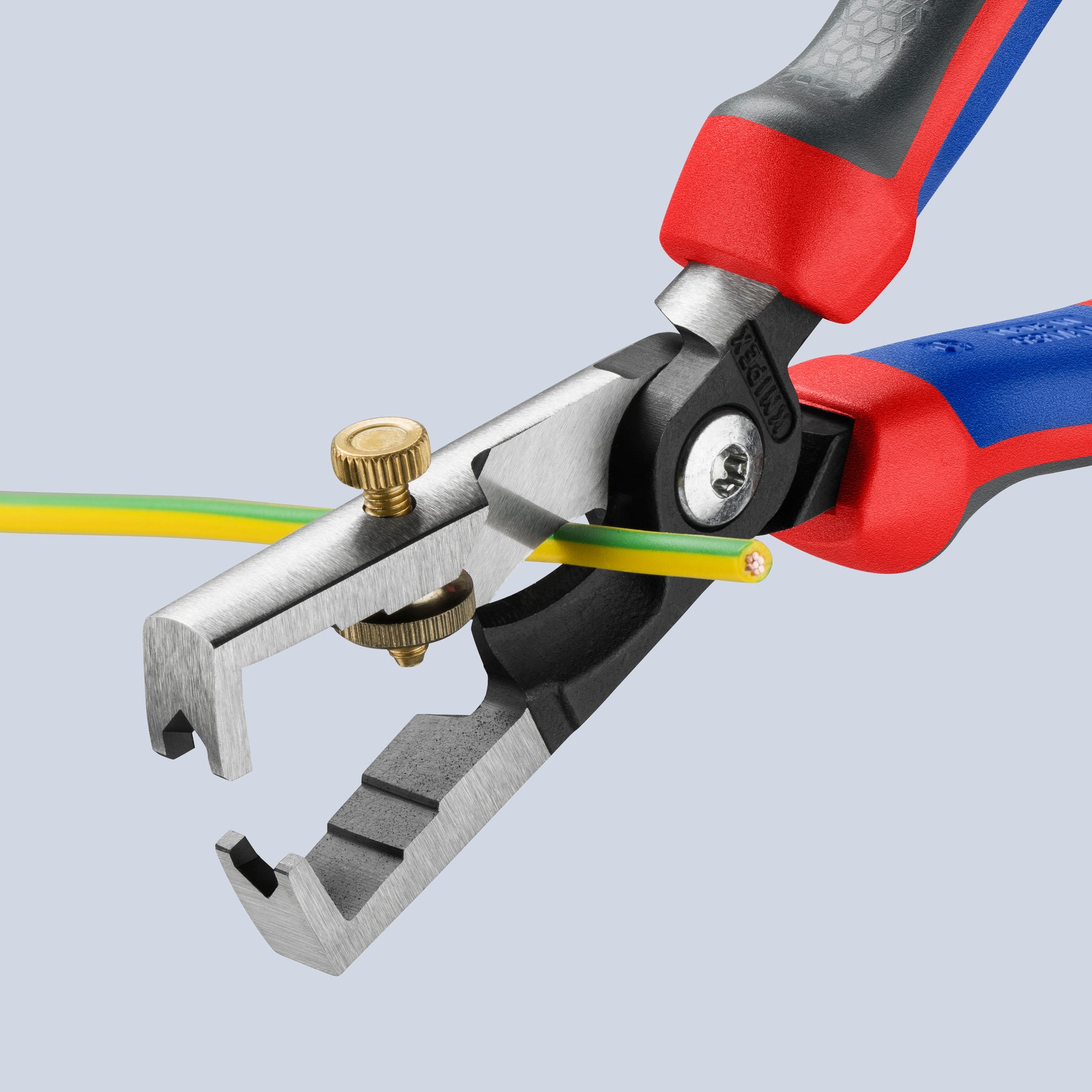

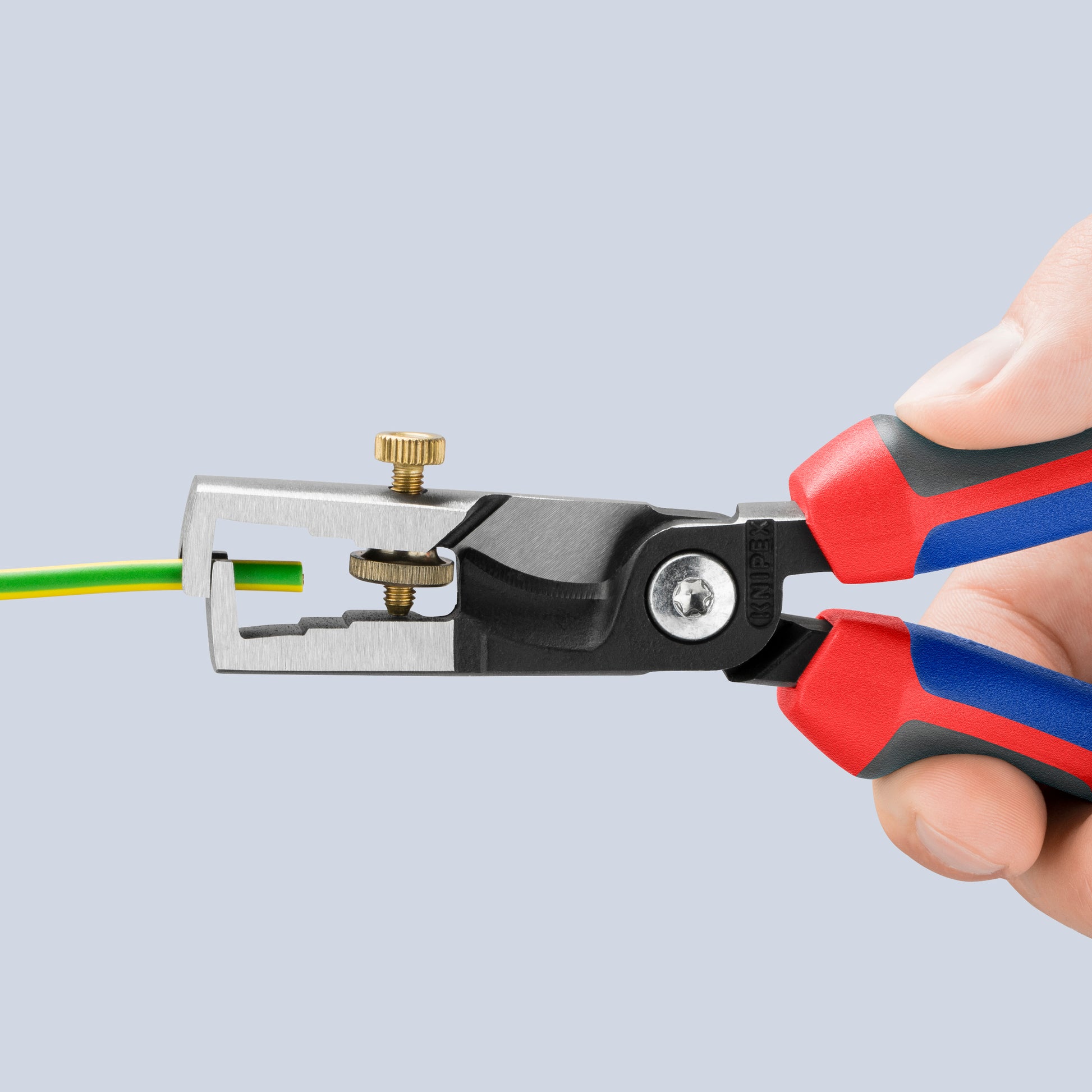

• For stripping single, multiple and fine stranded conductors with plastic and rubber insulation up to a max. Ø 5 mm or 10 mm2 conductor cross-section

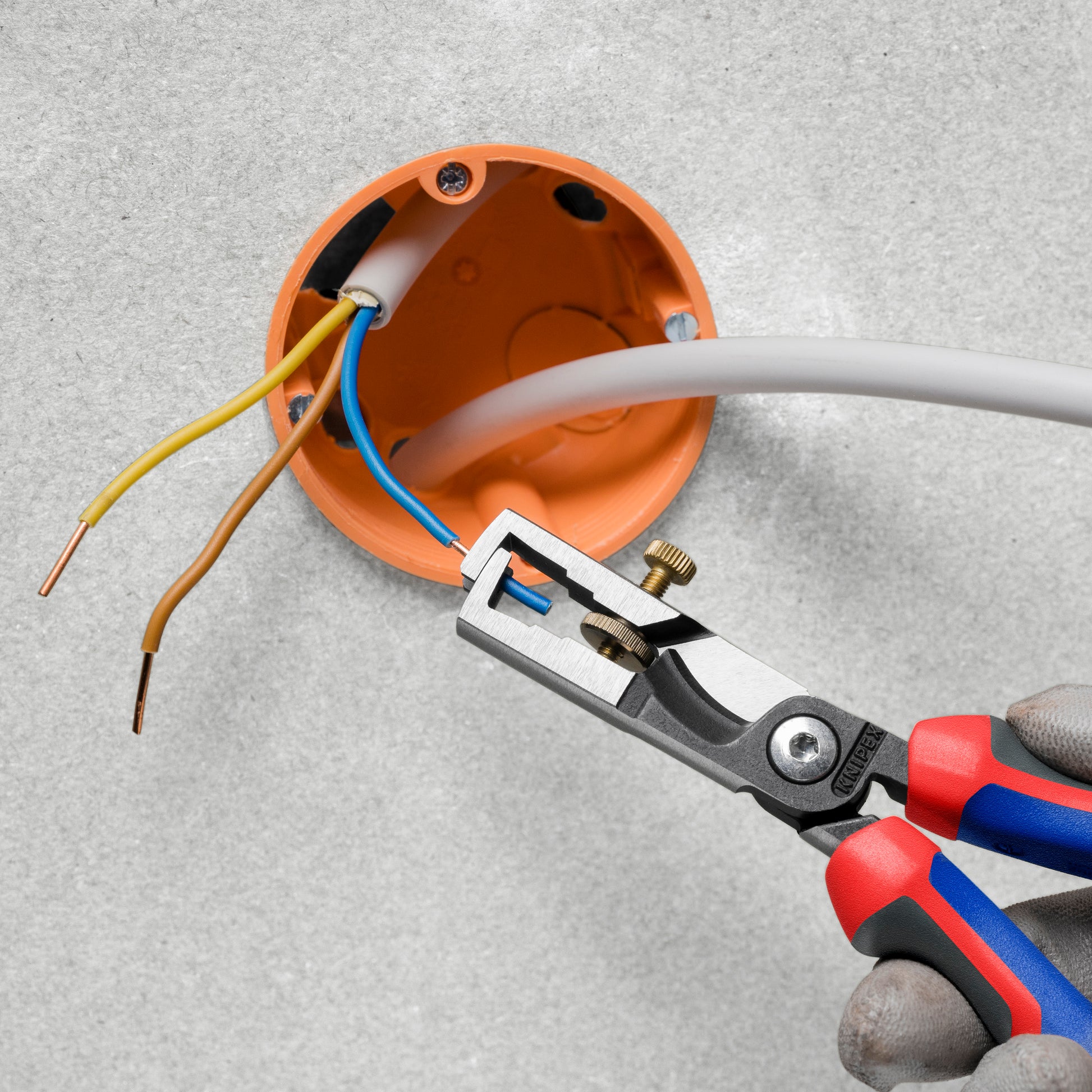

• Graduated jaw is a visual guide when stripping wire in standard lengths of 7/16" (11 mm) and 5/8" (16 mm)
• HANDLES HAVE RECENTLY UNDERGONE A REDESIGN, SO THE AVAILABILITY OF THE NEW DESIGNS AT DISTRIBUTORS WILL DEPEND ON THEIR CURRENT INVENTORY LEVELS

Specifications

• Manufacturer Part Number: 13 62 180
• Sub Brand Name: Strix®
• Material Type: High-grade special tool steel, forged, multi-stage oil-hardened
• Handle Type: KNIPEXTEND Comfort Handle
• Surface Finish: Polished
• Other Surface Finish: Black atramentized
• 1000V Insulated: No
• Tethered Enabled: false
• Color: Blue|Gray|Red
• Nominal Length: 7 1/4"
• Tool Nominal Length: 7.25"
• Tool Length: 7.25"
• Tool Width: 2"
• Tool Height: 0.75"
• Tool Weight: 199 g (0.438 lb)
• Joint Type: Bolted
• Cutting Edge Shape: Shear
• Cutting Edge HRC: Approx. 57 HRC
• Cutting Capacity - Cu and Al conductor: 9/16" (15 mm)
• Stripping Capacity: 5.0 mm
• Stripping Capacity - AWG: 8
• Accessory Part Number: 00 63 06TCR SBA|00 61 10 01 SBA|00 61 10 02 SBA|00 62 10 TR SBA|00 61 10 CA SBA|00 61 10 CR SBA|00 61 10 CB SBA|00 61 10 CY SBA|00 61 10 CO SBA|00 61 10 CG SBA|00 61 10 CV SBA|00 61 10 CM SBA|00 61 10 CS SBA|00 61 10 CW SBA
• UPC: 843221023089
