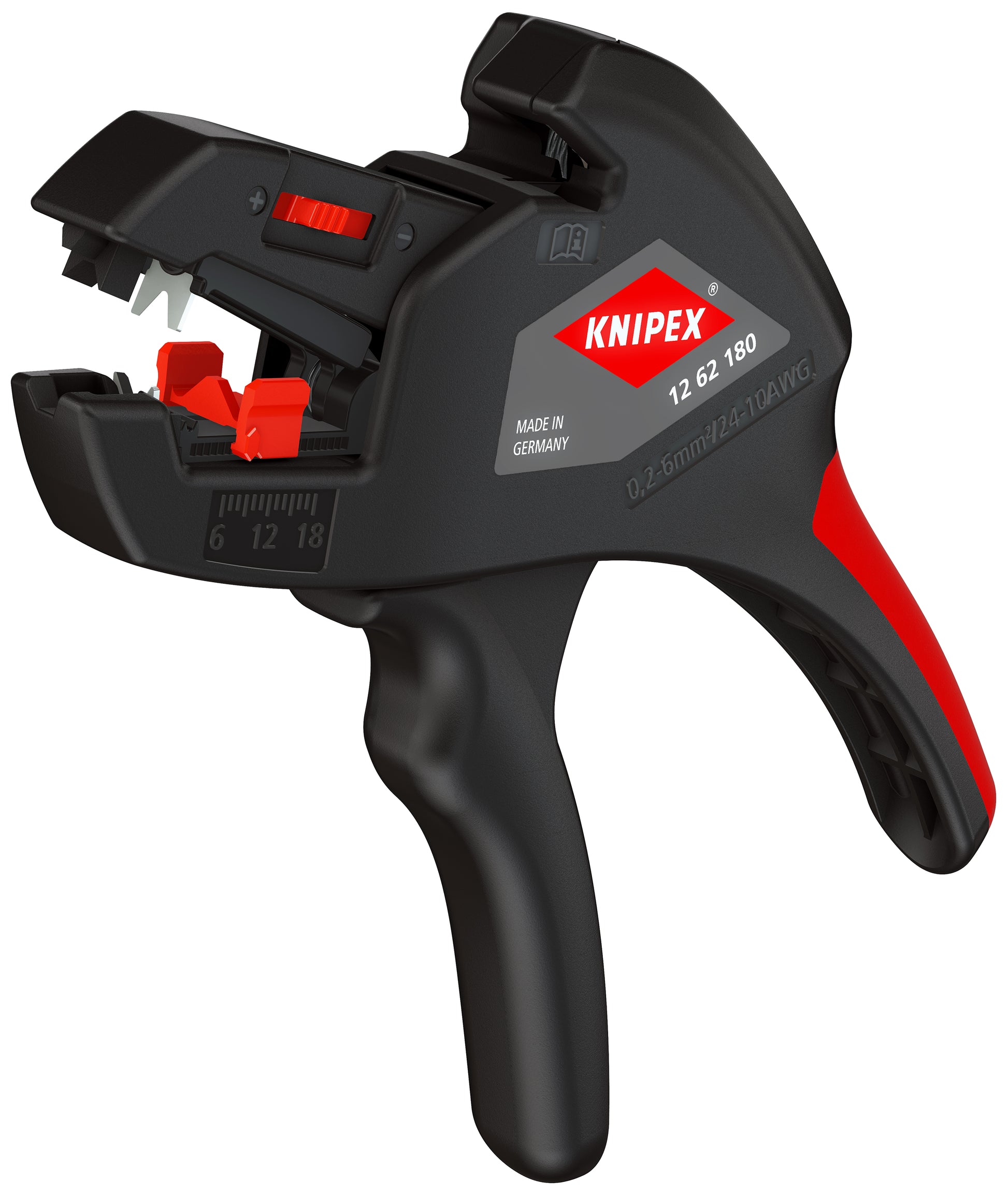

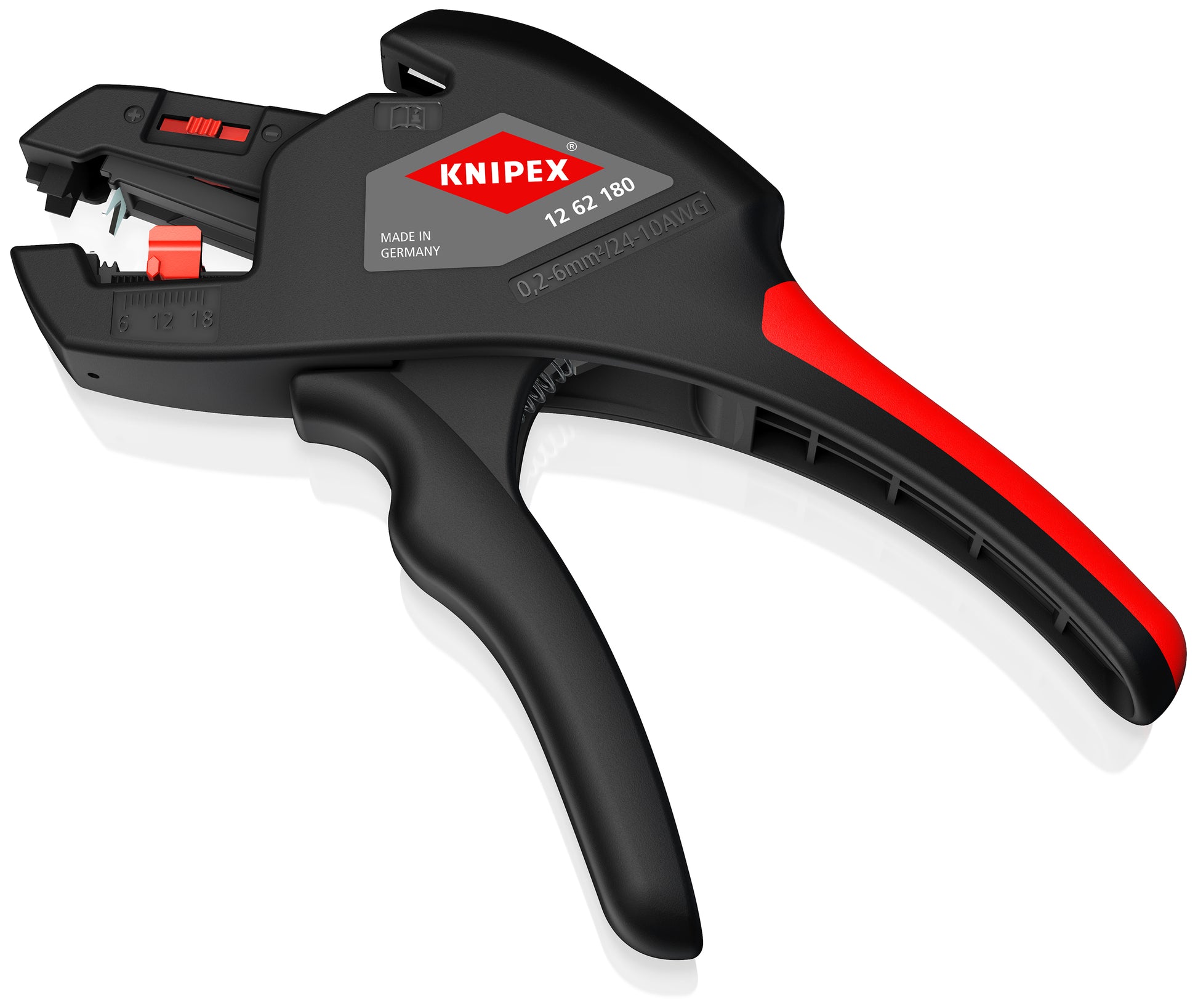

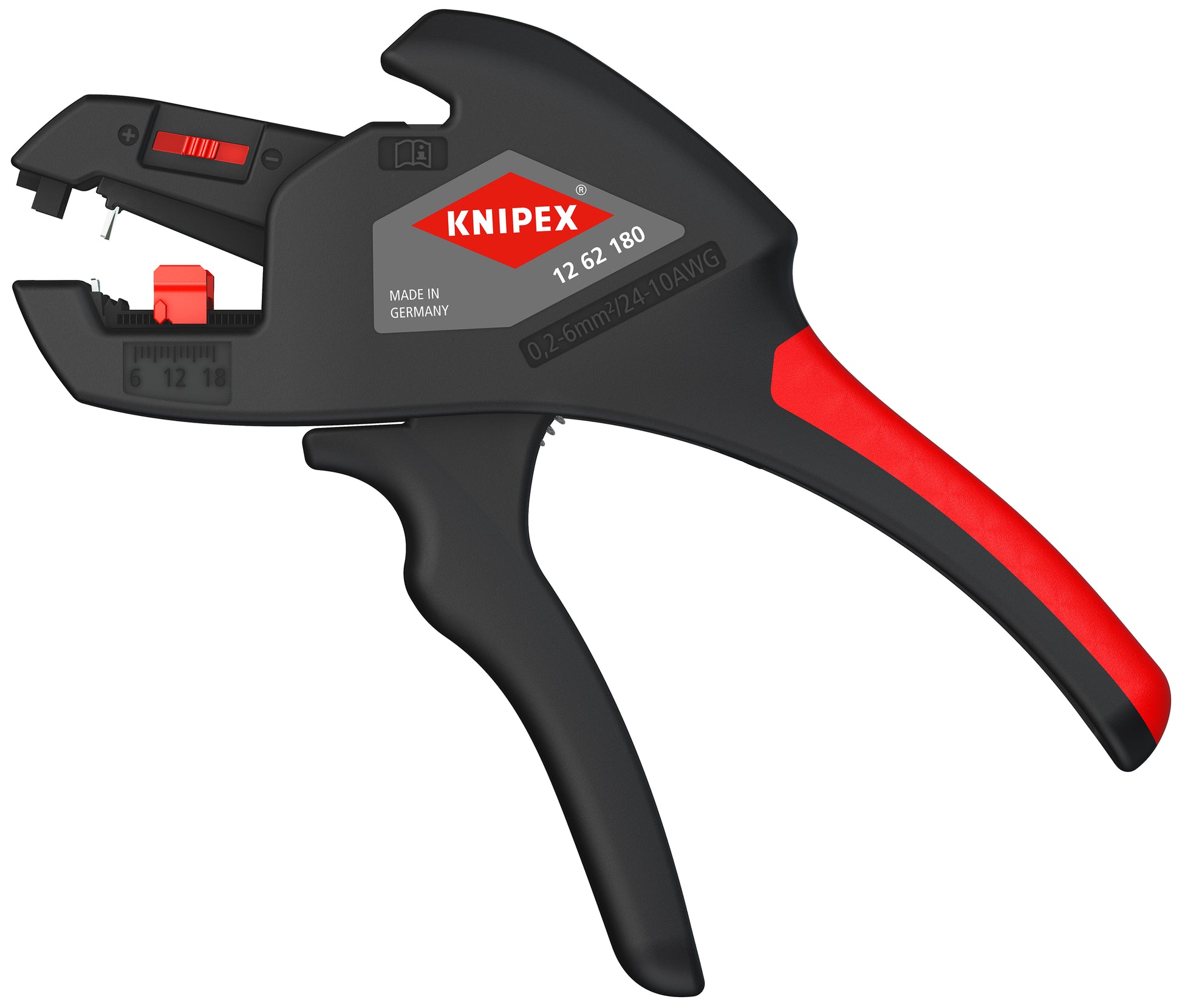

Knipex 12 62 180 SBA Automatic Wire Stripper 10-24 AWG

For single, multi and fine stranded cables from 10 AWG (6 mm2) to 24 AWG (0.2 mm2) with standard PVC insulation

Features

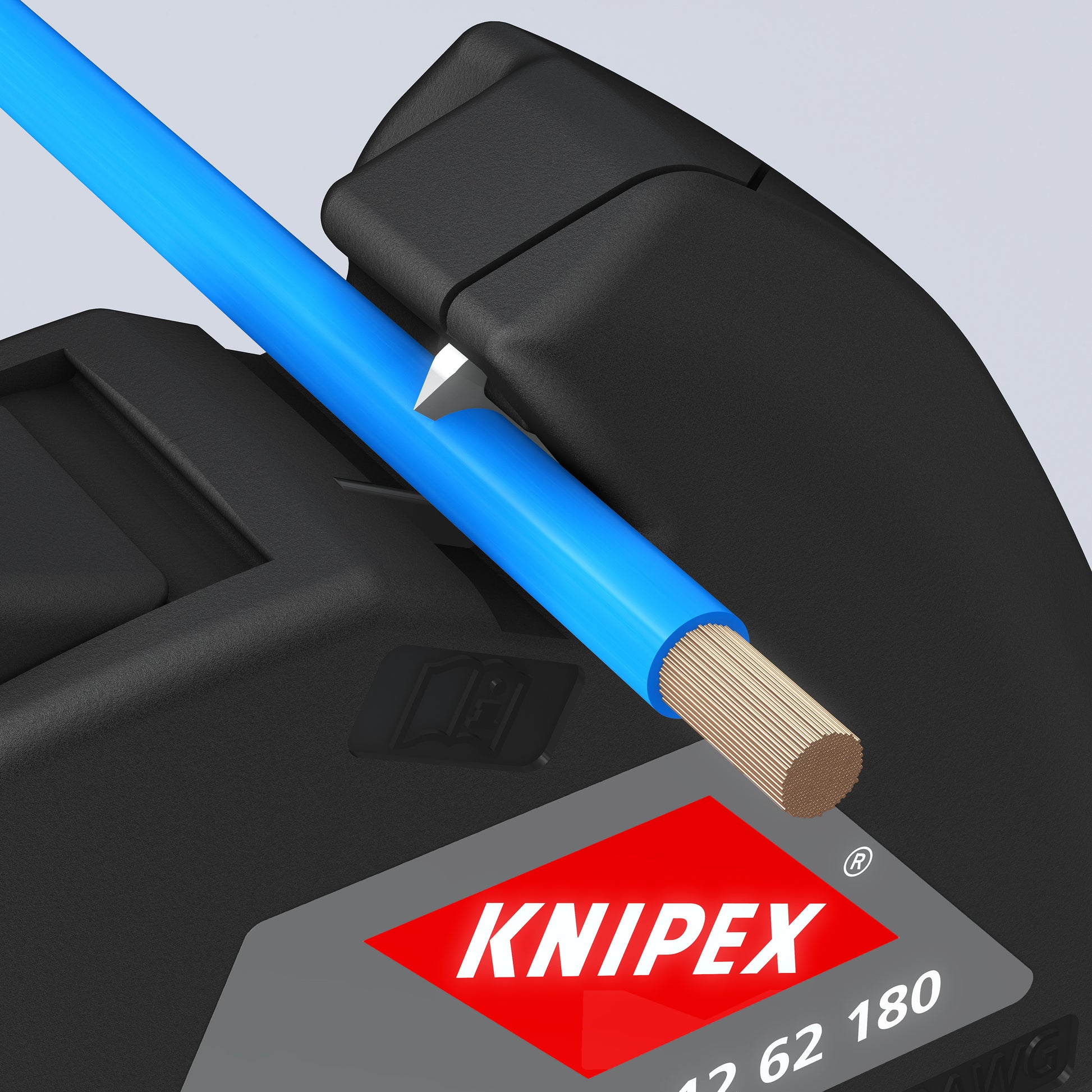

• Adapts automatically to the respective cable diameter preventing damage to the conductor

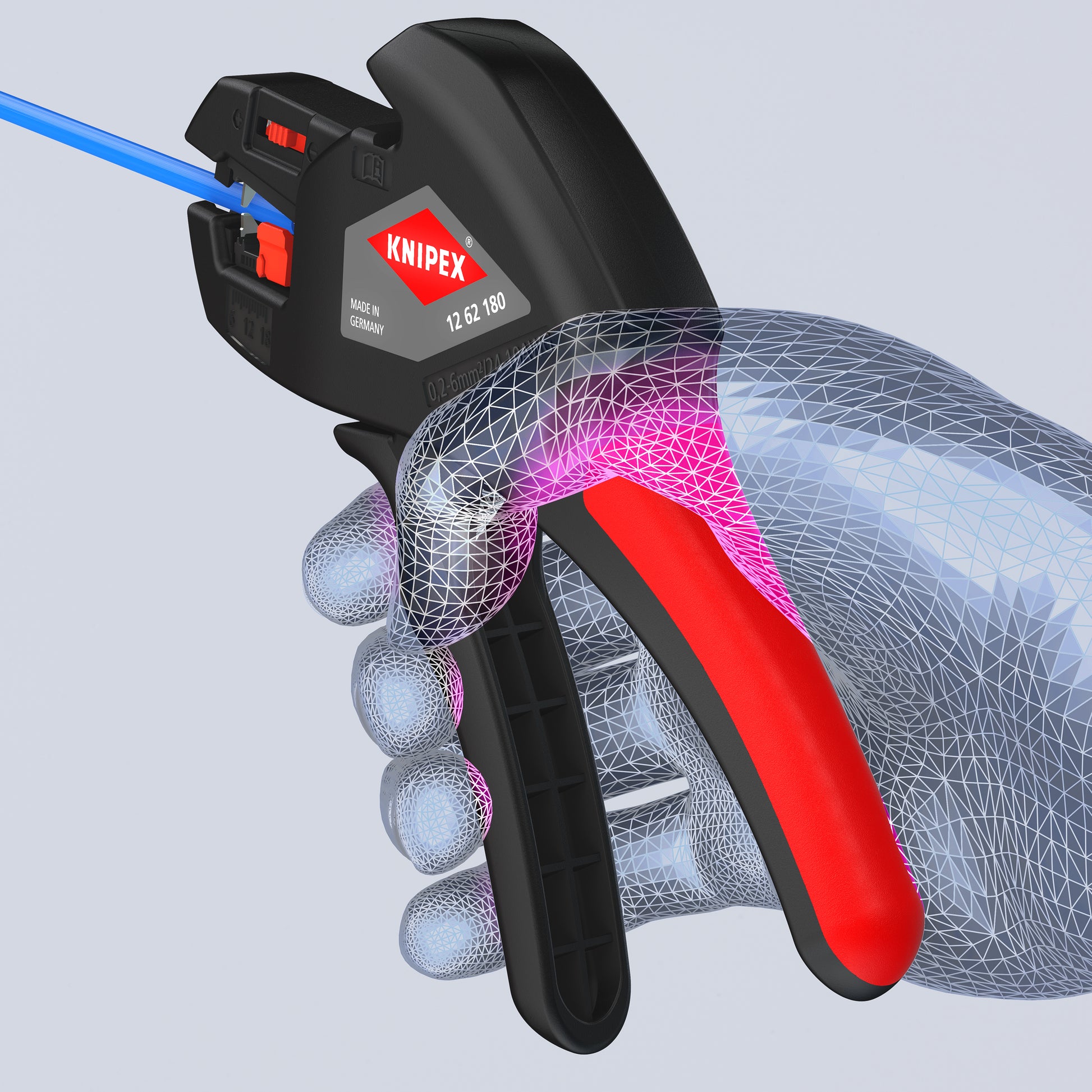

• Comfortable and lightweight for easy operation
• Narrow head style for use in confined areas
• Wire cutter for copper and aluminum wires up to 14 AWG (solid) and 10 AWG (stranded)

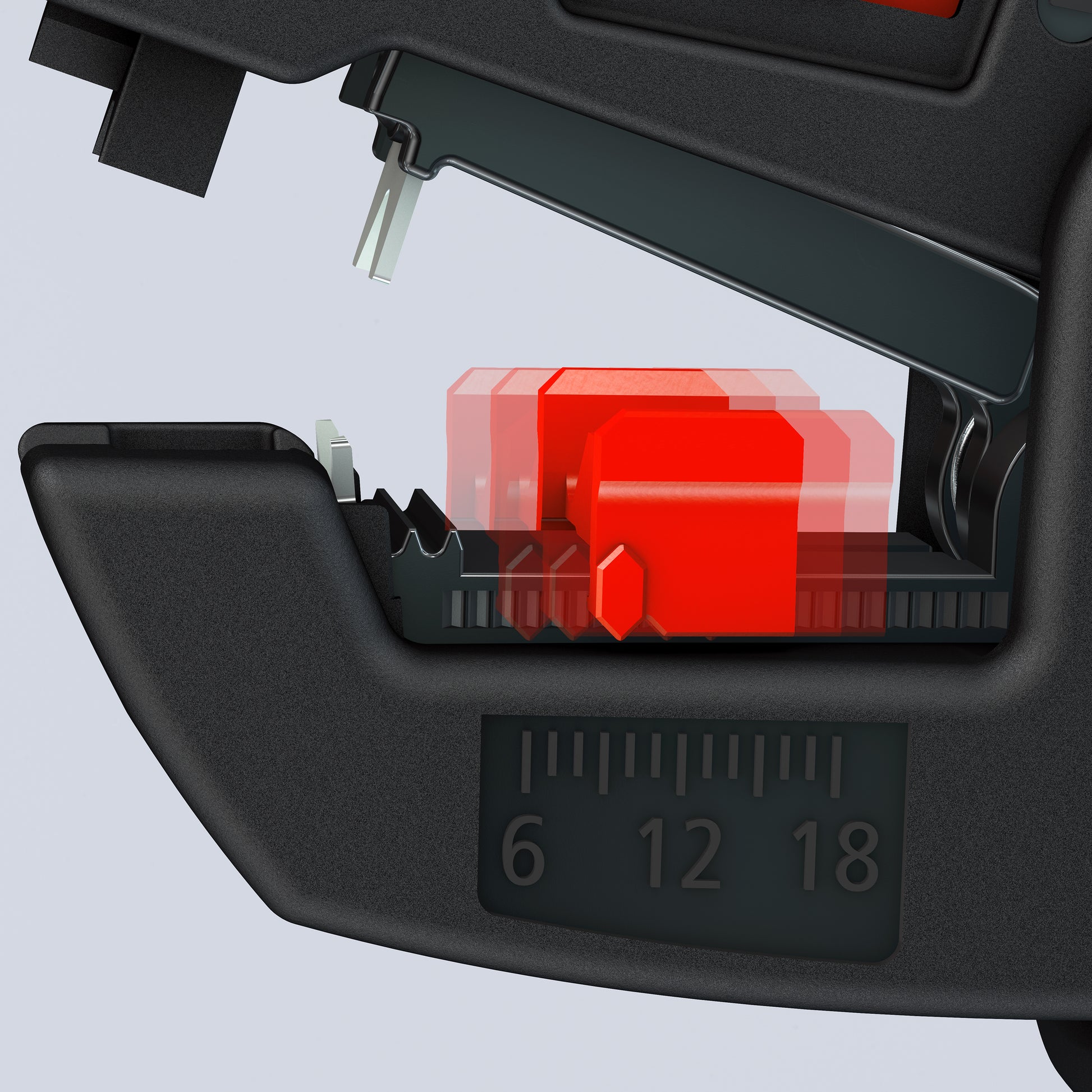

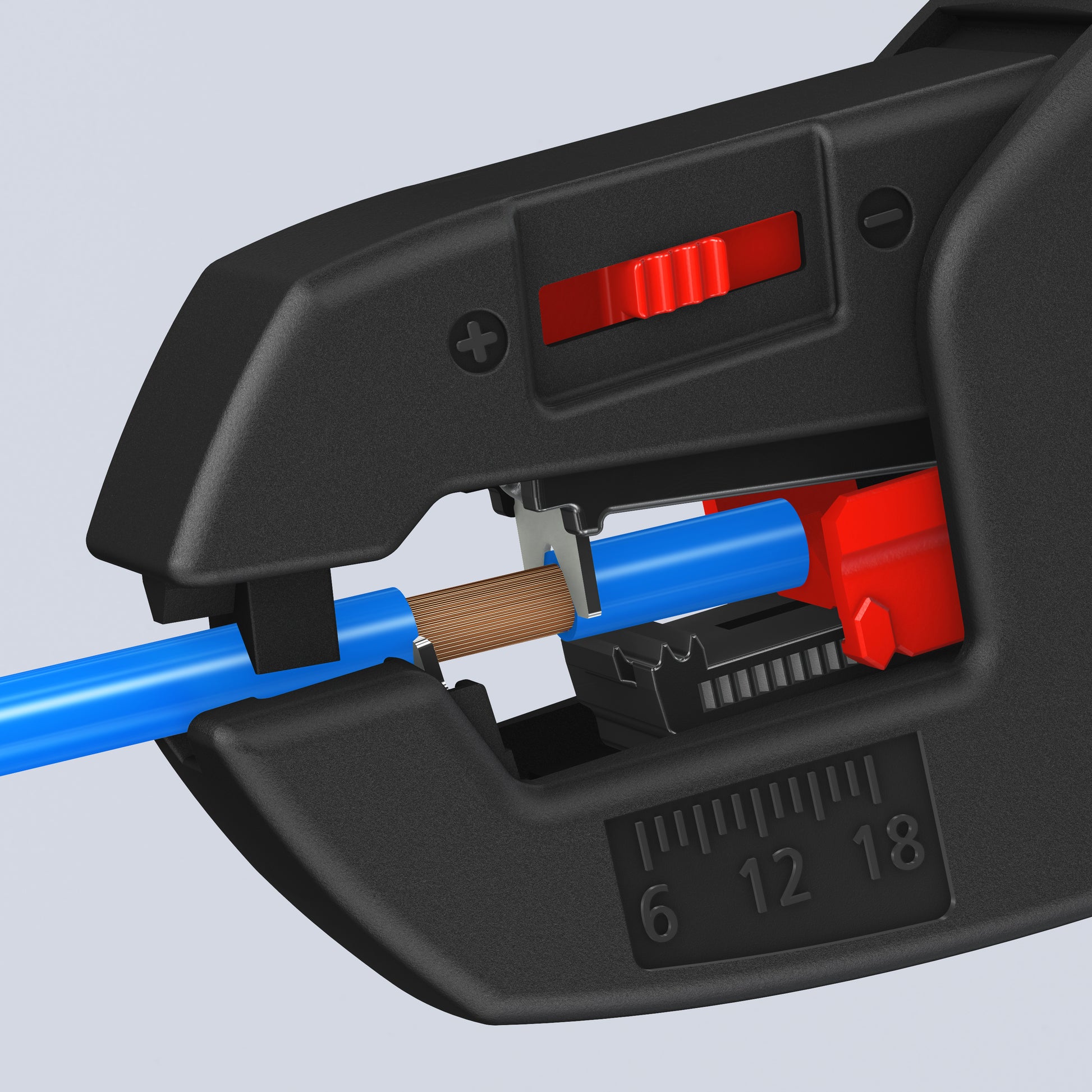

• Adjustable length stop from 1/4" – 11/16" (6.0 – 18.0 mm) for stripping the same lengths during repetitive work

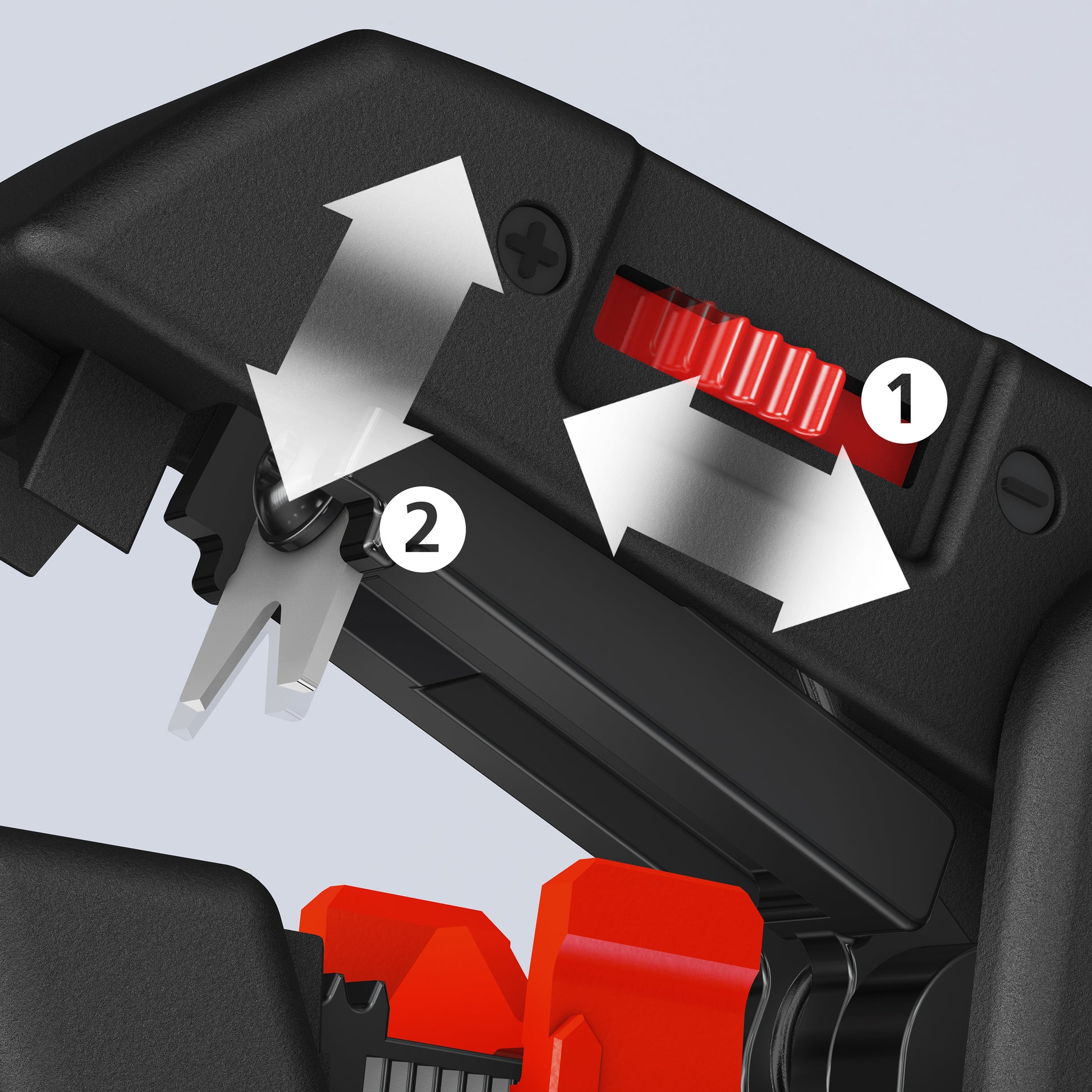

• Fine adjustment slider enables precise setting of the cutting depth for special materials or temperature conditions
• Body is constructed of lightweight fiberglass-reinforced plastic
• Blades are made of special tool steel; oil-hardened, interchangeable

Specifications

• Manufacturer Part Number: 12 62 180 SBA
• Material Type: Blades: special tool steel, oil-hardened
• Other Material Type: Body: fiberglass reinforced plastic
• Handle Type: Multi-component
• 1000V Insulated: No
• Tethered Enabled: false
• ESD Indicator: No
• Color: Black
• Nominal Length: 7 1/4"
• Tool Nominal Length: 7.25"
• Tool Length: 7.3"
• Tool Width: 3.8"
• Tool Height: 1.05"
• Tool Weight: 159 g (0.35 lb)
• Cutting Capacity - Cu and Al conductor: 14 AWG (solid) and 10 AWG (stranded)
• Stripping Capacity - mm2: 6.0 to 0.2
• Stripping Capacity - AWG: 10 to 24
• Spare Part: 12 69 21|12 69 23
• UPC: 843221031183
