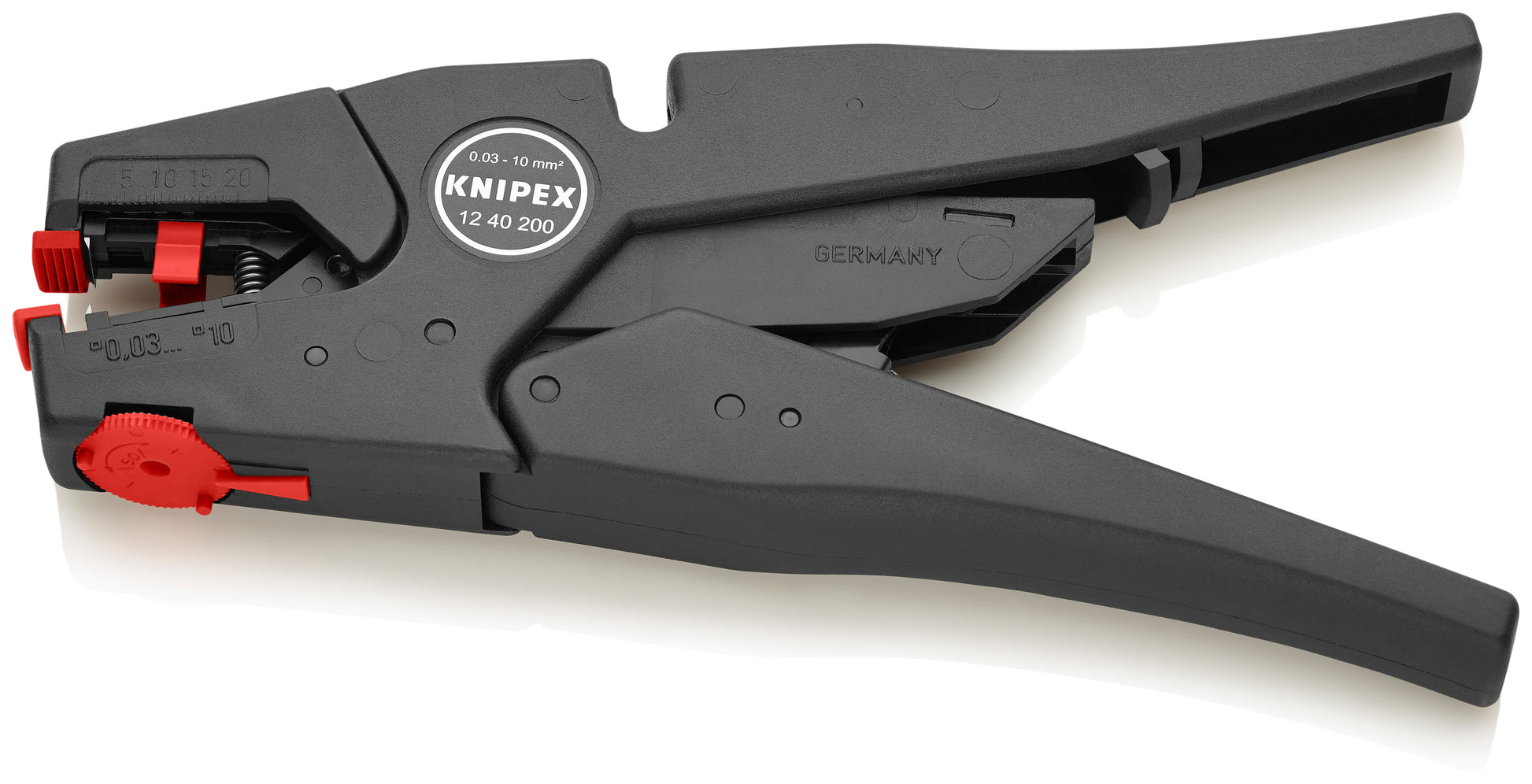

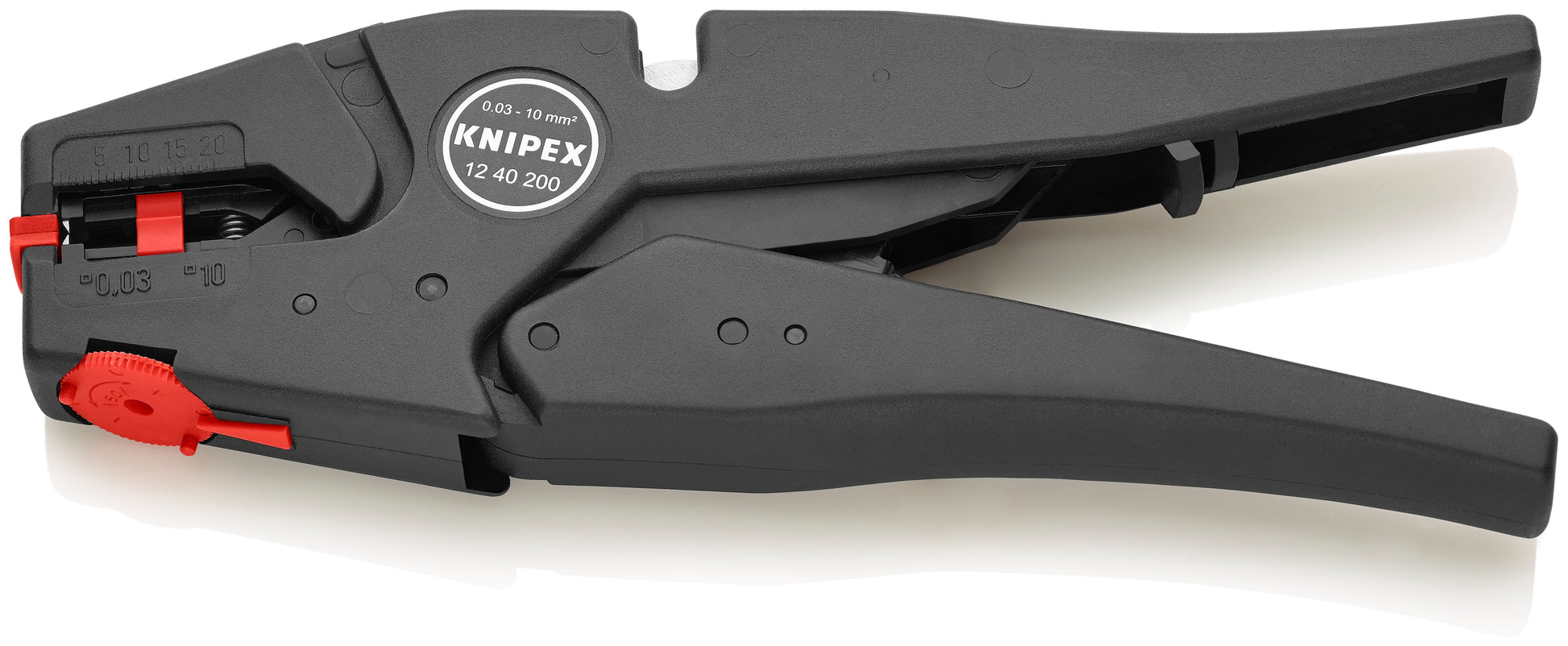

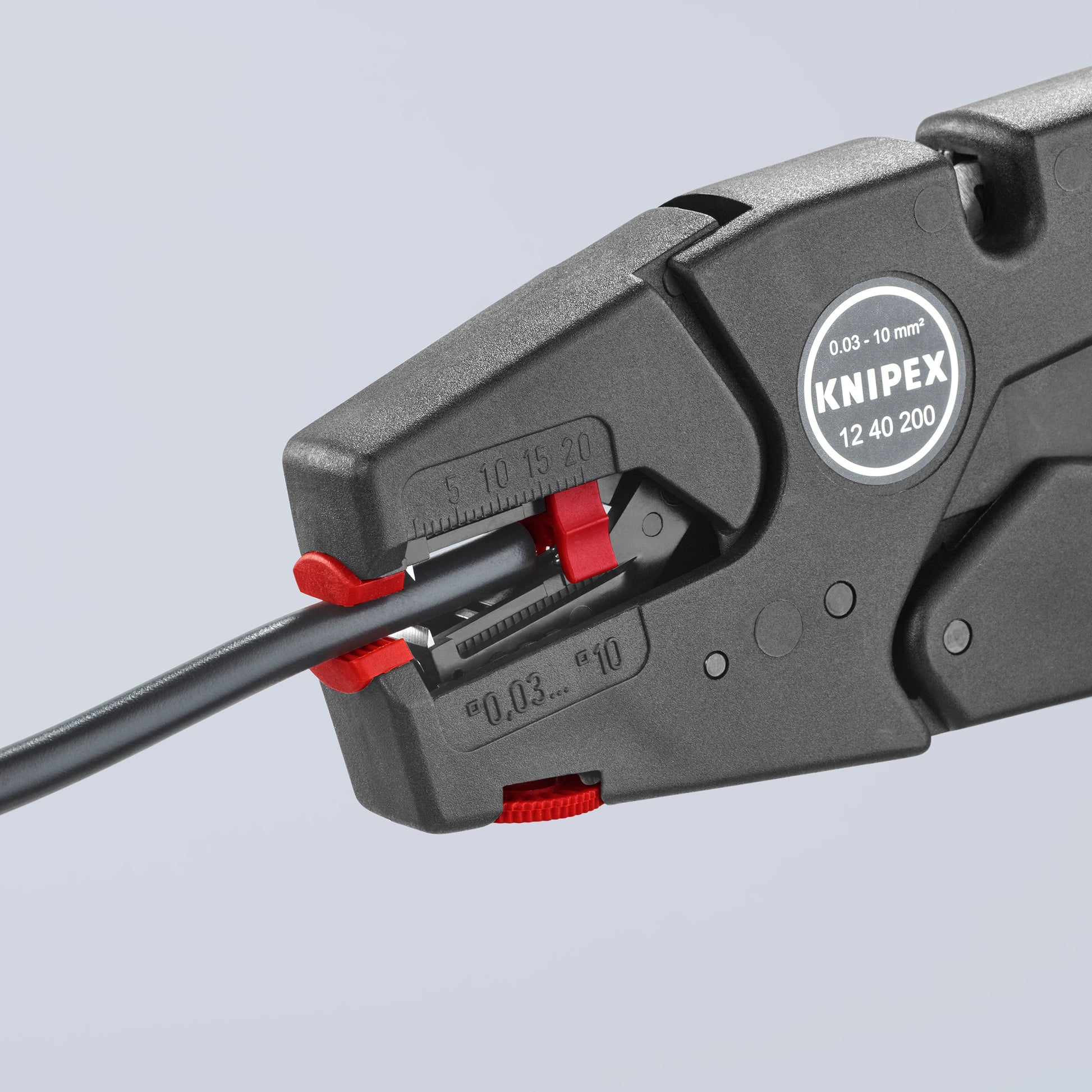

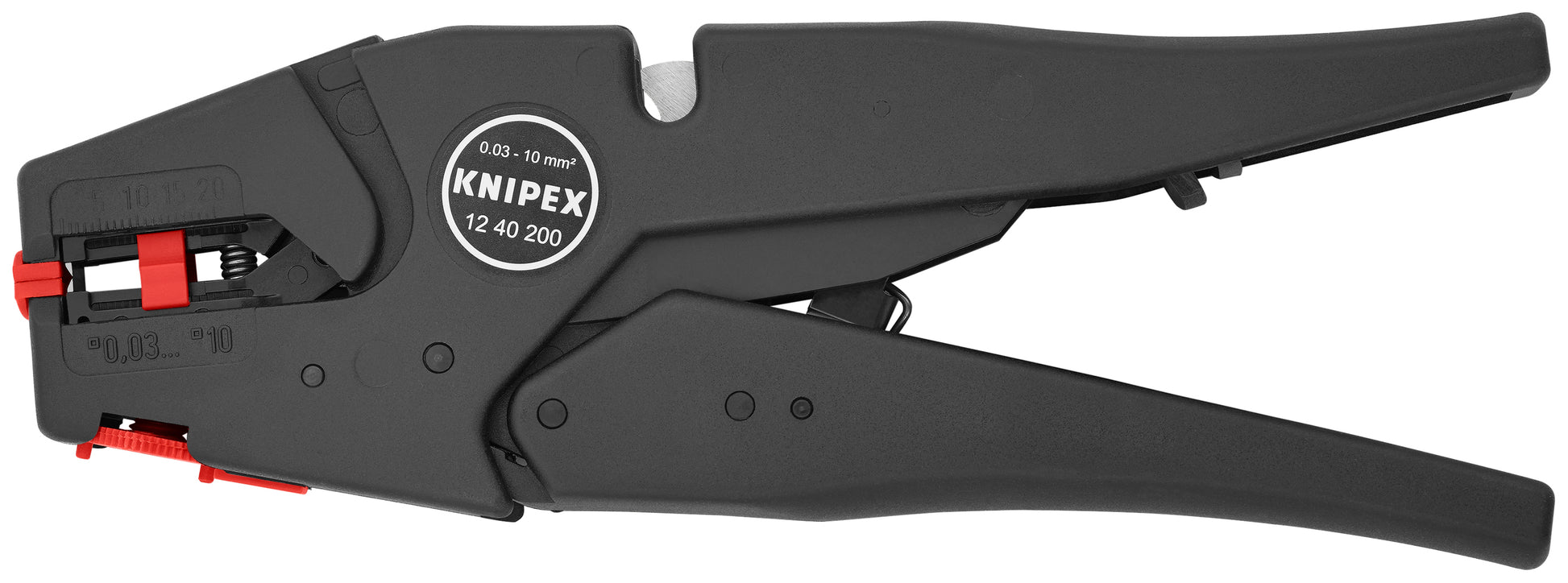

Knipex 12 40 200 EvoStrip Automatic Wire Stripper 8-32 AWG

For single, multiple and fine stranded conductors with plastic or rubber insulation; especially useful with THHN coated wire

Features

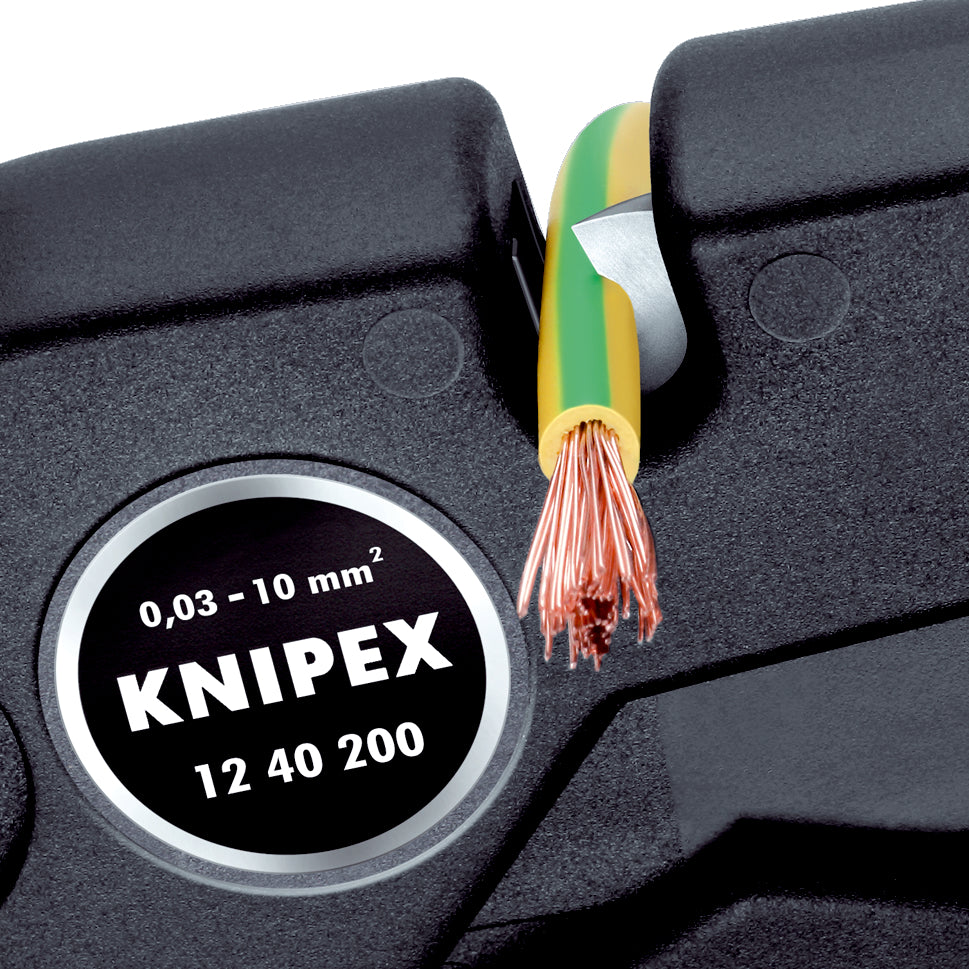

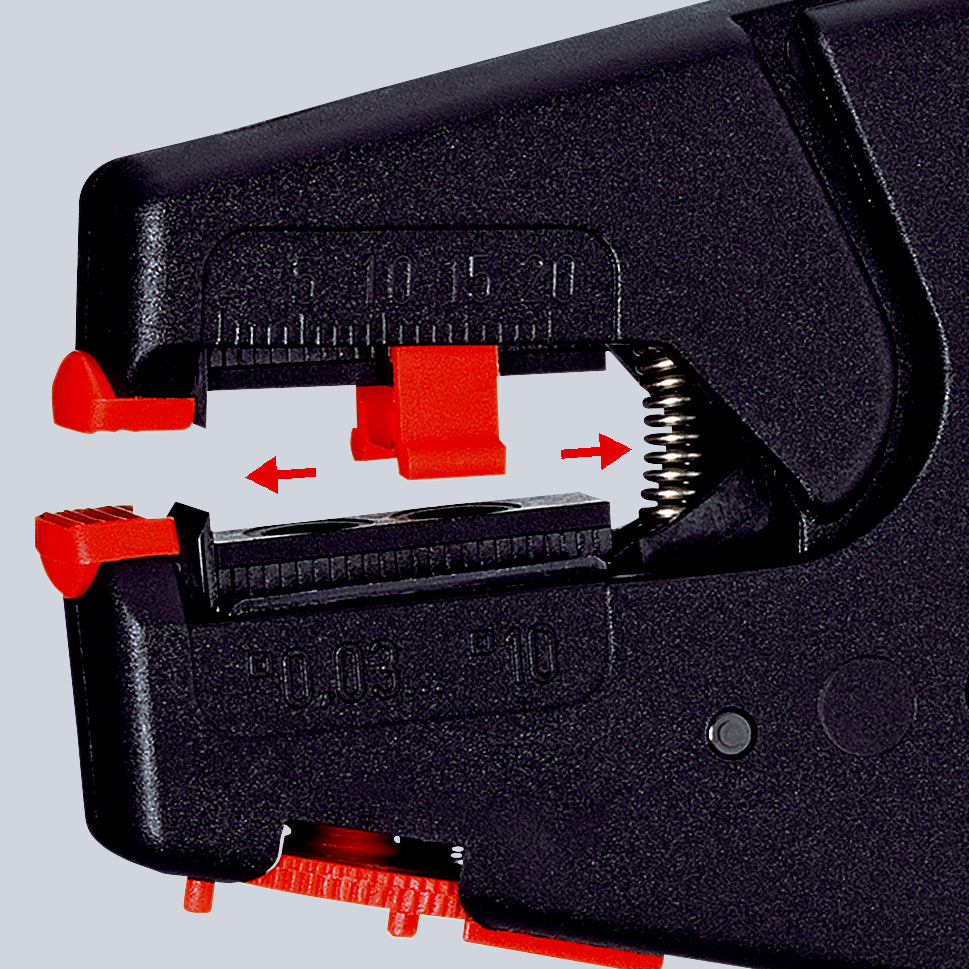

• Adapts automatically to the respective cable diameter preventing damage to the conductor
• Cutting depth can be adjusted for different insulation by turning the red wheel
• Suitable for 32 - 8 AWG

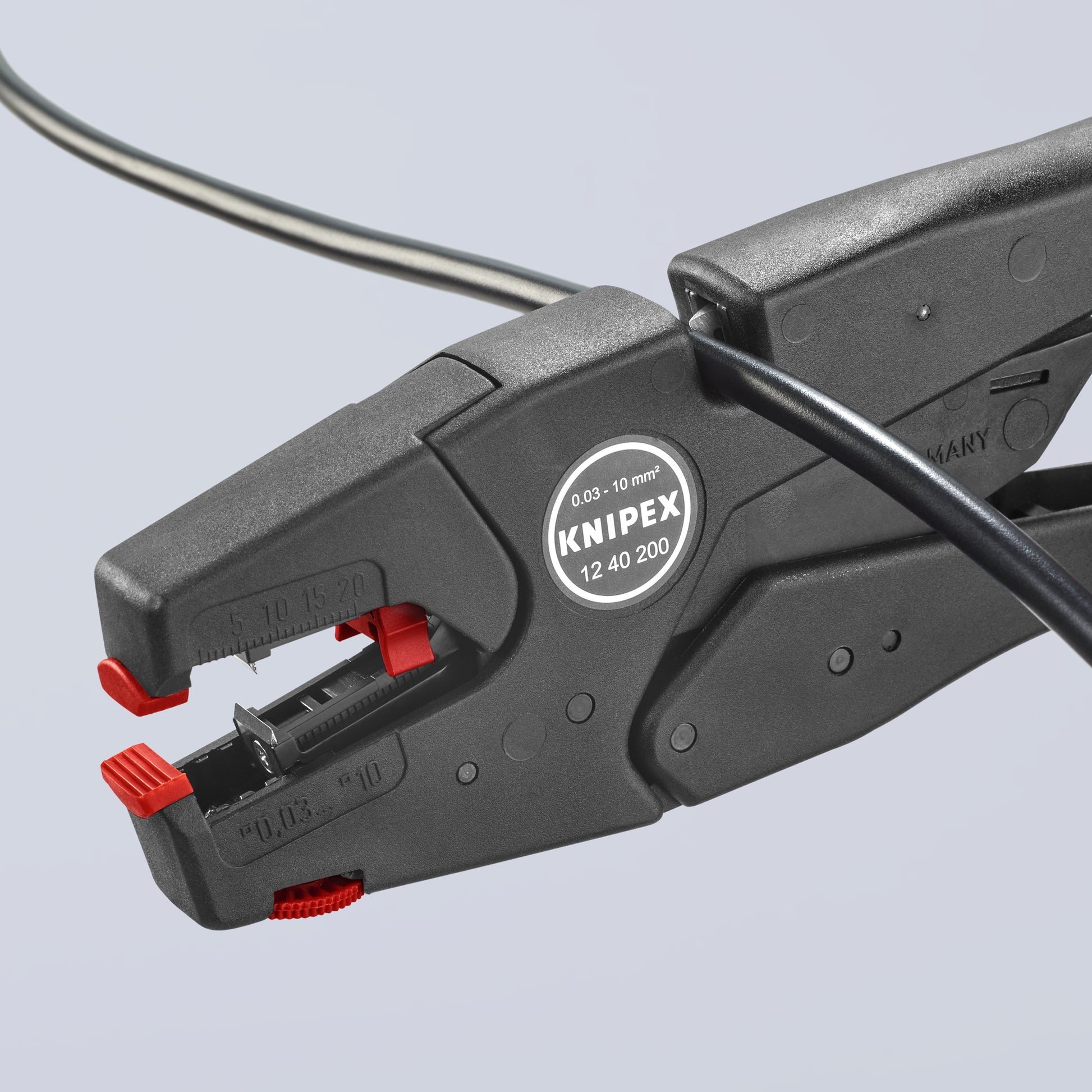

• Includes wire cutter for copper and aluminum wires, multi-stranded up to 8 AWG (10 mm²) and single stranded up to 10 AWG (6 mm²)
• Smooth operating mechanism
• Replacement blade and plastic clamping jaws

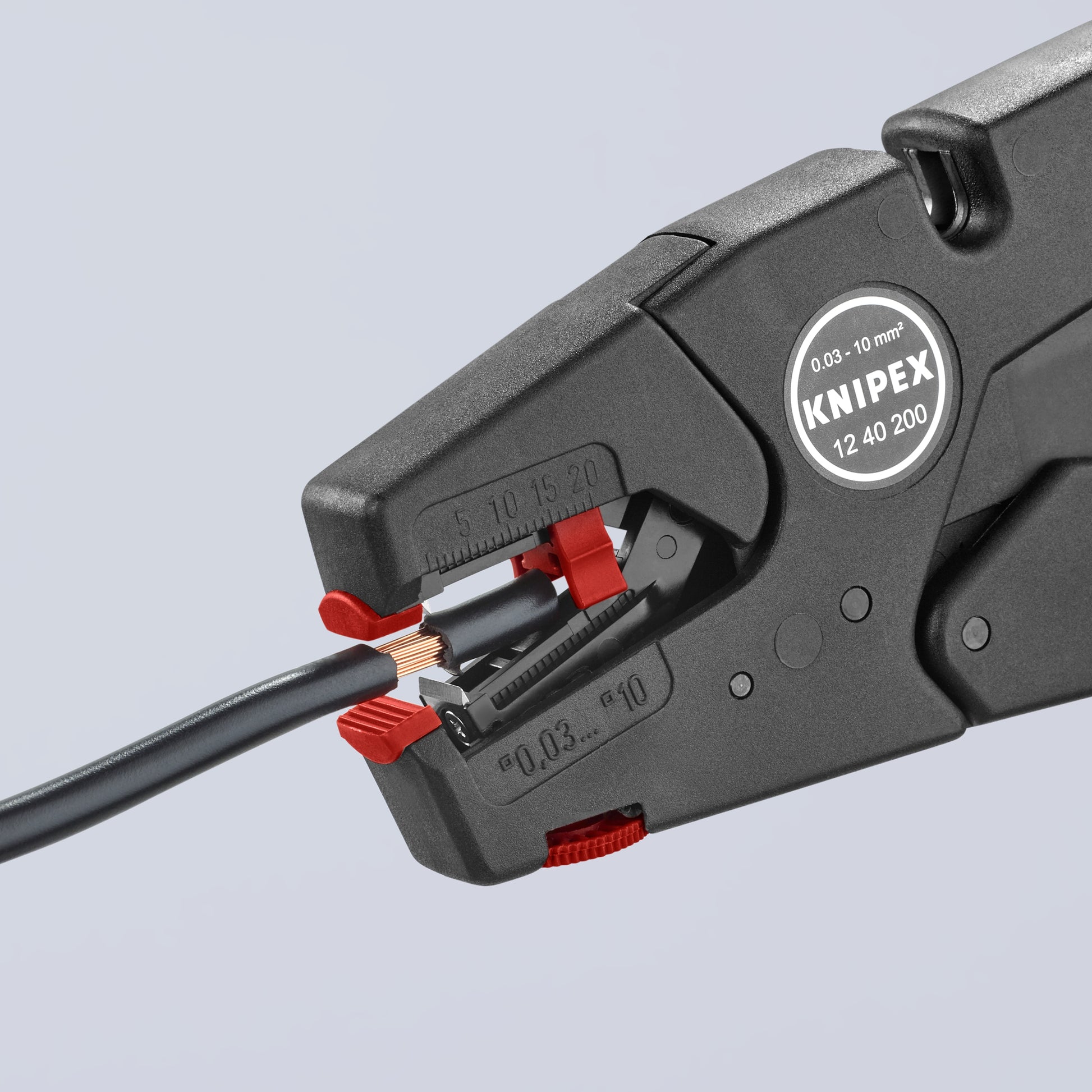

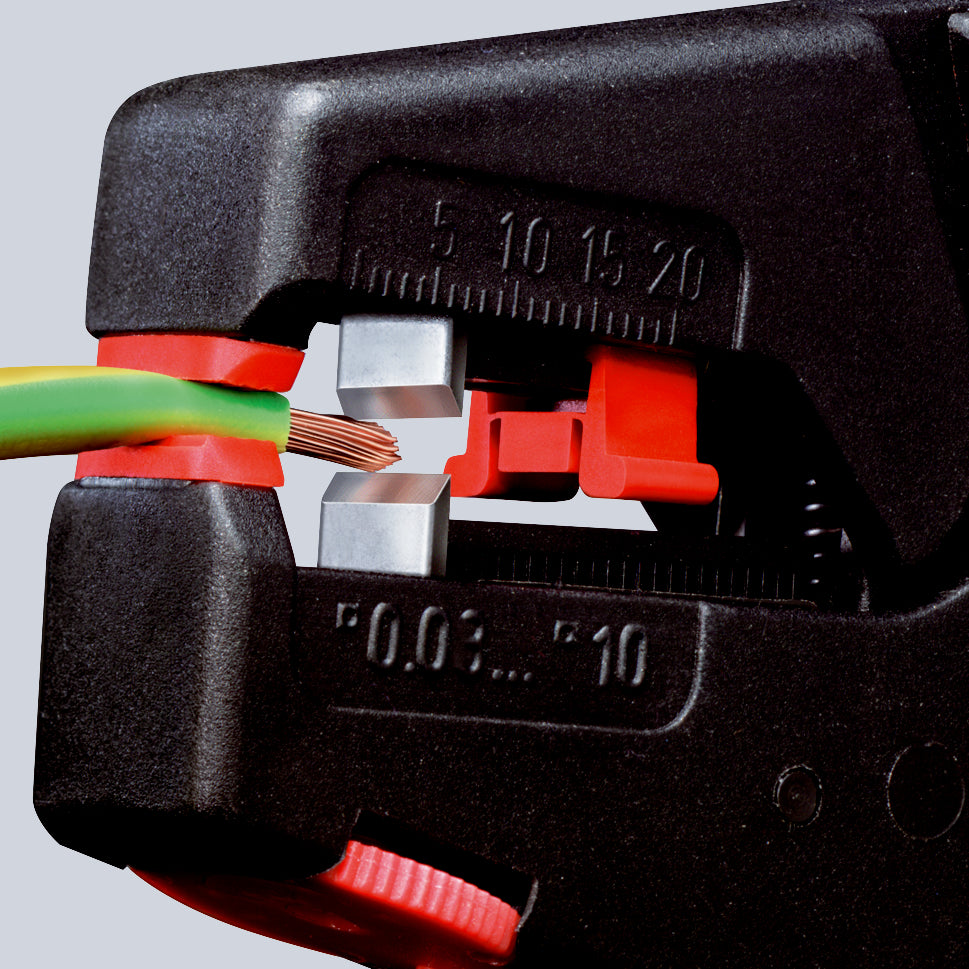

• Built-in adjustable length stop when cutting the same stripping lengths during repetitive work
• Body is made of lightweight fiberglass-reinforced plastic
• Blade is made of special tool steel, oil-hardened
• Replaceable pair of blades part number 12 49 01
• Replacement clamping jaws part number 12 49 02
• Replacement length stop part number 12 49 03

Specifications

• Manufacturer Part Number: 12 40 200
• Material Type: Blades: special tool steel, oil-hardened
• Other Material Type: Body: fiberglass reinforced plastic
• Handle Type: Bare plastic
• 1000V Insulated: No
• Tethered Enabled: false
• Color: Black
• Nominal Length: 8"
• Tool Nominal Length: 8"
• Tool Length: 7.65"
• Tool Width: 3.85"
• Tool Height: 0.85"
• Tool Weight: 193 g (0.425 lb)
• Stripping Capacity: 32 to 8 AWG (0.03 to 10.0 mm2)
• Stripping Capacity - mm2: 0.03 to 10.0
• Stripping Capacity - AWG: 32 to 8
• Spare Part: 12 49 01|12 49 02|12 49 03
• Set Part Number: 97 90 10|97 90 16
• UPC: 843221003944
