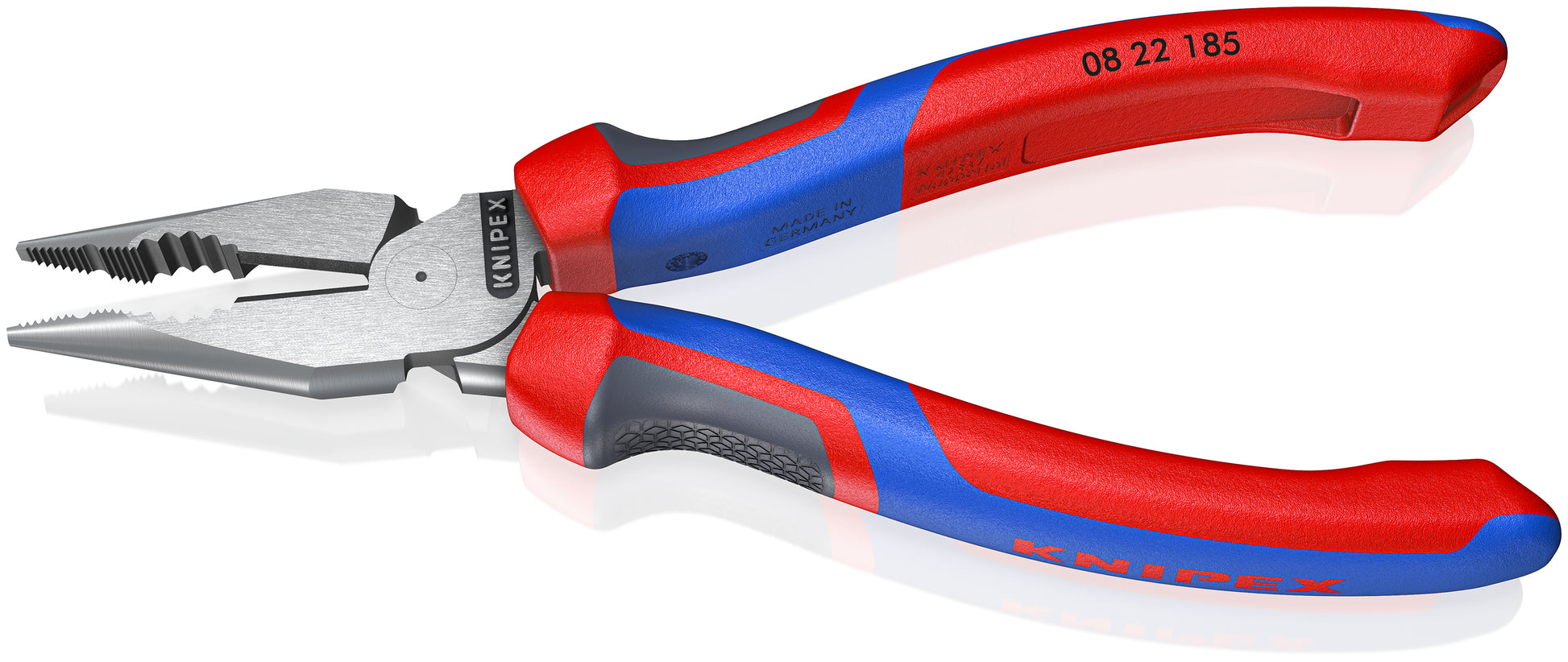

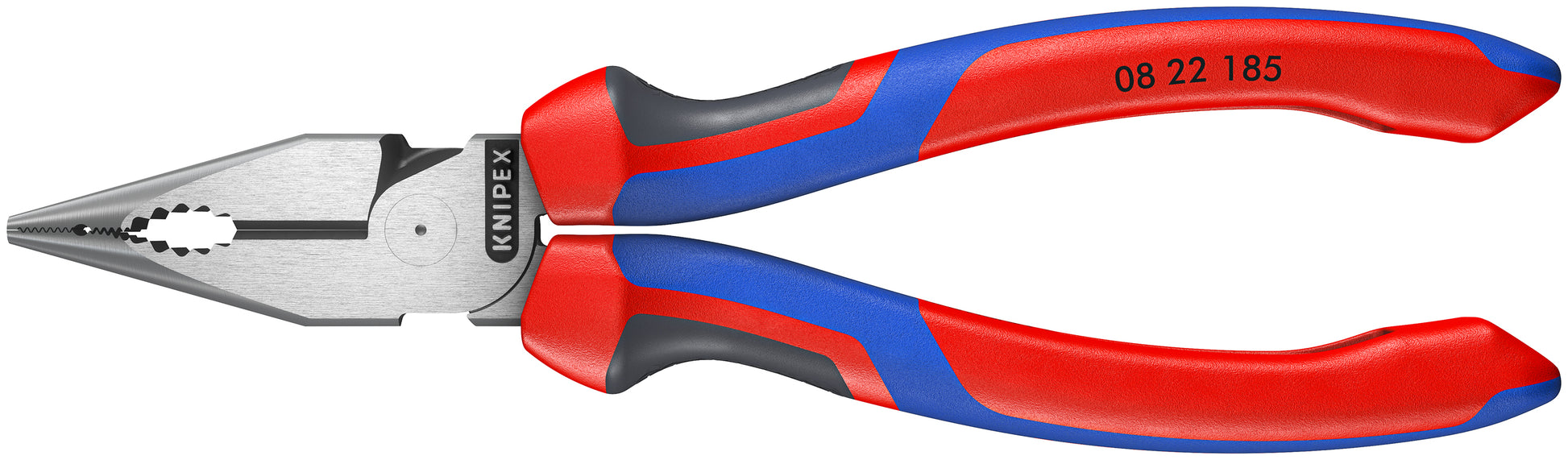

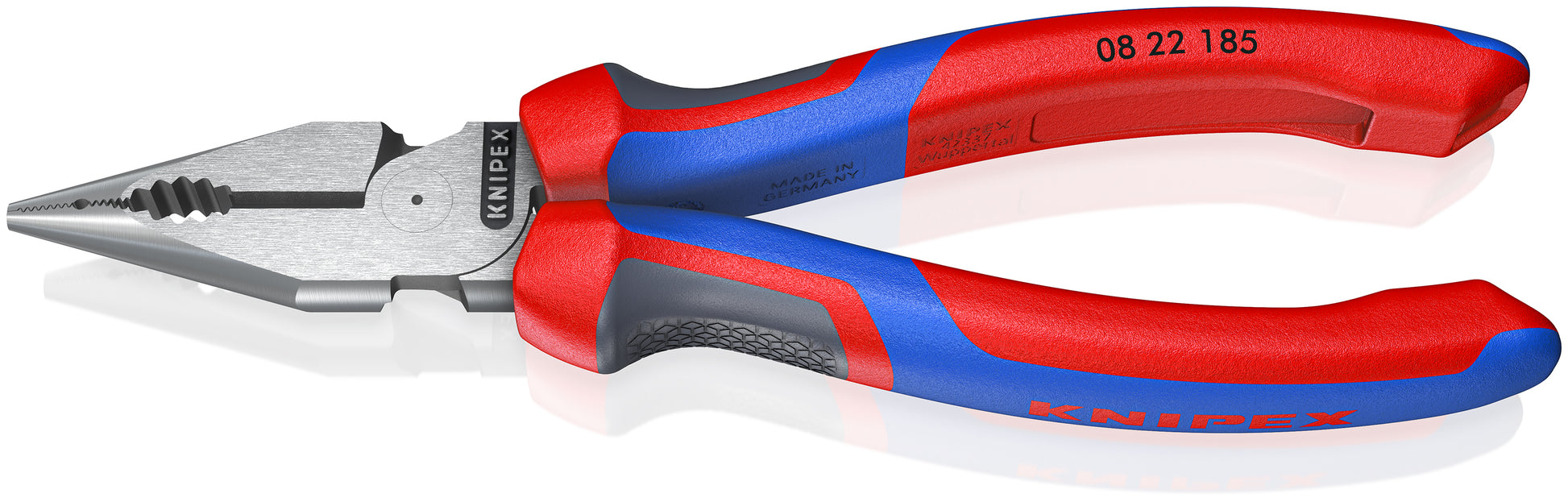

Knipex 08 22 185 SBA Needle-Nose Combination Pliers

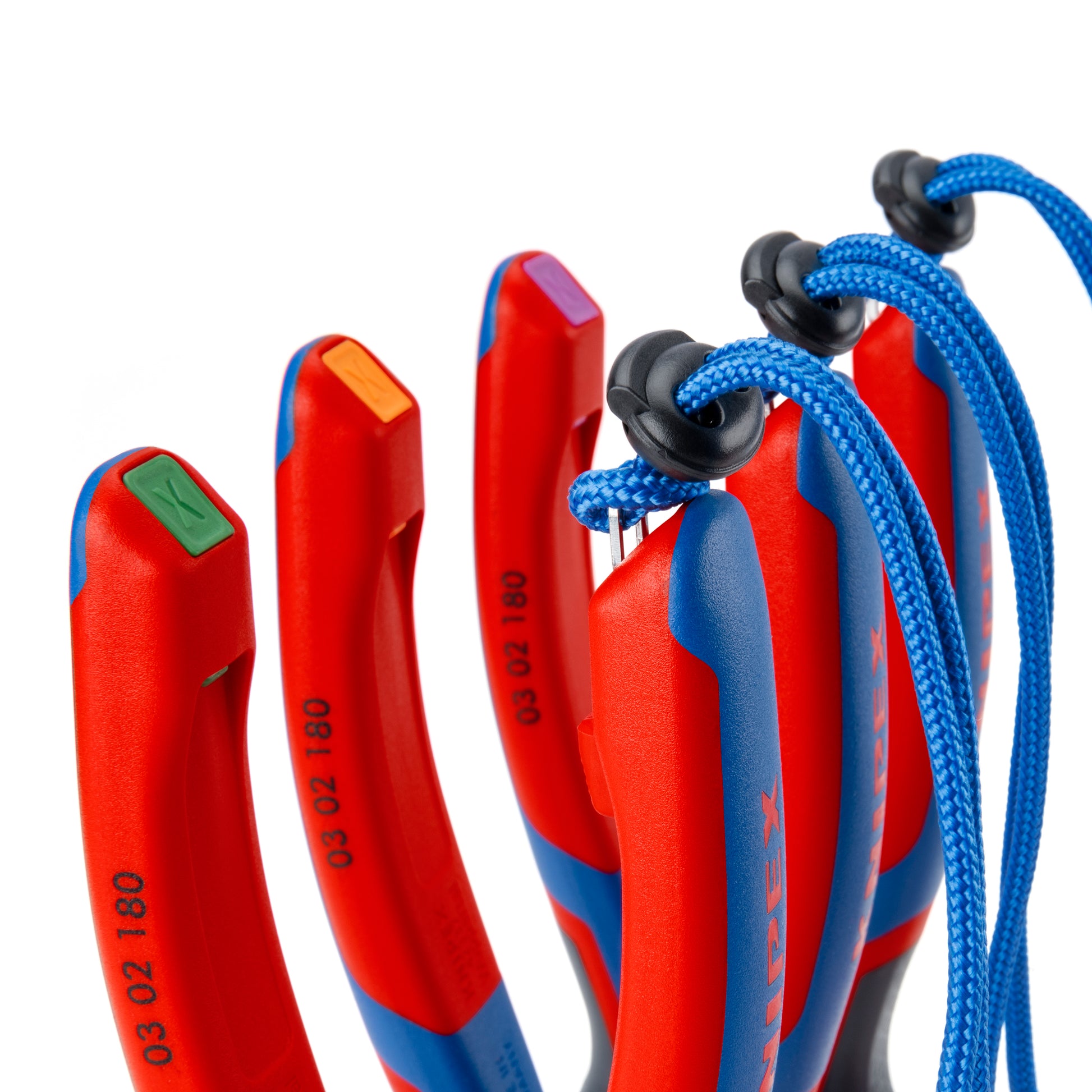

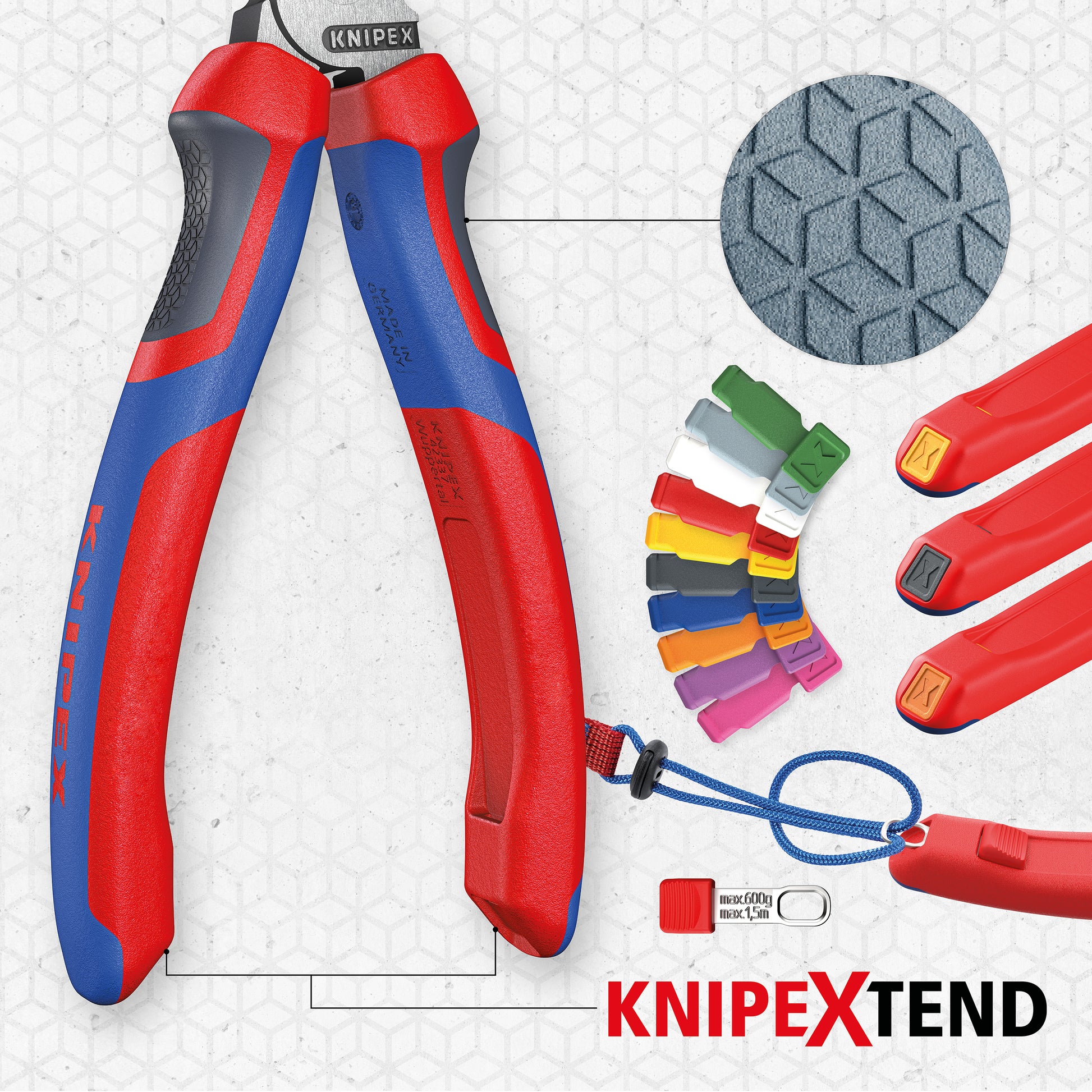

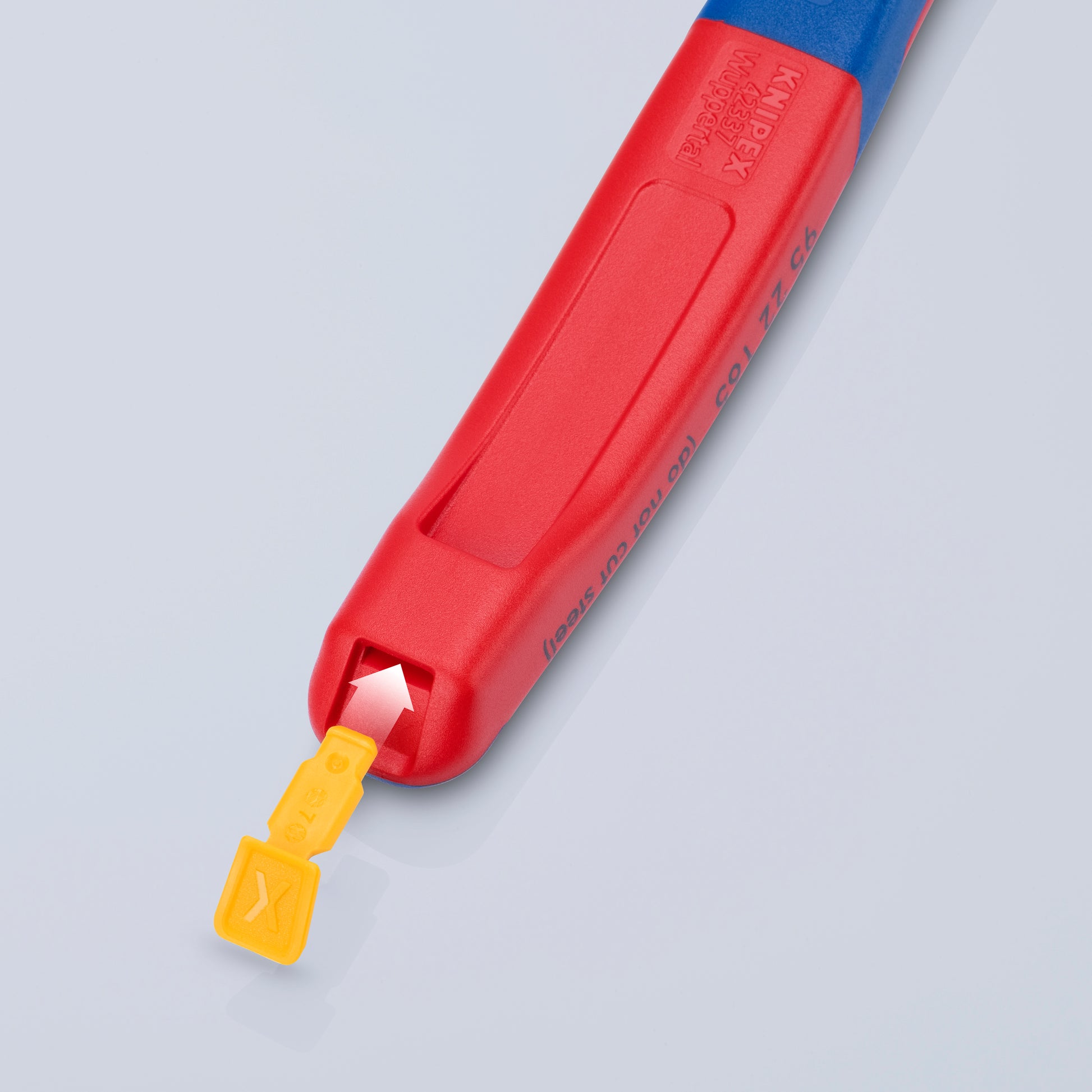

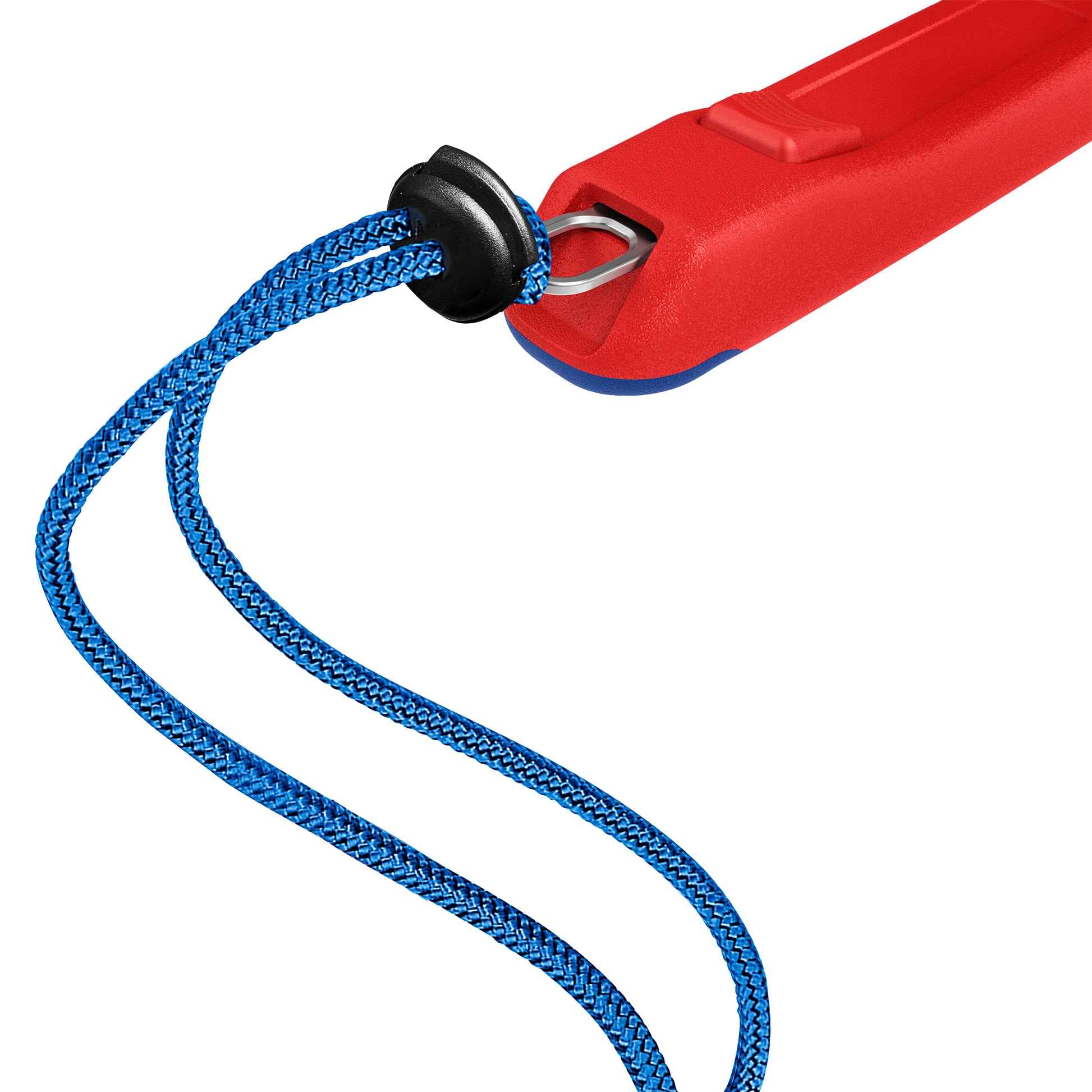

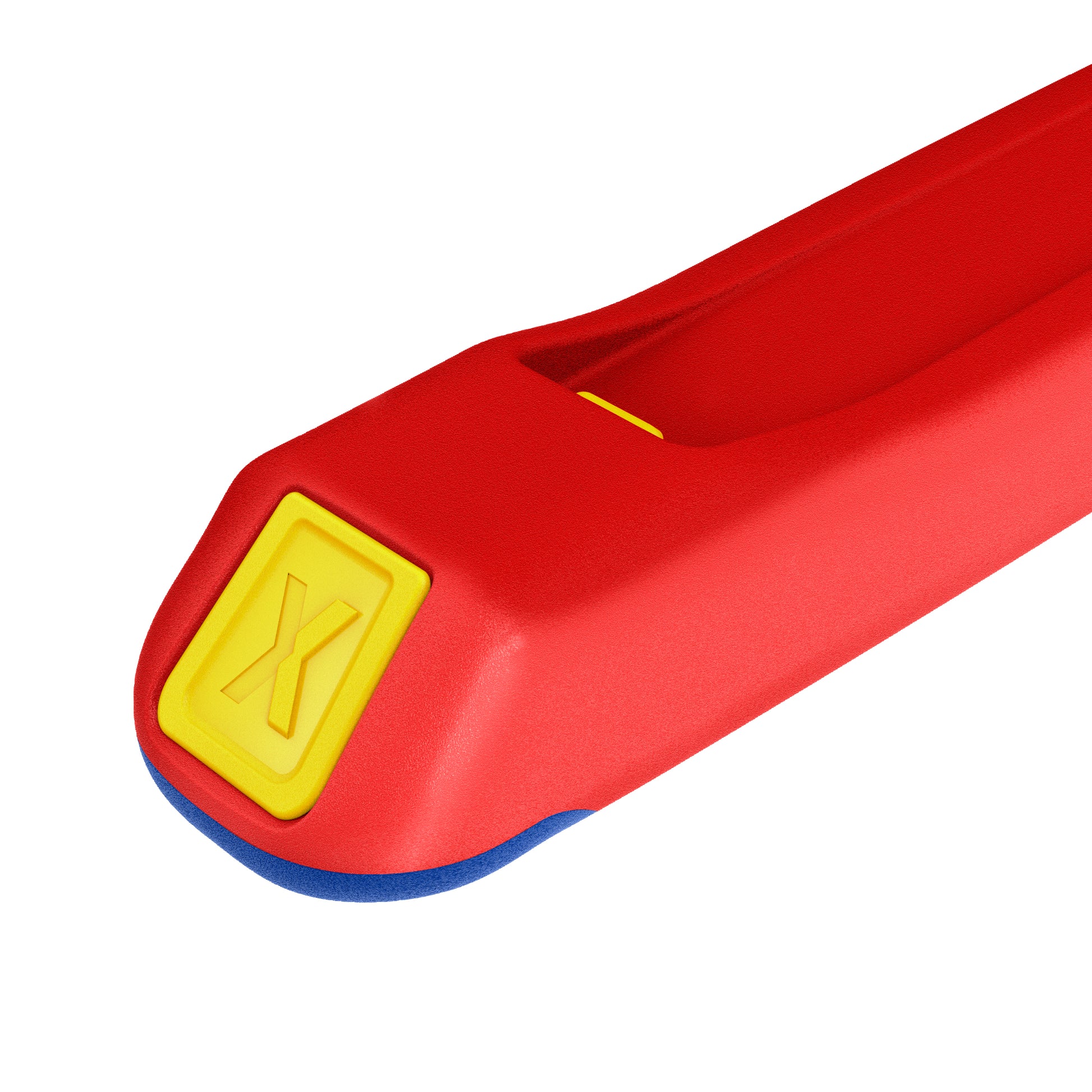

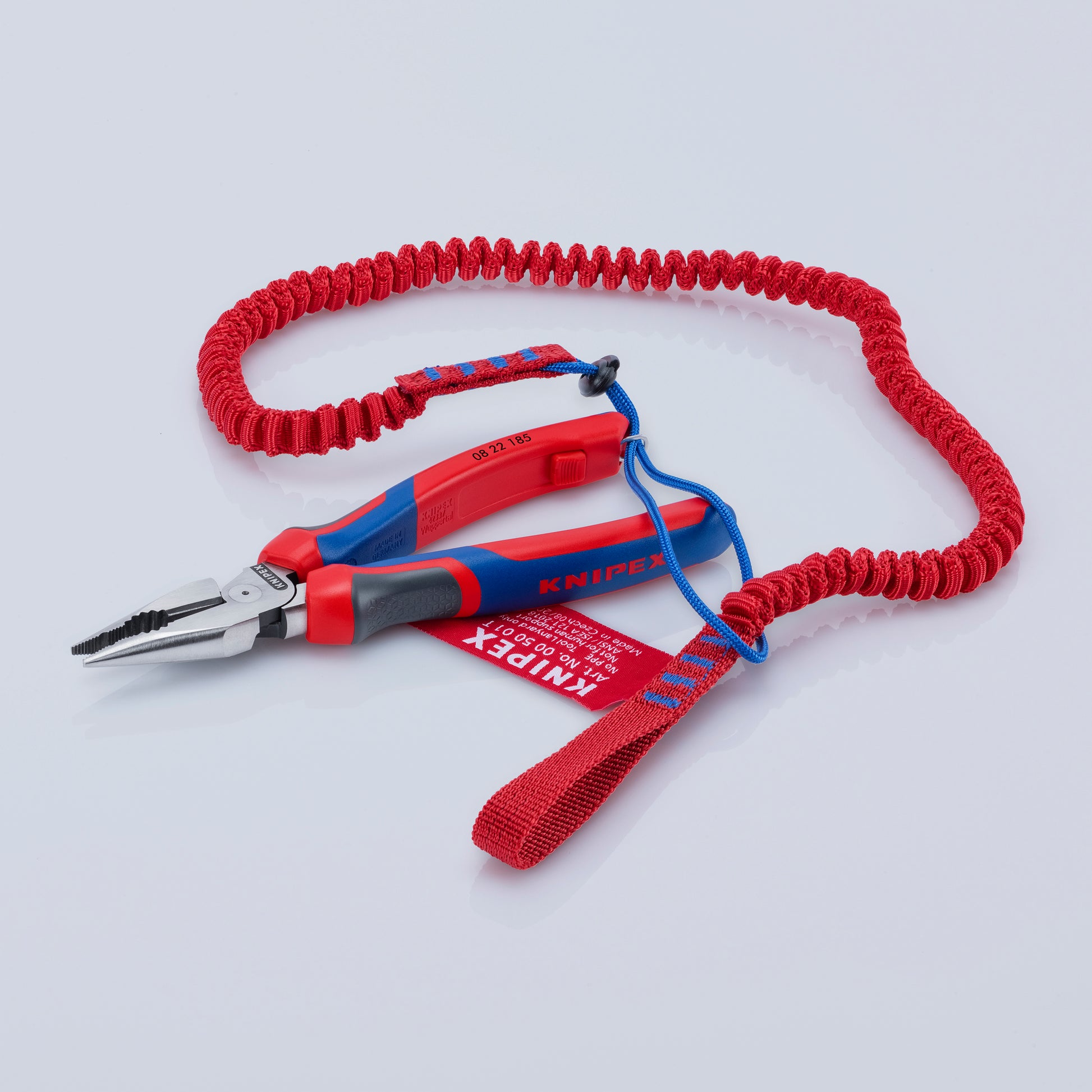

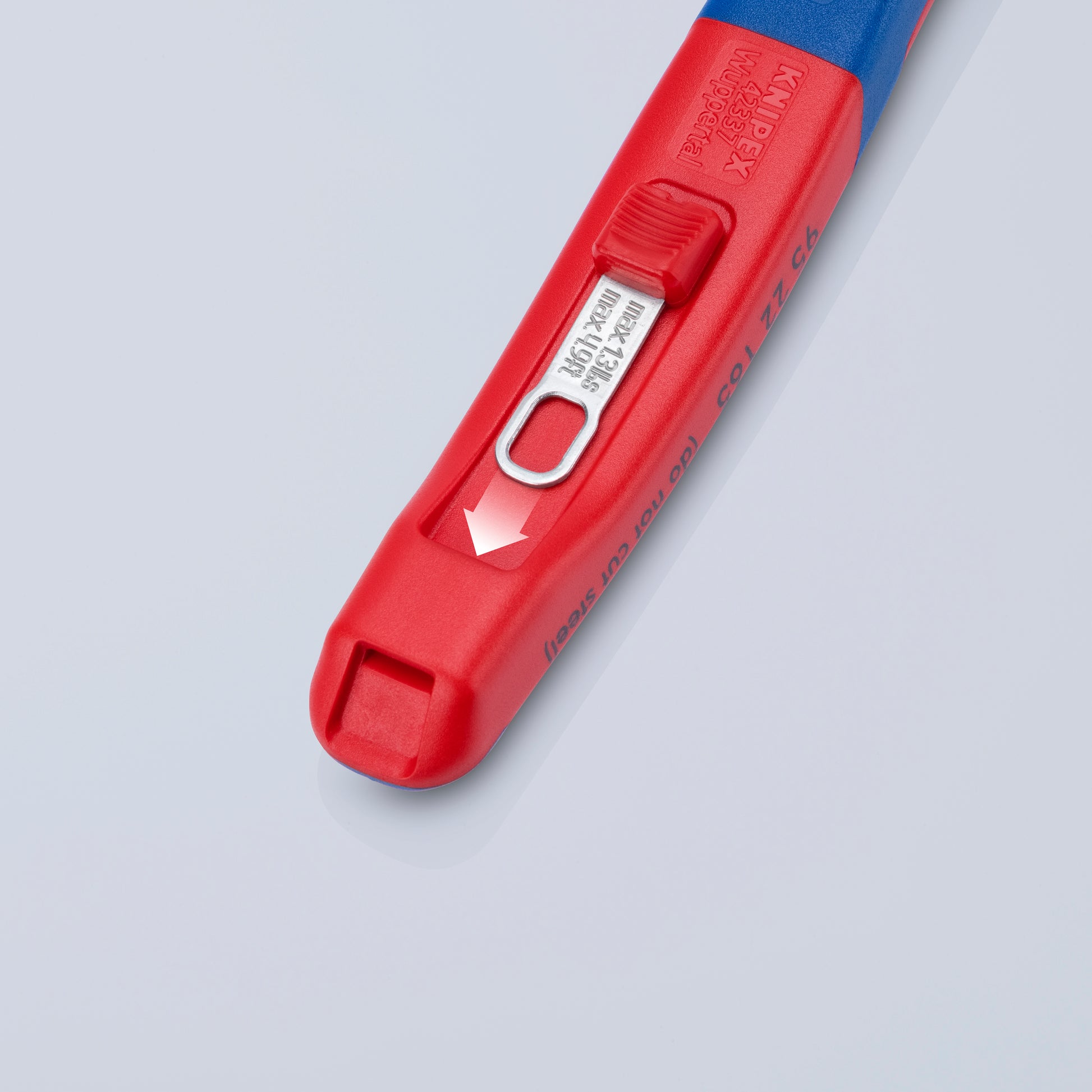

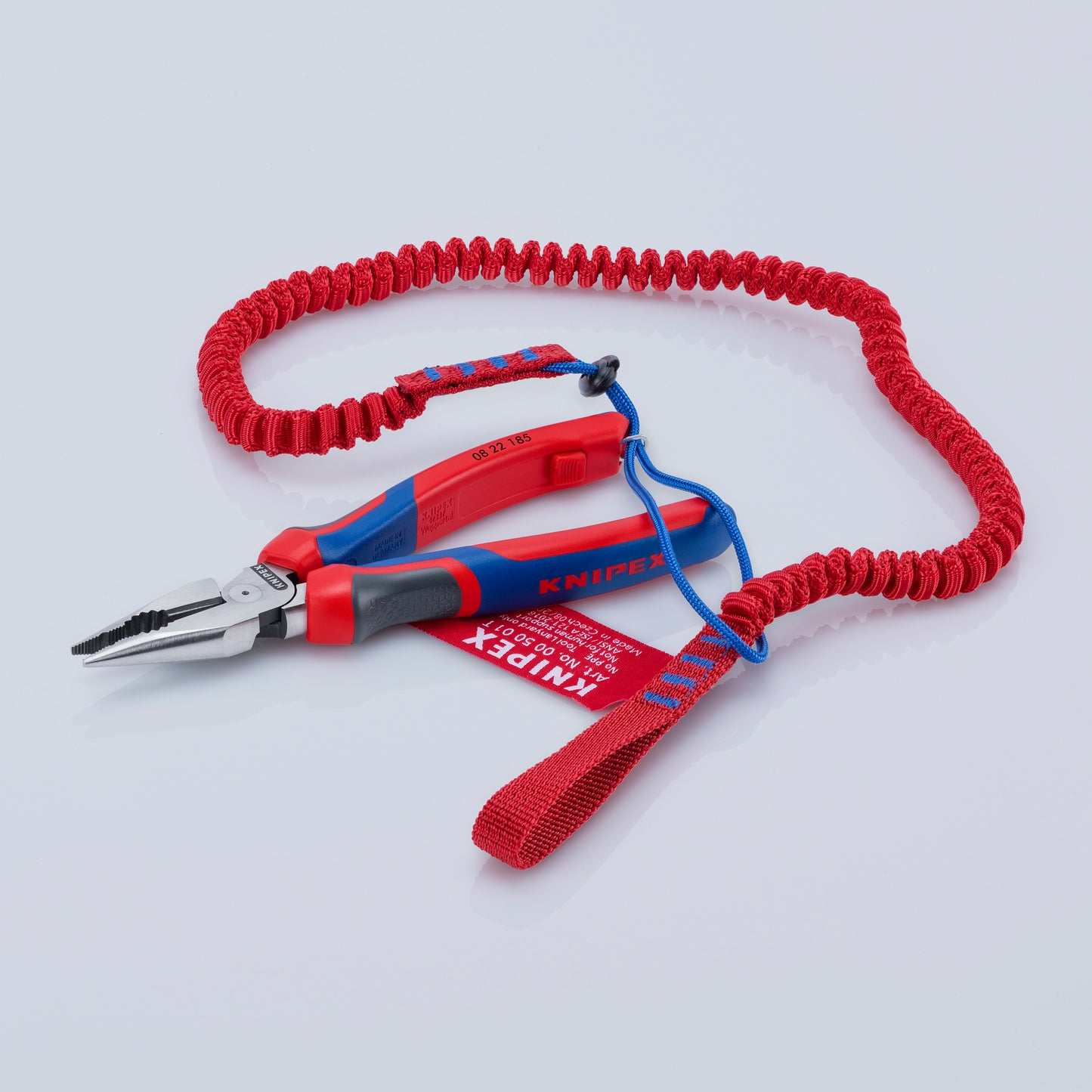

KNIPEXTEND comfort handles make it easy to identify your tools and utilize the KNIPEX TetheredTool System lanyards and adapters by simply adding KNIPEXTEND ColorCoded Clips and TetheredTool Clips (KNIPEXTEND accessories sold separately)

Features

• The very popular needle nose combination pliers now available in 7 1/4" length
• For use when working in confined areas thanks to slim head design and pointed jaws (anti-twist)

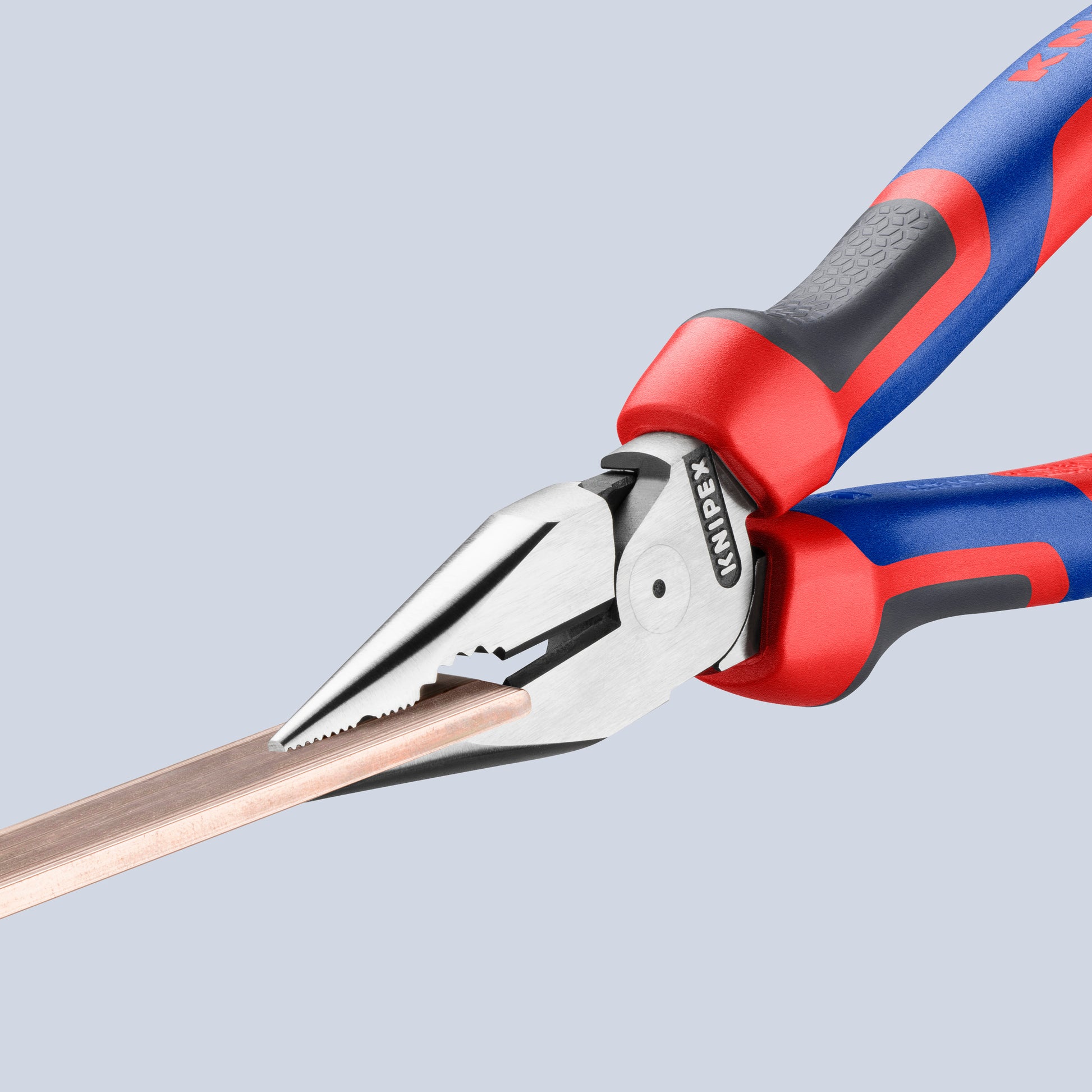

• Gripping surfaces with special convex contour provides a stable 3-point contact for secure gripping of flat parts

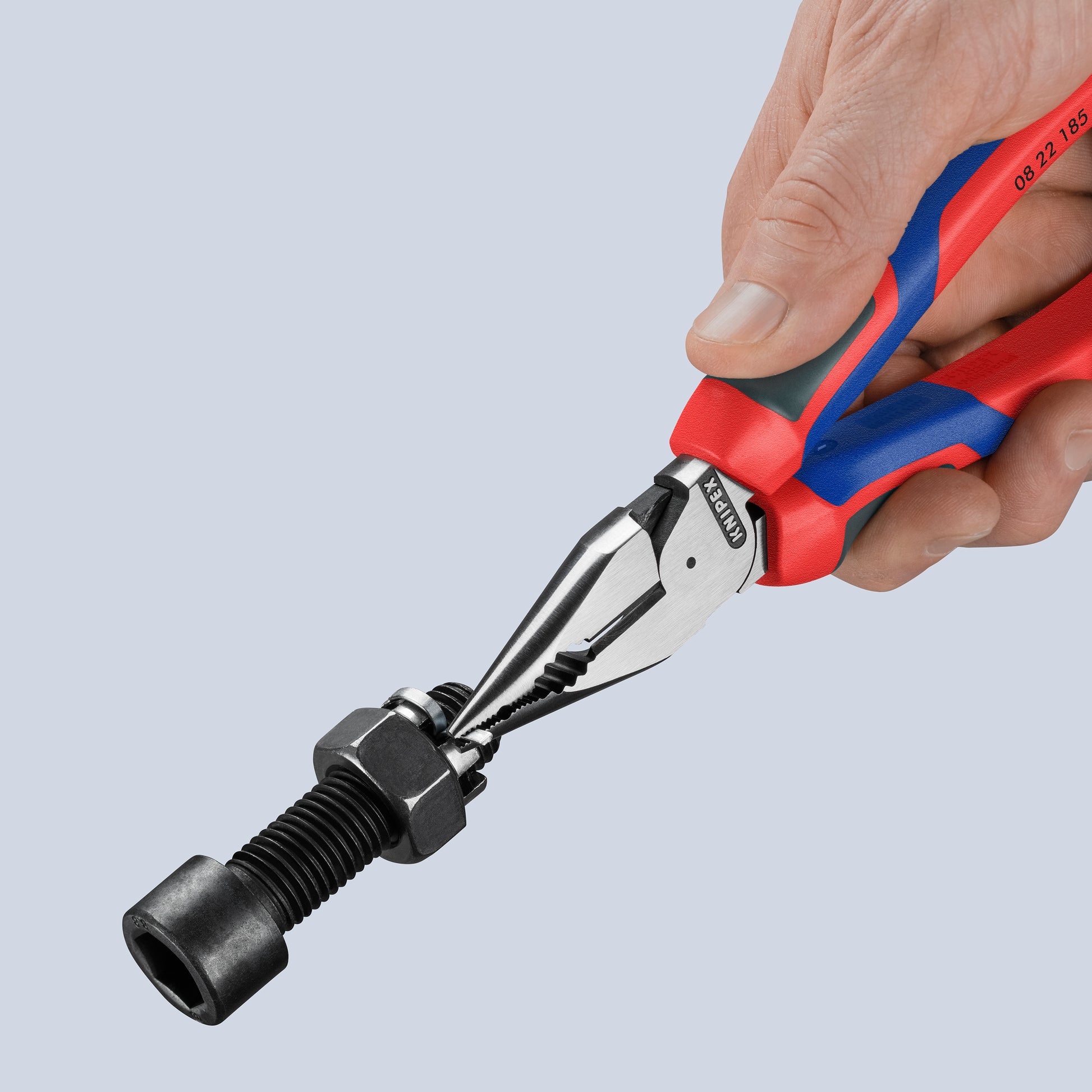

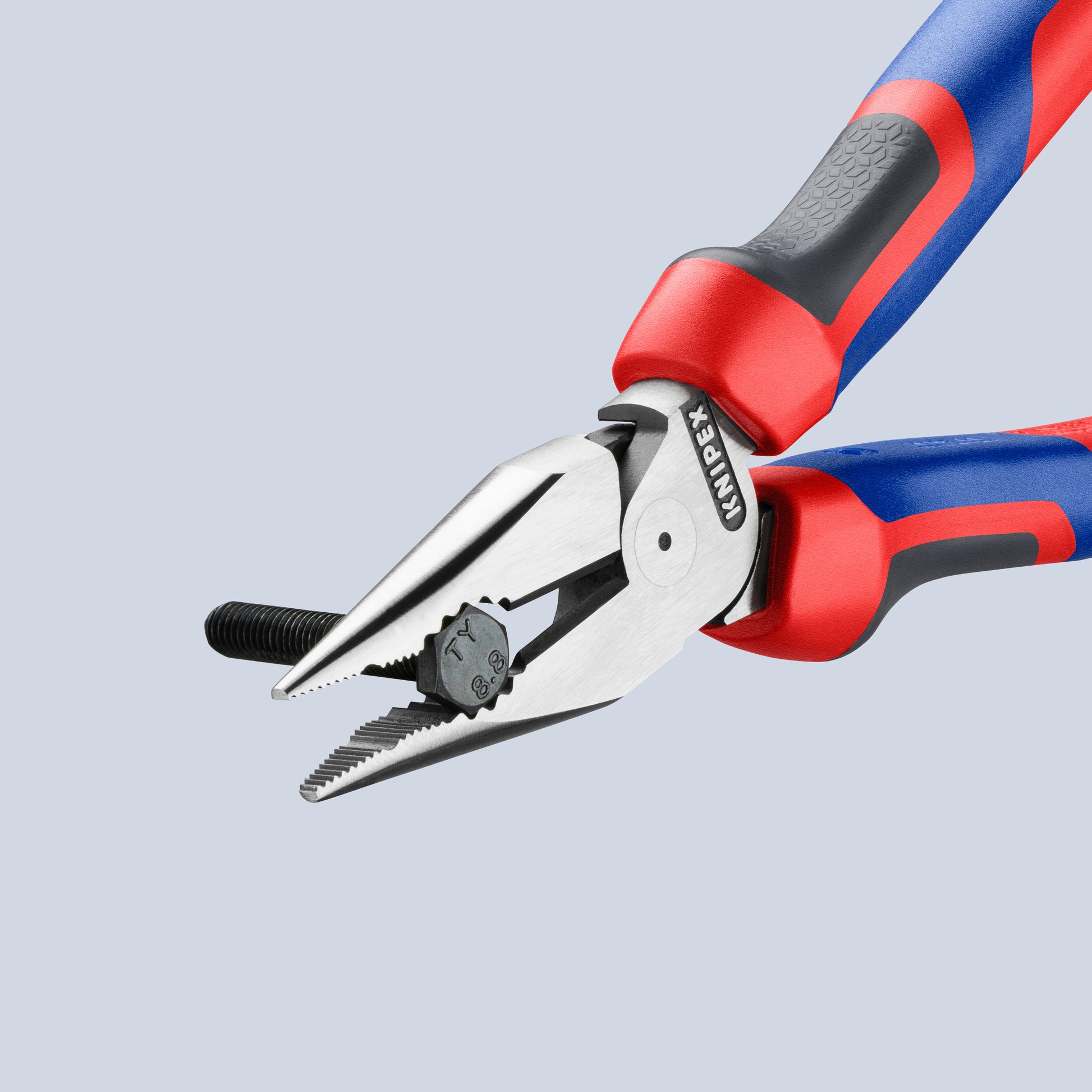

• The asymmetry of the pipe gripping area allows round parts as well as hexagonal profiles to be gripped, held and turned powerfully without slipping

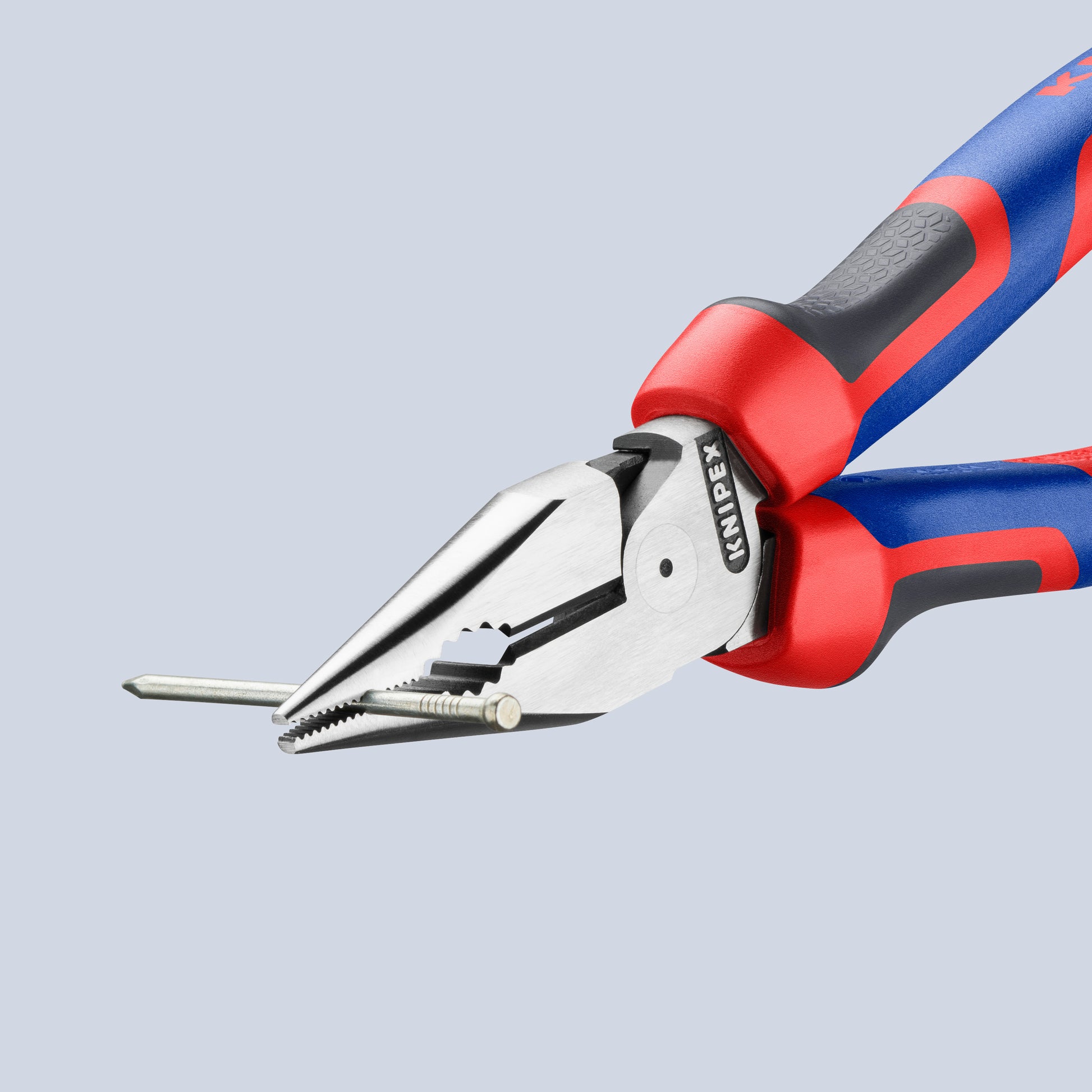

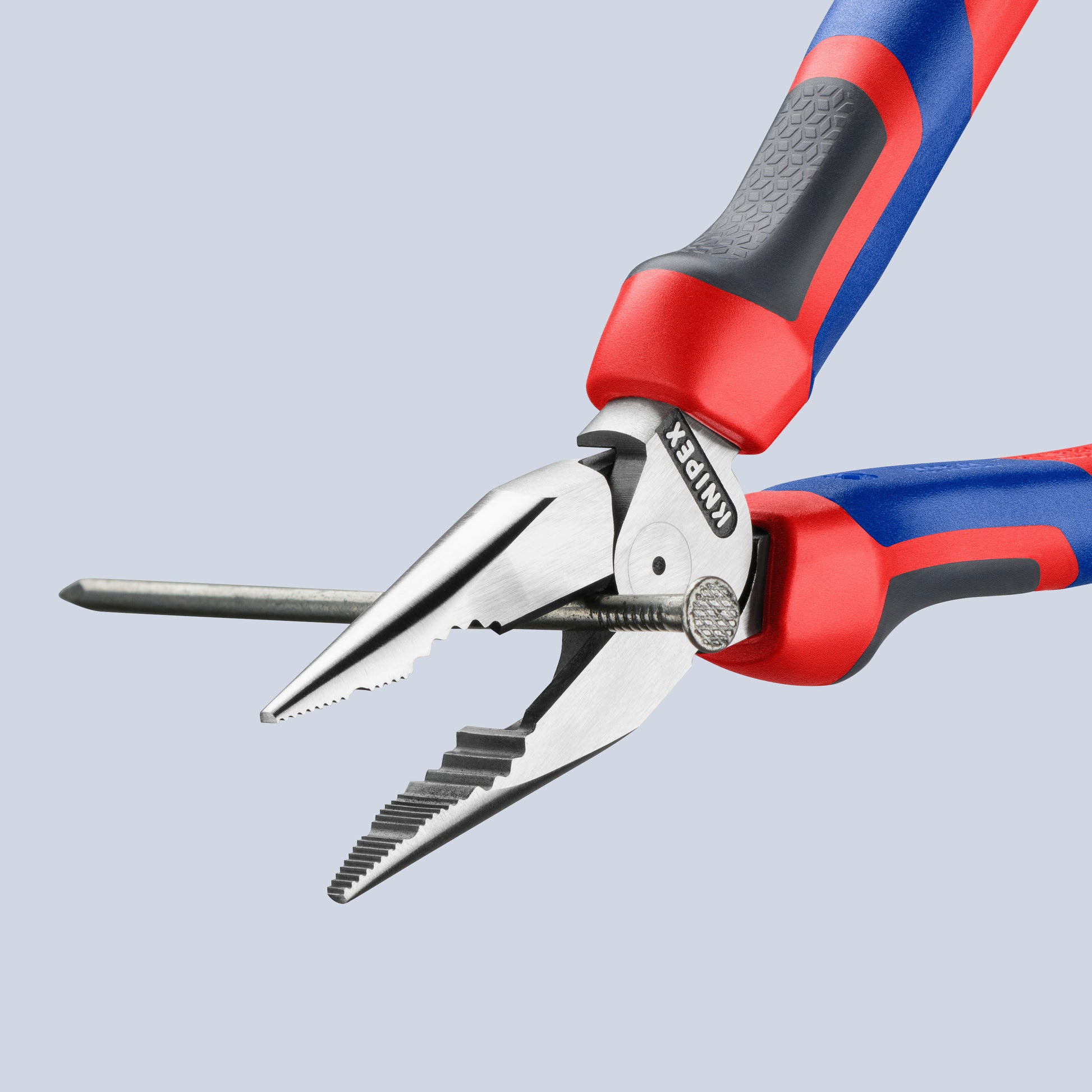

• Milled groove in the gripping area permits small parts such as nails, pins and bolts to be held and pulled

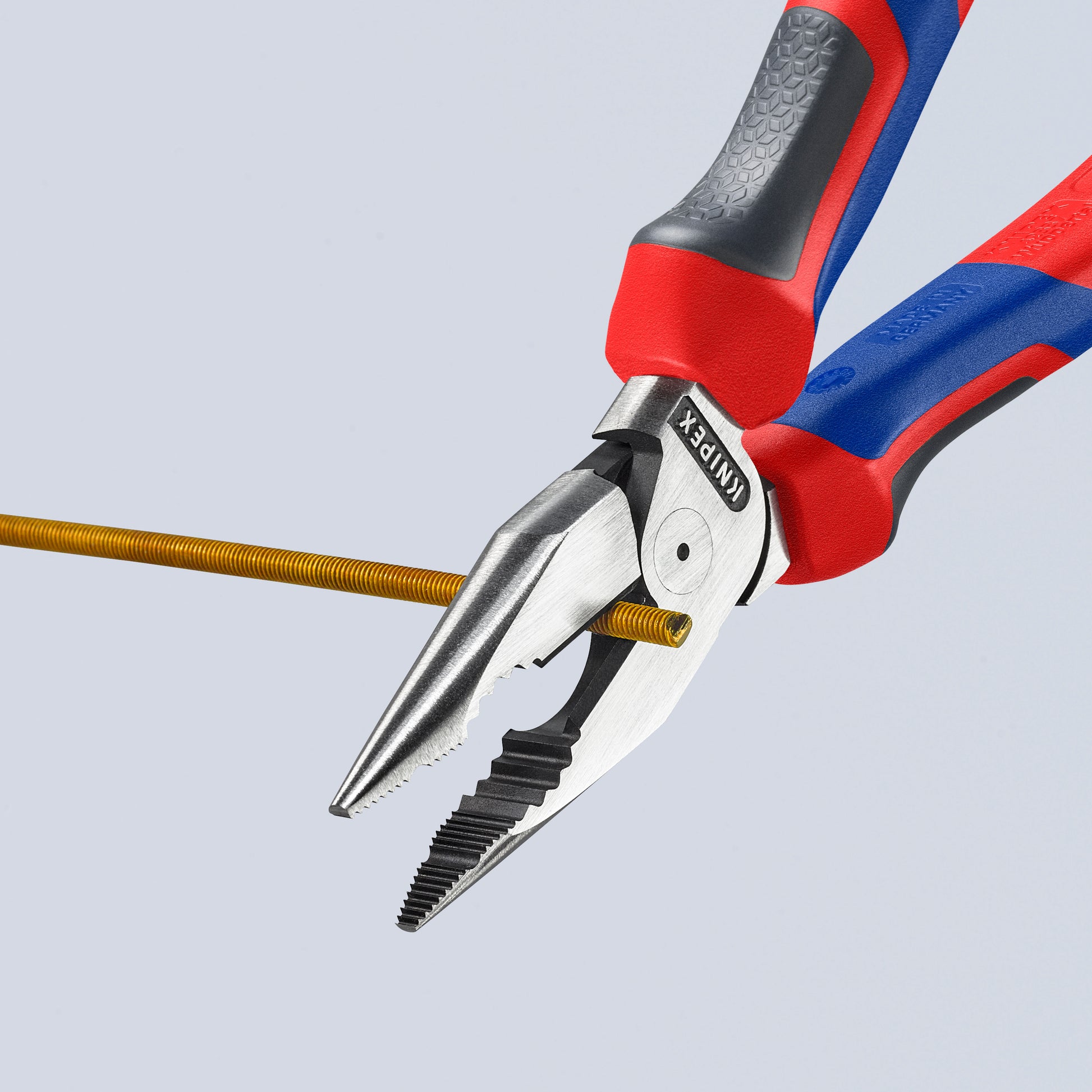

• Cutting edges induction-hardened cutting edge hardness (approx. 64 HRC) for long service life
• High-grade special tool steel; forged, multi stage oil-hardened
• HANDLES HAVE RECENTLY UNDERGONE A REDESIGN, SO THE AVAILABILITY OF THE NEW DESIGNS AT DISTRIBUTORS WILL DEPEND ON THEIR CURRENT INVENTORY LEVELS

Specifications

• Manufacturer Part Number: 08 22 185 SBA
• Material Type: High grade special tool steel, forged, multi-stage oil-hardened
• Handle Type: KNIPEXTEND Comfort Handle
• Gripping Surface: Serrated
• Surface Finish: Polished
• Other Surface Finish: Black atramentized
• 1000V Insulated: No
• Spring Loaded: No
• Tethered Enabled: false
• ESD Indicator: No
• Color: Blue|Gray|Red
• Nominal Length: 7 1/4"
• Tool Nominal Length: 7.25"
• Tool Length: 7.4"
• Tool Width: 1.96"
• Tool Height: 0.43"
• Tool Weight: 213 g (0.47 lb)
• Joint Type: Rivet
• Jaw Length: 1 13/16"
• Jaw Thickness: 25/64"
• Tip Thickness: 5/32"
• Cutting Edge Shape: Bevel
• Cutting Edge HRC: Approx. 64 HRC
• Cutting Capacity - Medium Hard Wire (Nail): 5/32"
• Cutting Capacity - Hard Wire (Steel Wire): 1/8"
• Cutting Capacity - Cu and Al conductor: 1/2"
• Blade Length: 5/8"
• Accessory Part Number: 00 63 06TCR SBA|00 61 10 CA SBA|00 61 10 CR SBA|00 61 10 CB SBA|00 61 10 CY SBA|00 61 10 CO SBA|00 61 10 CG SBA|00 61 10 CV SBA|00 61 10 CM SBA|00 61 10 CS SBA|00 61 10 CW SBA|00 62 10 TR SBA|00 61 10 01 SBA|00 61 10 02 SBA
• UPC: 843221029272
